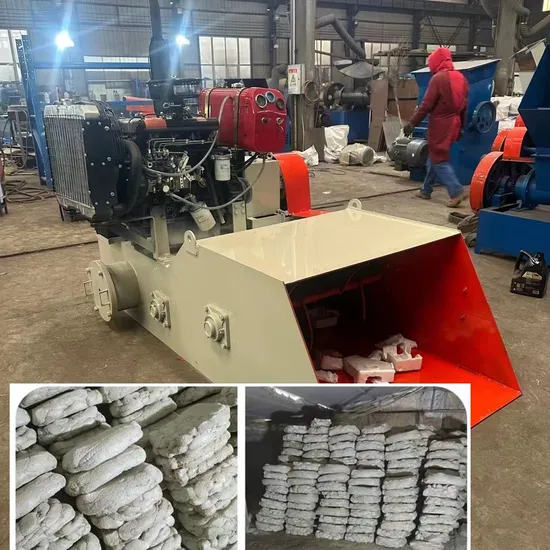

Oooops, Without Pre-Heating Time, No Heater, EPS Styrofoam Densifier Recycling Machine

Product Description

The EPS styrofoam densifier machine can crush and hot melt EPS/XPS/foamed PS/EPE etc materials.It can crush with shafts inside hopper and melt by chamber.Poeple use this machine much to turn the foam waste into value.The lump can be sold in the recycling market,esp the white color lump.
The EPS styrofoam densifier melts by physical principle of "Friction Produce Heat" to melt.Not by electrical heater.You can see there is no heater at chamber.We can also install heater at chamber if users have wet polystyrene foam materials.
We have diesel engine powered machine and electrical motor powered machine.
Machine Advantage
Machine Application
Machine Parameter

Model No.	Hopper Size	Capacity	Motor Power	Machine Size
800	800*750	175kg/h	18.5kw	1830*1330*1000mm
1000	1000*750	250kg/h	30kw	1830*1530*1000mm

FAQ
Q: What the the biggest benefit from our foam melting machine for users?
A: It melts white color lump.The white color lump can sell more price in recycling market.
Q: What is the 2nd benefit from our machine?
A: Users need almost no pre heating time before feeding materials into hopper.Traditional melting machine needs 20 mins to heat up chamber.
Q: Any other benefit from the foam melting machine?
A: Almost no smoke and no smile.
Q: What is temperature from machine?
A: 175'C from friction inside chamber.Ask from us for more technics.

Product Description
The main machine of the foam crushing and lumping machine is an extruder, which consists of an extrusion system, a transmission system and a heating system.
Extrusion system The extrusion system includes a screw, a barrel, a hopper and a die. The plastic is plasticized into a uniform melt through the extrusion system and is continuously extruded out of the die under the pressure established in this process.
Principle of foam block making and lumping machine:
(1) Screw: It is the main component of the extruder. It is directly related to the application range and efficiency of the extruder and is made of high-strength alloy steel.
(2) Barrel: It is a metal cylinder, generally made of heat-resistant, high-pressure-resistant, strong and wear-resistant steel pipe. The barrel and the screw cooperate to realize the crushing, softening, melting, plasticizing, exhausting and compacting of the plastic, and continuously and evenly convey the rubber material to the molding system. Generally, the length of the barrel is 15 to 30 times its diameter, so that the plasticized foam can be fully heated and fully plasticized.
(3) Hopper: A cut-off device is installed at the bottom of the hopper to adjust and cut off the material flow. A sight hole and a calibrated metering device are installed on the side of the hopper.
