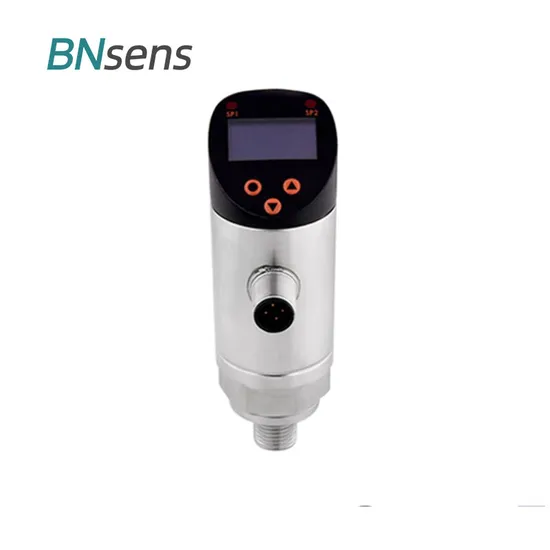

Pm710 Intelligent Digital Pressure Switch with 4-Digit OLED Display

Pm710 Intelligent Digital Pressure Switch with 4-Digit OLED Display

US$80.00-500.00 1 Piece (MOQ)

Basic Info.

Model NO.
PM710
For
Diffused Silicon Pressure Transmitter
Output Signal Type
Digital Type
Material
Stainless Steel
Thread Type
Customizable
IP Rating
IP65
Certification
CE
Customized
Customized
Measuring Range
0-10kpa...100MPa
Overload Capacity
150-300%Fs
Power Supply
12-30V, 24V Is Recommended
Output Method
Two-Way Switch, NPN, PNP Compatible +4-20mA
Load Capacity
≤24V 1.2A
Power Consumption
≤15mA
Operating Temperature
-25ºC-80ºC
Insulation
100mΩ/250VDC
Transport Package
Carton
Trademark
BNsens
Origin
China

Product Description

Product Description PM710 is an intelligent digital display pressure measurement and control product integrating pressure measurement, display, output and control. The product has a fully electronic structure, and the front end uses a silicon piezoresistive pressure sensor. The output signal is amplified and processed by a high-precision, low-temperature drift amplifier, sent to a high-precision A/D converter, processed by a microprocessor, and displayed in the field. And output 2 switching values to detect the pressure of the control system.
CHARACTERISTICS:
1,High switching accuracy
2,Adjustable response time
3,NPN, PNP compatible, freely switchable
4,Button adjustment, one click for quick zero adjusting,quick unit switching
5,OLED display current pressure
6,Node action with luminous tube, easy to observe

Product Parameters
Scale range -100kPa…0~10kPa…10MPa
Pressure type Gauge pressure, absolute pressure, sealing pressure
Power output 4~20mA(12~30VDC),0~5V, 1~5V, 0.5~4.5V, 0~10V (12~24VDC)
Accuracy 0.25%FS
Hysteresis and repeatability 0.1%FS
Temperature drift 1.5%FS(@-20ºC~85ºC)
Response time ≤1ms (up to 90% FS)
Service life ≥10×106 Pressure cycling
Operating temperature ±2%FS(@-20ºC~85ºC)
Medium temperature -20ºC~85ºC
Storage temperature -40ºC~85ºC
Insulation resistance ≥100MΩ /250VDC
Vibration performance Sine curve: 20g, 25Hz~2kHz; IEC 60068-2-6; Random: 7.5grms, 5Hz~1kHz; IEC 60068-2-64
Protection level IP65
Medium temperature -40~85ºC (without heat sink); -40~150ºC (three heat sink); -40ºC~250ºC (five heat sink)
Media compatible Various media compatible with 316L stainless steel
Explosion-proof grade Intrinsically safe explosion-proof Exia IICT6

Range Selection
