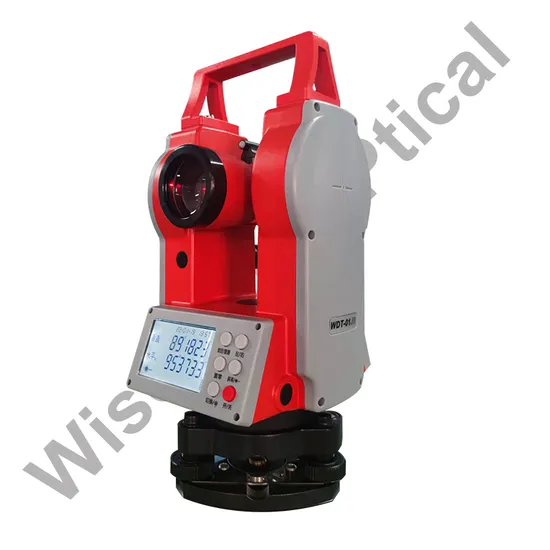

Digital Theodolite for Angle Measureing/ Double Laser: Laser Bob & Laser Pointer
| US$350.00 | 5 Pieces (MOQ) |
Basic Info.
Model NO.
WDT-01J
Vertical Lines
1
Appearance and Structure
Modular
Function of Measurement
Theodolite
Range Finding
Optical
Magnification
30X
Laser
Red
Battery
Ni-MH / AA
Transport Package
Carton / Pallet
Specification
185x182x355mm
Trademark
WISEMAN / OEM
Origin
China
HS Code
9015200000
Production Capacity
2000/Year
Product Description
Digital Theodolite Color Optical:Telescope
| Length of lense | 167mm |
| Image | erect |
| Objective Aperture | 30X |
| Field of View | 1"30' |
| Resolusion | 3.3" |
| Min-Focusing Distance | 1m |
| Stadia Addition Constant | 0 |
Angle Measuring System
| Mode of Angle Measurement | Photoelectric Incremental Reading |
| Detection Method | H: Dual Side |
| V: Sigle Side | |
| Minimum Reading | 1" / 5" / 10" |
| Accuracy | 2" |
| Display | LCD double side |
Compensator
| Tilt Sensor | Equipted |
| Range of Compensation | ±3' |
| Minimum Reading | 1" |
| Precision of Angle Measurement | 2" |
Laser plummet
| Laser wavelength | 635nm |
| Accruacy | 0.5mm / 1.5m |
Base
| Base | Detachable |
| Power | |
| Battery | AA battery * 4 |
| Bubble | |
| Long | 30"/2mm |
| Circle | 8'/2mm |
Laser System
| Laser wavelength | 635nm Green / 520nm Red |
Laser Power | 10mw |
| Effective range (day) | 150m |
| Optical Diamiter | 5mm/100m |
| Laser Deviation | ≤5" |
| Operating Temperature | -10ºC + 45ºC |
Other Specification
| Storage Temperature | -20ºC + 50ºC |
| Weight | 4.7kg |
