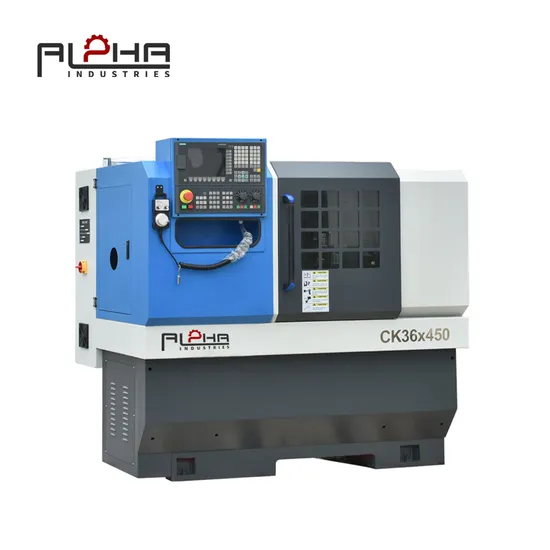

Fabricado En China Flat Bed CNC Lathe-Hard Rail CNC Machine Tool Lathe

Product Description

Product Description

Fabricado En China FLAT BED CNC LATHE-HARD RAIL CNC Machine Tool Lathe

Product Parameters

Basic Info.
Model NO.	CK Series		Guide Rail	/
Tool Holder	/		Power Source	Electric
Controlling Mode	CNC		Automatic Grade	Automatic
Setting Mode	/		Precision	High Precision
Certification	CE,ISO 9001		Condition	New
Trademark	Alpha industries		Origin	China
Production Capacity	100 Sets/Year

Model		CK6140-500/750/1000/1500				CK6136-500/750/1000/1500
Bed structure &Rail		FlatBed CNC lathe-Hard Rai				Flat Bed CNC lathe-Hard Rai
Basic	Distance between centers	500mm	750mm 1000mm 1500mm			500mm	750mm	1000mm	1500mm
	Max.swing over bed	Φ400mm				φ360mm
	Max.swing over cross slide	φ220mm				φ190mm
	Width ofbed	330mm				330mm
	Bed guide hardness	HRC50				HRC50
Spindle	Spindle type	Stepless spindle				Stepless spindle
	Spindlespeed range	150-2200rpm				150-2200rpm
	Spindle bore	φ60mm				φ60mm
	Max.dia.of through-hole	φ50mm				φ50mm
	Spindle nose	A2-6				A2-6
	Taper of spindlebore	MT6				MT6
Stroke & Feeding Rate	Xaxis travel	250mm				250mm
	Z axis travel	500mm	750mm	1000mm 1500mm		500mm	750mm	1000mm	1500mm
	X/Z axis Rapidtraverse	6/8 m/min				6/8 m/min
Chuck	Chuck type	3Jaw ManualChuck, *Hydraulic Chuck,*PneumaticChuck				3 Jaw Manual Chuck, *Hydraulic Chuck,*Pneumatic Chuck
	Chuck diameter	250mm(10"),*200mm(8")				200mm(8"),*250mm(10")
Turret	Turret type	Electrical turret				Electricalturret
	Tool position number	4(25×25mm),*6(25×25mm), 8(25×25mm)				4(20×20mm),*6(20×20mm), *8(20×20mm)
Tailstock Sleeve	Tailstock type	Manual Tailstock,*HydraulicTailstock				Manual Tailstock,*Hydraulic Tailstock
	External diameter	φ55mm				φ55mm
	max. travel	120mm				120mm
	Taper of bore	MT4				MT4
Motor	Spindle motor type	Variablefrequency spindle motor *Servo spindle motor				Variable frequencyspindle motor *Servo spindle motor
	Spindle motor power	5.5 KW,*7.5KW				5.5 KW,*7.5KW
	Coolant pump power	120W				120W
Machine Dimensions	Overall dimension(L×W×H)	1700/2050/2520/3050×1400×1680mm				1700/2050/2520/3050×1400×1680mm
	Packing size(L×W×H)	1850/2250/2650/3200×1560×2040mm				1850/2250/2650/3200×1560×2040mm
	Net/Gross weight/KG	1400/1600	1600/1800	1800/2000	2200/2400	1350/1550	1500/1700	1700/1900	2100/2300

Model		CK6432-500/750/1000			CK6130-450	CK6132-500/750/1000
Bed structure &Rai		Flat Bed CNC lathe-Hard Rail			Flat Bed CNC lathe-Hard Rail	Flat Bed CNC lathe-Hard Rail
Basic	Distance between centers	500mm	750mm	1000mm	450mm	500mm	750mm	1000mm
	Max.swing over bed	φ360mm			φ360mm	φ320mm
	Max.swing overcross slide	Φ155mm			Φ150mm	φ150mm
	Width of bed	260mm			252mm	215mm
	Bed guide hardness	HRC50			HRC50	HRC50
Spindle	Spindle type	Stepless spindle			Stepless spindle	Stepless spindle
	Spindle speedrange	150-2200rpm			150-2200rpm	150-2200rpm
	Spindlebore	Φ60mm			Φ40mm	Φ40mm
	Max.dia.of through-hole	φ50mm			Φ28mm	φ28mm
	Spindle nose	A2-6			A2-5	A2-5
	Taper ofspindle bore	MT6			MT5	MT5
Stroke & Feeding Rate	Xaxis travel	350mm			300mm	180mm
	Z axis travel	500mm	750mm	1000mm	450mm	500mm	750mm	1000mm
	XZ axis Rapid traverse	6/8 m/min			6/8 m/min	6/8 m/min
Chuck	Chuck type	3 Jaw Manual Chuck, *Hydraulic Chuck,*Pneumatic Chuck			3 Jaw Manual Chuck, *Hydraulic Chuck,*Pneumatic Chuck	3 Jaw Manual Chuck *Hydraulic Chuck,*Pneumatic Chuck
	Chuck diameter	200mm(8")			160mm(6")	160mm(6"),*200mm(8")
Turret	Turret type	Electrical turret			Electrical turret	Electrical turret
	Tool position number	4(20×20mm),"6(16×16mm)			4(20×20mm),*6(16×16mm)	4(20×20mm),*6(16×16mm)
Tailstock Sleeve	Tailstock type	ManualTailstock,*Hydraulic Tailstock			Manual Tailstock,"Hydraulic Tailstock	Manual Tailstock,*Hydraulic Tailstock
	External diameter	φ50mm			φ50mm	φ45mm
	max. travel	110mm			110mm	100mm
	Taper of bore	MT4			MT4	MT4
Motor	Spindle motortype	Variable frequency spindle motor Servo spindle motor			Variable frequency spindlemotor	Variable frequency spindle motor *Servo spindle motor
	Spindle motor power	4KW			4KW	4KW
	Coolantpump power	120W			120W	120W
Machine Dimensions	Overall dimension(L×W×H)	1800/2060/2320×1200×1600mm			1700×1070×1600mm	1620/1850/2150×1150×1600mm
	Packing size(L×W×H)	1920/2250/2580×1460×2000mm			1800×1200×1900mm	1780/1960/2260×1320×2000mm
	Net/Gross weight/KG	1300/1450	1450/1650	1600/1800	1000/1200	800/900	900/1100	1050/1300

Standard Accessories
·GSK 928TDL controller	·Manual 3-jaw chuck	·Automatic lubrication system
·GSK feed motor and driver	·Manual tailstock	·Automatic cooling system
·Stepless spindle	·Electrical turret/4 position
·Variable frequency spindle motor	·Work light
·Siemens,Fanuc,Syntec,Controller	·Pneumatic chuck &tailstock	·Chip Conveyor(some model)
Servo spindle motor	·Electrical turret/6or 8 position	·Collect chuck(some model)
·Cartridge type spindle	·Gang tool(some model)
·Hydraulic chuck &tailstock	·Automatic bar-feeder

Company Profile
Certifications
Exhibition
Packaging & Shipping
FAQ
FAQs
Q1: How is the warranty?
A1: Warranty time is 15 months after BL date.
Q2: Can we visit your factory before order?
A2: Sure. All new and old friends are welcomed to visit us at our factory. Besides, we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3: Do you have a stock?
A3: We have stock for popular models, we produce according to order.
Q4: What's the MOQ?
A4: One set only.
Q5: How about your quality?
A5: We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 40 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6: Do you have professional engineers?
A6: Yes, we have professional engineers and designers. We can provide OEM services under Alpha brand.
Q7: Can you provide customized machines?
A7: Yes, we can design and manufacture according to your specific requirements.
