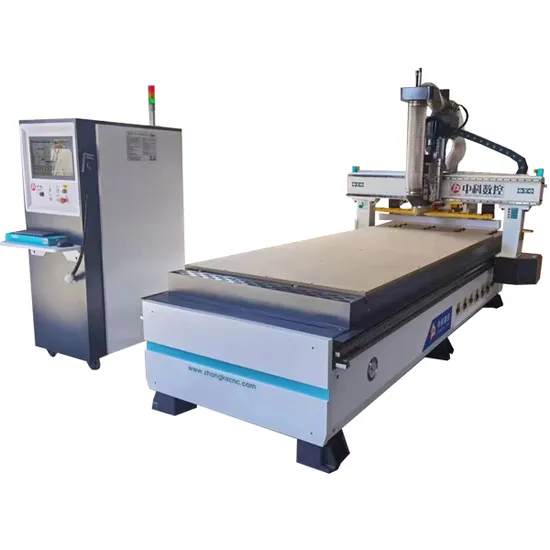

Furniture Making Atc CNC Router Table Machine 1325 Nesting Woodworking Machine

Product Description

Product Description
Furniture making is an art. With the advancement of technology, the furniture industry has undergone a massive transformation. One of the most remarkable technological innovations is the ATC CNC Router Table Machine. The 1325 nesting woodworking machine is an advanced technology machine that is designed to make the furniture making process easy and efficient.
The ATC CNC Router Table Machine is a must-have for all furniture makers as it makes the production process simpler and faster. With this machine, furniture makers can produce multiple pieces of furniture with precision and accuracy. The machine is designed to handle different wood materials such as MDF, plywood, hardwood, and more.
The 1325 nesting woodworking machine is perfect for large-scale furniture production as it can handle multiple sheets of wood material at once. The machine is also equipped with an automatic tool changer that ensures that the cutting tools are changed quickly and efficiently. This feature helps to save time as manual tool changing can be time-consuming and tedious.
The ATC CNC Router Table Machine 1325 is also designed with safety features to ensure that the operator is safe while using the machine. The machine is equipped with a dust collection system that helps to control dust and debris produced during the cutting process. This feature helps to maintain a clean and safe working environment.
The machine is user-friendly, and the control panel is easy to use, making it suitable for both beginners and experienced furniture makers. It is also customizable, allowing users to tailor the machine to their specific needs.
In conclusion, the ATC CNC Router Table Machine 1325 Nesting Woodworking machine is a game-changer in the furniture making industry. It makes the furniture making process more accessible and efficient, resulting in more high-quality furniture production. Furniture makers should invest in this machine to improve their production process and take their business to the next level.

Feature
1 Welded steel bed structure , when working its more stable.
2 Vacuum adsorption table can hold the material, improving the working precision.
3 Shanghai FULING brand inverter
4 Shanghai WEIHONG NK260 control system
5 Water cooling spindle
6 TaiWan high precision HIWIN square guide rail, improving working accuracy.
7 Stepper motor working mode
8 Transmission by helick rack
9 TaiWan TBI Ball Screw
10 Servo motor and SYNTEC control system is optional
11 Italy brand reducer
Specification

Model	ZK 1325 CNC router
X,Y,Z Working Area	1300*2500*200mm
X,Y,Z Traveling Positioning Accuracy	±0.03/300mm
X,Y,Z repositioning Positioning Accuracy	±0.02mm
Lathe Structure	Thick wall square tubes welding bed
X Structure	Taiwan HIWIN square guide rails
Y Structure	Taiwan HIWIN square guide rails
Z Structure	Taiwan TBI ball screw
Max.Speed	0-30000mm/min
Max.Working Speed	0-25000mm/min
Spindle	water cooling spindle
Spindle Speed	6000-24000RPM
Working Mode	Stepper motor
Working Voltage	380V/3ph 50HZ/60Hz for standard machine, if optional vacuum system or servo system, it need 380V 3 phase
Command Code	G code(*uoo,*nc,*mmg, *plt)
Operating System	Ncstudio control system or DSP control system( also can choose LNC or SYNTECH control system, it depends on your requirement)
Interface	USB
X,Y Working Delicacy	<0.01mm
Software	Type3 software or Wentai software
Running circumstance	Temperature: 0°C~45°C
Waranty	One year
Delivery time	2 weeks

Packaging & Shipping
Company Profile
Jinan Zhongke CNC Equipment Co., Ltd is a leading manufacturer of CNC machinery that has been providing high-quality products and services for years. This company is known for its advanced technology, excellent customer service, and a wide range of machinery options to meet the unique needs of various industries.
Jinan Zhongke CNC Equipment Co., Ltd is committed to providing its customers with the best possible products and services. The company's highly skilled and experienced team of professionals is dedicated to producing the highest quality CNC equipment that is reliable, efficient, and cost-effective.
The company has a strong emphasis on maintaining excellent customer relationships by providing timely and professional customer service. Their team of experts is always available to provide helpful advice and to answer any questions their customers may have.
Jinan Zhongke CNC Equipment Co., Ltd is constantly working to improve its products and services to ensure that customers receive the best possible experience. They are continually researching and developing new technologies to make their products even more advanced and efficient.
In conclusion, Jinan Zhongke CNC Equipment Co., Ltd is a leading manufacturer of CNC machinery that provides high-quality products and services. They are committed to maintaining excellent customer relationships, improving their products and services, and leveraging their advanced technology to meet the needs of a variety of industries.
After Sales Service
1. I need a CNC router, can you give me some suggestions?
A: Sure, We will give suggestions of the most suitable machine. Before that, we need to know some information, such as effective processing area, materials, etc, to determine the main parameters.

2.Which kind of materials can be processed on this machine?
A: Wood, mdf, stone, acrylic, glass, plastic, foam, aluminium, Copper,and almost all kinds of non-steel materials.

3. Are you a factory or trading company?
A: We are the manufacturer and we have 10 years factory experience.As only the machine made by ourself, the quality can be trusted, and the most important thing is that we can do better after-sales service.We know how to fix the problem of every part easliy, so welcome to visit to our factory.
4. How should I pay for my order?
A: You need to pay 30% as prepayment at first, then we will start to makeproduction. When the machine is completed, we will send pictures orvideos to you, and then you need to pay the balance. We will ship themachine to you after we receive your full payment.

5. How long is the delivery time?
For standard machines, it will be 7-10 days: For non-standard machine and customized machines according to clients specific requirements, itwill be 15 to 30 days. Certifications
