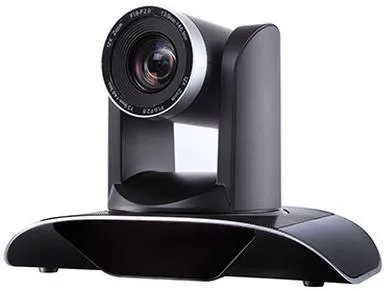

Wireless High-Definition Conference System PTZ Monitoring Camera with Uniform Brightness

Product Description

Features:
1. Outstanding performance and various interfaces 2. Adopt advanced ISP processing technology and algorithms ensuring vivid and lifelike image effects3. Uniform brightness, strong color hierarchy, high clarity, and good color reproduction 4. Supports H.265/H.264 encoding, making the picture smoother and clearer even under low bandwidth conditions

Camera, Lens
Image Sensor	1/2.8 inch high-quality 5-megapixel CMOS sensor
Output Effective Pixels	2.07 million, 16:9
Video Signal	1080P60/50/30/25; 1080I60/50; 720P60/50/30/25
Lens Optical Zoom	20x optical zoom f=4.7~94mm
Viewing Angle	2.9° (narrow angle) to 55.4° (wide angle)
Aperture Coefficient	F1.6 ~ F3.5
Digital Zoom	X10
Minimum Illumination	0.5Lux(F1.8, AGC ON)
Digital Noise Reduction	2D&3D digital noise reduction
White Balance	Manual/Auto/One-touch/White Balance/3000K/4000K/5000K/6500K
Focus	Auto/Manual
Aperture	Auto/Manual
Electronic Shutter	Auto/Manual
Backlight Compensation	On/Off
Wide Dynamic Range	Off/Dynamic Level Adjustment
Video Adjustment	Brightness, Color, Saturation, Contrast, Sharpness, Black and White Mode
SNR	>55dB
Input/Output Interfaces and Supported Protocols
Video Interface	DVI (convertible to HDMI), 3G-SDI
Image Stream	Dual-stream output
Video Compression Formats	H.265, H.264
Control Signal Interface	RS-232, with loop-through RS232 output
Control Protocols	VISCA/Pelco-D/Pelco-P; Baud Rate: 115200/9600/4800/2400bps
Audio Input Interface	Dual-channel 3.5mm line input
Audio Compression Formats	AAC, MP3, PCM
Network Interface	100M Ethernet port (10/100BASE-TX), 5G WiFi (optional), supports network VISCA control protocol
Network Protocols	RTSP, RTMP, ONVIF, GB/T28181
Power Interface	HEC3800 power socket (DC12V)
PTZ
Horizontal Rotation	-170°~+170°
Vertical Rotation	-30°~+90°
Horizontal Control Speed	0.1~100°/sec
Vertical Control Speed	0.1~45°/sec
Preset Speed	Horizontal: 100°/sec, Vertical: 45°/sec
Number of Presets	Up to 255 presets can be set by the user (10 presets via remote control)
Others
Power Adapter	Input AC110V-AC220V, Output DC12V/1.5A
Input Voltage	DC12V±10%
Input Current	1A (max)
Power Consumption	12W (max)
Dimensions (W x H x D)	258mm*172mm*169mm
Weight (approx.)	1.54kg
Operating Environment	Indoor
Remote Maintenance (Network Interface)	Remote upgrade, remote reboot, remote reset
Included Accessories	12V/1.5A power adapter, RS232 control cable, remote control, user manual, warranty card

FAQ
1. How long is the lead time?
Generally 4 weeks. If any urgent orders for projects, we will do our best to expedite the process and deliver faster, But for OEM orders, lead time would be little longer on the first order since we need more time to communicate the requirements and confirm artworks....
2. What's your payment term?
Our policy is at least 30% deposit before production, and 70% paid before shipment date. Certainly, L/C is also acceptable.
3. How do you pack my goods to ensure intactness in the course of transportation?
We always take care of our products and pack them properly. For example, we use strong cardbox (export carton) stuffing with enough foam/ bubble and inner boxes for air shipment or express, and optional pallet packing could be used for LCL sea shipment for better protection.
4. What's your delivery term?
We quote and deliver on the term of FOB Huangpu (except EXW term for small orders. Of course, CIF, C&F or even door to door is acceptable, so we will check and quote the shipping cost additionally.
5. How about the warranty and after-sales service?
Our warranty is 2 years, but considering the long transit time to oversea customers, we offer two and half year warranty from the production date on serial numbers on. For any failure (no-human included), we shall provide you free spare parts and instruction for repair.
6. What's your advantage over competitors?
A very good questions: Our advantage is more than 10 years expertise and experience in the commercial audio industry, we are good at listening to my customers, getting to know their need and proposing right solution with reliable products. With support from specialized R&D and proficient production teams, we succeed in offering innovative and sophisticated audio equipment of cutting-edge technology, and always keep in mind that to make our customers win and profitable is the core in business cooperation.
