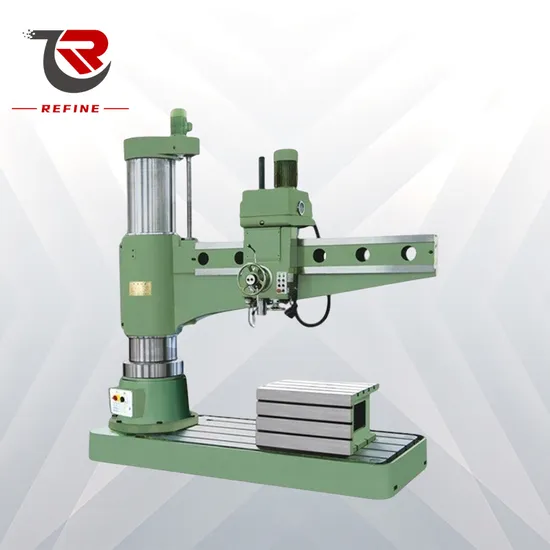

Small Mechnial Radial Drilling Machine Z3032

Product Description

PRODUCTION DESCRIPTION
Main and key parts are made by high strength cast and special steel material.
Heat treatment made by first-class equipment, ensuring durability.
Machining is made by means of specializing equipment, to ensure basic parts with superior quality.
Clamping for assemblies and speed-change of spindle are achieved by hydraulic power, and is sensitive and reliable.
Multiple spindle speeds and feeds provide economic and high-efficiency machining.
Mechanical and electrical controls are centralized in the headstock, with convenient and rapid operation.
New painting technology and improved outward appearance reflects the specialty of machines.
1).Rocker arm guideraill, spindle quilk and inside and outside column of raceway all adopt surface quenching treatment, prolong the service life of the machine tool
2).All control handle centered in convenient place, manipulation is convenient
3).Spindle rotating and reversing , parking brake, variable speed, the gap of five movements, a handle to control, easy to use
4).Spindle box, rocker arm, both inside and outside column adopts hydraulic drive rhombus bulk clamping mechanism, clamping and reliable
5).Using hydraulic optional shift gear, auxiliary time can be saved
6).Has a perfect safety protection devices, comply general international standards
7).Spindle box, the pillar of the clamping or loosening could clamping alone, also can clamp at the same time
8).Column, rocker arm, spindle box big adopt high strength cast iron, such as improving the big stiffness and strength
9).The spindle box inside, rocker arm and post adopt automatic lubrication
10).Radial guide rail, rocker arm lifting mechanism adopts manual lubrication
11).The machine USES three-phase 380 v / 50 hz ac power.Control circuit, lighting circuit and indicator light controlled MACHINE PICTURES
PARAMETERS

Item		Unit	Z3032x10	Z3040	Z3050×16	Z3063	Z3080	Z30100	Z30125
Max. drilling diameter		mm	32	40	50	63	80	100	125
column surface	Max.	mm	1000	1600	1600	2050	2500	3150	4000
	Min.	mm	200	350	350	450	500	560	600
Distance from spindle nose to base surface	Max.	mm	1064	1215	1270	1600	2000	2500	2500
	Min.	mm	264	315	370	400	550	700	700
Spindle travel		mm	250	315	315	400	450	500	560
Taper of spindle bore (Morse)		No	No.4 Morse	No.4 Morse	No.5 Morse	No.5 Morse	No.6 Morse	No.6 Morse	Metric 80
Spindle speed		r/min	71-1800	25-2000	25-2000	20-1600	16-1250	8-1000	6.3-800
Spindle speed series			8	16	16	16	16	16	22
Spindle feed rate series		mm/r	0.13-0.54	0.04-3.2	0.04-3.2	0.04-3.2	0.04-3.2	0.06-3.2	6.3-800
Main power		kw	2.2	3	4	5.5	7.5	15	18.5

MACHINE FEATURES
ACCESSORIES

No	Item	Quantity
1	Reduction sleeve	1
2	Drill chuck	1
3	Connecting rod	1
4	Worktable	1
5	Operation instruction	1
