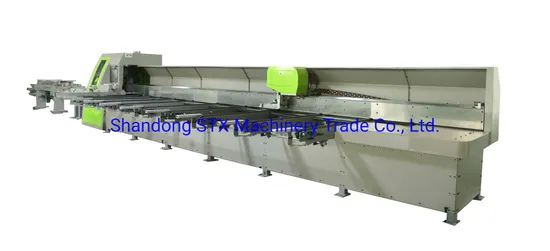

Germany Quality Cross Cut Wood Optimizer Saw Machine
| US$45,000.00-52,000.00 | 1 set (MOQ) |
Basic Info.
Model NO.
MT680
Power Type
Electric
Layout
Horizontal
Controlling Mode
CNC
Automatic Grade
Automatic
Precision
High Precision
Certification
CE
Customized
Customized
Condition
New
Color
Customized
After-sales Service
Online Support
Cutting Speed
25-35m/Min
Max Cutting Section
200 X 137mm
Max Feeding Speed
60m/Min
Saw Blade Diamter
500mm
Max. Cutting Length
7000mm
Transport Package
Wood Case
Trademark
STX
Origin
China
HS Code
846591
Production Capacity
2000 Sets/Year
Product Description
Germany Quality Cross Cut Wood Optimizer Saw MachineFunction
The full-optimized push-type precision cross-cut saw is a modern and efficient wood cross-section and sorting system; it is used in the preparation process of wood sheet processing, and is used to remove defects and size-length preparation sawing of raw material sheets.
The full-optimized push-type precision cross-cut saw can allow the length, quantity, value and other information of materials of different specifications in the production task to be pre-entered into the computer. Through the high-speed calculation of the computer and the precise measurement statistics of each independent raw material, the production The plan is converted to form the best sawing plan, and the high-speed and precise cross-section of the wood is carried out.
Technical Data
| Max. incoming length | 5000 mm | |
| Min. incoming length | 1000 mm | |
| Incoming Width | 250 mm | |
| Max. cutting section size | 200mm(Width)40mm (Thickness) | |
| Cutting tolerance | ≤(±1mm )(bening ratio <3mm per meter) | |
| Feeding speed | 50~90 m/min. | |
| Kick-out device | 1 set | |
| Rated voltage | 340V~400V | |
Main parts supplier
| Industrial PC | Advantech(Taiwan) |
| Touch screen | Songzuo(China) |
| Movement control system | Advantech(Taiwan) |
| Electric components | Schneide |
| Sensor | SICK |
| Pneumatic parts | SMC |
| Bearing | NSK |
| Servo | Delta(Taiwan) |
| Saw blade | Leitz (Germany) |
| Linear rail | Hiwin (Taiwan) |
Main functions and advantages
