Wxc100s+Jy100 Bright Bar Making Machine Manufacturer (prestraightening-peeling-post straightening)
| US$800,000.00 | 2 Sets (MOQ) |
Basic Info.
Model NO.
WXC100S+JY100
Type
Horizontal Lathe
Processing Accessory
Centre CNC Lathe
Guide Rail
Semi-Automatic
Tool Holder
Four
Power Source
Electric
Controlling Mode
CNC
Automatic Grade
Automatic
Setting Mode
Floor-type
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Technical Process
Peeling and Straightening
Accuracy
Tolerance H9
Roughness
Ra 0.8
Transport Package
Seaworthy Packing
Trademark
HAIGE
Origin
Yantai, China
Production Capacity
100 Sets
Product Description
Bright Bar Peeling LineCompany Information
Machine Details

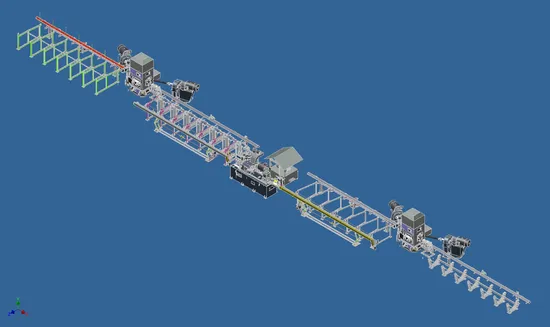

Pre-straightening Machine + Peeling Machine + Post Straightening Machine
Technical Parameters (just for reference)
| Specification | ||||
| Workpiece Required | Diameter Range(mm) | 20<dia<80 | ||
| Length(mm) | ≥2000 | |||
| Surface Hardness | ≤HB380(≤HRC42) | |||
| Yield Strength(Mpa) | σb≤450 | |||
| Straightness(mm/m) | ≤3.0 | |||
| Diameter Tolerance | ≤h10 | |||
| Circular Degree | ≤50% of diameter tolerance | |||
| Surface Roughness(Ra) | 3.2μm~6.3μm | |||
| After Straightened | Straightness(mm/m) | ≤0.4 | ||
| Surface Roughness(Ra) | 0.8μm | |||
| Diameter Tolerance | h9 | |||
| Roll quantities(pcs) | 2 | |||
| Roll diameter(mm) | Φ335 | |||
| Feeding speed (m/min) | 2~14 | |||
| Main motor(kw) | 45 kw X 2 | |||
| Lifting Motor (kw) | 3 | |||
| Weight(t) | 18.5 | |||
| Total Capacity(kw) | 100 | |||
| Outline Dimension(m) | 7.1 X 2.8 X 3.0(main machine) | |||
More details, please contact me
