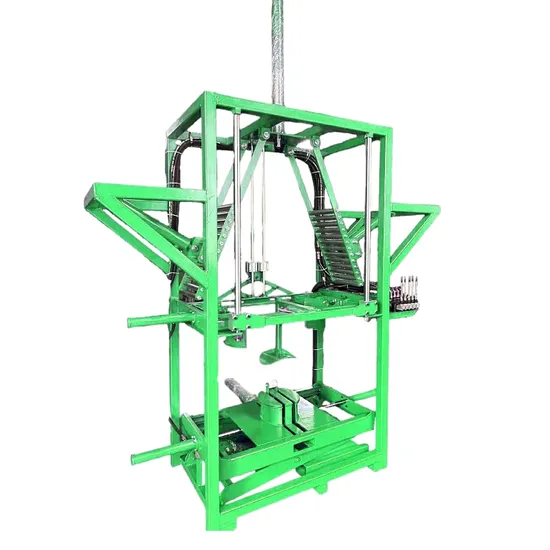

Vehicle Tire Doubling Triple Machine Hydraulic Pneumatic Optional

Product Description

Product Description We manufacture Tire doubling triple machine for many year, we can product 40sets every month. It includes hydraulic type and pneumatic type, customers can choose according to their needs. Hydraulic type machine use motor and has tronger power and canmanage 4-6pcs tires; Pneumatic type machine can manage 3-4 pcs tires, it works together with air compressor.


Product Parameters

Model	H4800
Drive type	Hydraulic
Power supply required	220V/380V/415V/ 3-phase;For motor power station
Motor power	4kw/5.5kw/7.5kw based on the power supply
Pressure source	Hydraulic pump
Working pressure	10Mpa
Cylinder quantity	Hydraulic cylinders- 9pcs
Max tyre diameter	105cm(even 120cm)
Max tyre width	30cm
Tyre tripling quantity	4-6 pcs
Main structure	Host frame, hydraulic system, motor power station
Operation method	Handle rod to control the hydraulic oil
Machine dimension about	2400*850*3570mm
Packing size about	2500*920*2500mm
Weight:	850kg

Machine Images
Pneumatic Type to Choose:


Machine Features 1, Hydraulic doubling tyre tripling machine can press 4-5 tyres together;2, Be easily operated by one man, and the work efficiency is high;3, Low failure rate, long time working life.

Workshop Show Our factory has professional technicians and workers, carefully researching technology, and is committed to improving the quality and service life of the machine, only to provide customers with the best machines and services, our factory has huge productivity every month.

Packaging & Shipping We will pack goods by plywood box and ship it by LCL. It can also packed together with other goods and should put into 40HQ container.

FAQ 1, What types of this manchine can you supply?--- Hydraulic and pneumatic two types.2,What is the lead time normally?-- About 25 working days after getting the deposit money from client;3,What is the payment terms?-- T/T. 50% deposit in advance and 50% balance before shipment;4,How about the shipment method?-- Normally, plywood case packing and do LCL shipment.5, How about your warranty and after-sale service?---The warranty is 1 year, if any part broken within one year, we will send the parts to client by express.If there is question about the operation or using, we will give technical support to guide client to do well.
