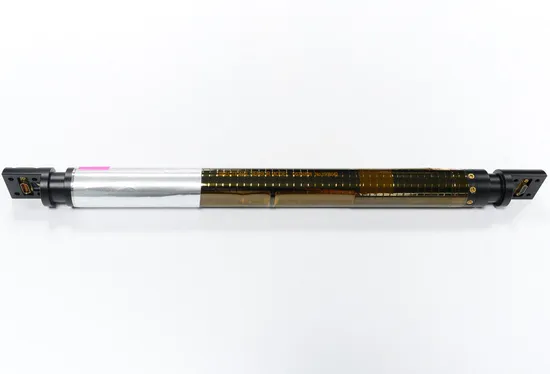

Ds750bt Tensor Mwd Directional Module

Product Description

Product Description
DS750BT High temperature directional sensor
The DS750 directional module is designed to enable high accuracy measurement of the tool face (roll), inclination and azimuth orientation angles in borehole logging and drilling applications.

Detailed Photos
Product Parameters

Measurement Accuracy
Inclination angle	±0.1°
tool face angle	±0.2°@INC=90°
Azimuth angle	±0.3°@ INC=90° ±1° @ INC=10° ±2° @ INC=5°
Electrical Performance
Input voltage range	+10V~+36V
Input current	<75ma@+15v;<>
Digital interface	UART/RS232 optional
Baud rate	1200~115200
Communication protocol	ASCII or Binary
Working Environment
Working environment range	0~150ºC
Storage temperature range	-40~+160ºC
Shock	1000g,1ms half sine
Vibration	20g

<75ma@+15v;<><75ma@+15v;<>
Our Advantages
a. Experience in the hybrid thick film IC &high end sensors development and manufacture fields more than 18 years.
b. Invention patents more than 40 projects.
c. Scientific institution, production base more than 20000 square meters.
d. More than 49% of employees are from R&D team.
e. New cooperating customers more than1000 in recently 3 years.
f. Production capacity more than 100000/year;
g. Professional pre-sales, after-sales guide, solutions can be provided based on customers inquiries.
h. Customized Service.

Company Profile
ZITN is a national high-tech enterprise, it was established in 2002 by many high tech engineers who have vast experience in microelectronic Industry. With 19 years' development, ZITN became a recognized industry leader in China, and we have total 175 employees, more than 49% of them are from R&D team. We mainly design, develop and manufacture high accuracy inclinometer, quartz based accelerometers, inertial measurement unit systems, IF Circuit products and Nand flash memory which widely used for aerospace, oil and gas drilling, geological exploration fields.
FEEL FREE TO CONTACT US FOR MORE DETAILS!
Related Products

Packaging & Shipping
Customized anti-static box.Delivery via express (DHL, Fedex, UPS etc...)Delivery date within 7-10 days after the shipment from our factory.
FAQ
Q.What kind of service can you provide?
A: Except the stanadrd model, we also can provide the products accorded with customers' detailed requirments, such as calibration, repair, upgrade and customized etc...
Q.What kind of test of the product will be done before shipping?
A: We have a strict quality control system to guarantee the product performance, such as Non-magnetic turntable calibration system, Shock&Vibration test system, temperature cycle test system etc...
Q.Can I get a sample for evaluation?
A: Yes, we're willing to provide the sample for evaluation and guide you for any techical questions in the whole process.
Q.What's the delivery options can I choose?
A: We can provide the airline express delivery service , such as DHL/Fedex/TNT express, normally 7- 10 days for transportation needed. Q.Can I visit your company?
A: Yes, our company locate at Qingdao city, we have over 175 employees here, included the R&D, production, Financial, Marketing, etc...
