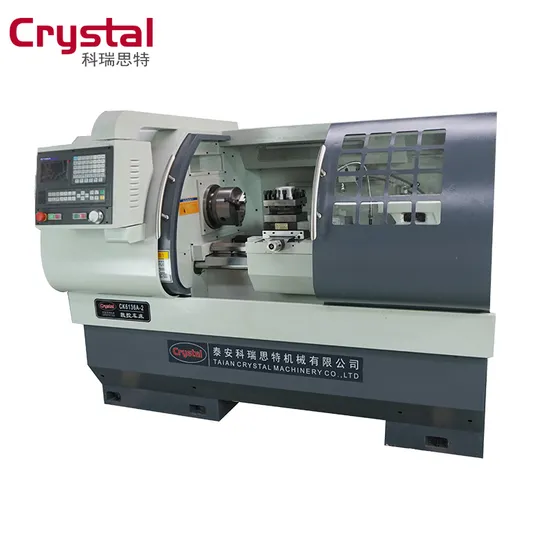

Ck6136A High Precision CNC Lathe Turning Machine with Bar Feeder

Product Description

NOTE: The currency exchange rate fluctuates greatly, please consult customer service for the best price.
CK6136A high Precision cnc lathe turning machine with bar feeder
CK6136A CNC Lathe Features:
1.Frequency conversion stepless speed regulation
2.Higher working efficiency
3.Higher rigidity cast iron
4.Fully enclosed-safety

Max. swing over bed	mm	Φ360
Max. swing over cross slide	mm	Φ190
Max. processing length	mm	500/750/1000
Spindle Taper	#	MT6
Thu-hole dia. of spindle	mm	Φ60
Max. spindle speed	rpm	150-2500
Chuck size	mm	200
Spindle motor	kw	5.5
X/Z axis Position accuracy	mm	0.01/0.015
X/Z axis repeatability	mm	0.012/0.013
X/Z axis feed motor torque	N.m	X:4 Z:6
X/Z axis fast feeding speed	Mm/min	X:6 Z:8
Tailstock sleeve dia.	mm	Φ60
Tailstock sleeve travel	#	120
Tailstock sleeve taper	#	MT4
Tool post type	#	4 -piece electric tool post
Tool bar section	mm	20*20
Machine dimension (L×W×H)	mm	1850/2120/2370×1400×1700
N.W	Kg	1500/1650/1750

FAQ
1.Q:Can we pay by L/C?
A:Yes, we can do T/T, L/C etc.
2.Q: What is your payment terms?
A:Our payment term is 30% T/T in advance, 70% T/T before shipment.It is negotiable.
3.Q: What is your delivery time?
A:Usually, one machine takes 15-20 days. IF we have in stock, we can arrange
shipment as soon as we receive the payment.
4.Q: Can we go to your factory and learn how to use the machine?
A:We sincerely welcome you come to our beautiful city. The training is free. It would
be great honor to us.
5.Q:Can you arrange training in our place after we bought your machine?
A:We can arrange oversea training. Buyers will be responsible to the costs.
6.Q:How many Voltage ? How many Phases 1 or 3? How many hertz (Hz)? of your
machine?
A:Our standard is 3 phase, 380V, 50/60Hz. All can be customer made.
7.Q: Do you have CE certification?
A: yes, we have CE certification, machine quality is guaranteed.
8.Q: Is your company a factory or trading company?
A: We are factory and have more than 18 years production experience.
9.Q: How can I get the quotation?
A:You can send the inquiry on tacrystal.en.made-in-china.com, or send email to us. It is better if you can
tell what is your detailed requests. We will reply to you within 1 hour.
10.Q:What is the Control of your lathe? Can I change it to other brand?
A:The standard control of our lathe is GSK. You also can change other controls,
such as FANUC,Siemens and so on.
SERVICE
you satisfied is our business!
1. The first batch of supplier joined ****** Trade Assurance.
Amount up to the top of Machinery Industry. Zero-risk Purchase service.
2. Over 400 clients from more than 80 countries could tell you we are your reliable
partner.
3. Professional in cnc machine.
Our price could beat any competitors in China market.
4. We supply professional solution based on your own process one by one.
5. Customer-made configurations available. Provide you more choices.
6. 7*24 hours before and after sale service.
7. 2 years guarantee for whole machine, 3 years warranty fro CNC system, servo
motor, guide-rail.
