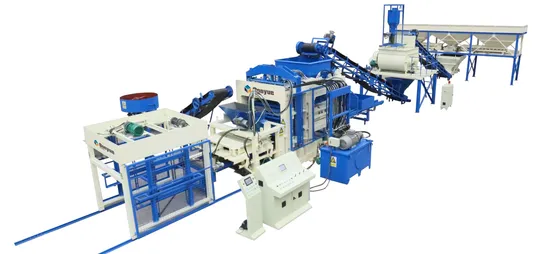

QT12-15 equipment for the production of building materials
Details description
1.QT12-15 Brick Production Line is fully automatic brick making machine, which can make different sizes of hollow blocks, solid bricks, paver and curbstone by changing moulds.
2. QT12-15 Brick Making Machine adopt to hydraulic pressure moulding system , so the brick machine has more stable and higher-efficiency working status and the bricks produced are of better quality, larger density and higher strength.
3. The block machine will convert the excess oil liquid in the pressurized time to the vibration force, and the computer will
control the directional vibration, frequency conversion, braking and cancle vibration energy consumption.
4. Block molding machine low-frequency charging, high frequency vibration, mould and table vibration make concrete fully liquefied in 2 to 3 seconds, exhaust, so as to achieve high density, high strength, especially suitable for production of high-strength blocks,can be stacked after forming.
5. QT12-15 block molding machine is made from the photoelectric control host, which can be sent out of the material in time and avoid the influence of the remaining vibration, and some of the concrete is liquefied in advance.
6. The feeding hopper is equipped with oscillating feeding device, and the material is fed into the mould box by adjusting the swing fork. Imported electrical appliances, hydraulic components make the control, hydraulic two systems basically do not fault operation;
Detailed Photos
Product Parameters

MAIN SPECIFICATIONS
Dimension of host machine	3800x2500x3550 mm	Host machine power	56.2kw
Weight of host machine	14 ton	Vibration force	100-130kn
Water consumption	20Ton/day	Pallet size	1400×900×35mm
workshop area	300m²	Voltage	380/415/440 V
Mixer model	CMP1000	Molding area	1350×840mm

THEORETICAL PRODUCTION CAPACITY
Block/ Size(LxWxH)	Pcs/ Mould	Psc/ Hr	Pcs/ 8 Hrs
Hollow Block 400x200x200mm	12	2160-2880	17280-23040
Multi-hole Brick 240x115x90mm	30	5400-7200	43200-57600
Solid Brick 240x115x53mm	60	10800-14400	86400-115200
I Shape Paver200x163x60mm	28	4320	34560
Rectangle paver 200x100x60mm	42	7560	60480

Finished blocks
