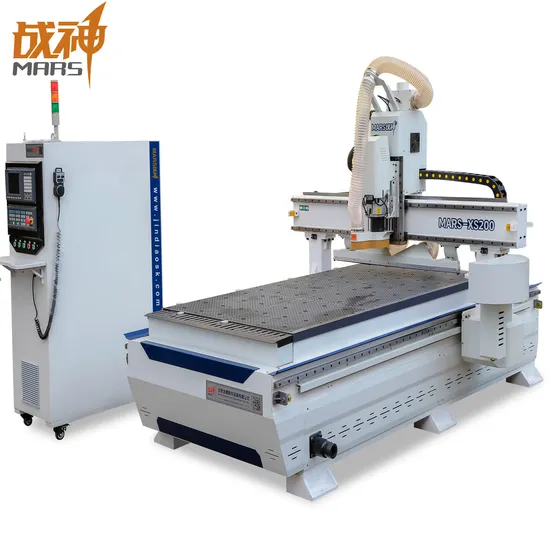

9kw Spindle Circular Tools Change Automatic Disc Type Atc CNC Cutting Machine Center
| Negotiable | 1 Piece (MOQ) |
Basic Info.
Model NO.
XS200
Application
Wood,Artificial Stone, Bamboo, Marble,Color Plates
Process Usage
Wood CNC Router Machine
Movement Method
Linear Control
Control Method
Semi-Closed Loop Control
Numerical Control
CNC/MNC
Processing Precision
0.01~0.02(mm)
Performance Classification
High-End CNC Machine Tools
Certification
CE, ISO 9001
Condition
New
Transport Package
Wrapped in Layers of Wrapping Film and Ponchos
Specification
ATC Circular tool change magazine
Trademark
Mars
Origin
China
HS Code
8465990000
Production Capacity
300 Set/M
Product Description
XS200 MARS Wood CNC Machine with circular ATC tool changerKeypoints: 15 years experience of production
ISO9001:2008, CE, SGS, AAA Level Enterprise which Honors Contract
Three Brands: Mars, Golden Eagle, Boiro
Technicist who go abroad to offer after-sale service
Technical Parameters:
| Model | XS200 |
| Working Stoke | 1230*2450*200~300mm |
| Body Structure | Thick-walled steel tube welded |
| Spindle Power | HSD 9KW air cooling spindle |
| Tool Magazine | Circular ATC tools change |
| Spindle Speed | 0 ~ 24000 rpm/min |
| Control System | Syntec/ Osai/Delta |
| Drive System | Yaskawa/ Delta servo motor |
| Lubrication System | Automatic |
| Transmission | X/Y axis rackbar, Z axis ball screw |
| Guide Rail | Taiwan Hiwin linear rail |
| Vacuum Pump | 5.5KW |
| Max Travelling Speed | 80m/min |
| Max Processing Speed | 30m/min |
Functions: The functions of this machine include cutting,milling,drilling and slotting.
Standard Accessories:
Applicable Scope: Cabinet doors, wooden doors, solid wood, panels, doors, windows, tables, chairs, folding screens, waved plate, large wall hangings,
advertising boards, sign makings
Applicable Materials: Artificial stone, wood, bamboo, marble, organic board, color plates and other materials. Samples: Similar Products:
