Vacuum Freeze Dryer Industrial Sublimation Freeze Drying Machine

Product Description

Attention:
1 --- All prices and parameters shown above are automatically generated by the system, if you want to know the exact information,please click "Contact Supplier" to send mail to us.
2 --- Because of the time difference, we suggest that you can choose to send us an inquiry instead of online chat.
3 --- When sending us an enquiry or message, please tell us your Email or WhatsApp/Wechat/Skype .etc, then our sales manager can contact you quickly.
Product Description
Freeze dryer is widely applied in pharmaceutical industry, biotechnology industry , biological science industry, materials science industry, chemical industry, food and agriculture industry etc. it is used to produce vaccines, drugs and permanently store biological tissues/organs.

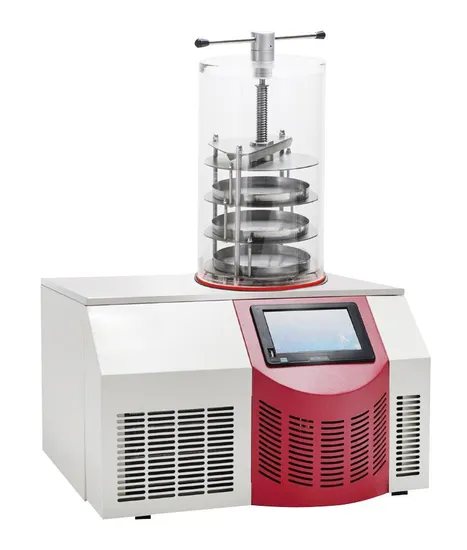

LTDG-CX Series freeze dryer is specialized designed for small batch test in laboratory.The Bench Top and Console freeze dryers are with advanced design and occupies smaller area.
Technical Parameters

Model	LTDG-10S	LTDG-10T	LTDG-10P	LTDG-10PT
Type	Standard chamber	Stoppering chamber	Standard chamber with 8 port manifold	Standard stoppering
				chamber with 8 port manifold
Final condenser temp (ºC)	-55
Vacuum Degree (Pa)	<10
Condenser volume (L)	9
Freeze drying area (m2)	0.12	0.09	0.12	0.09
Ice condenser capacity (Kg/24h)	3
Qty of shelf	4	3	4	3
Material loading capacity/shelf (ml)	300	300	300	300
Material loading capacity (ml)	1200	900	1200	900
Freeze drying time (h)	24	24	24	24
Manifold	/	/	8 pieces	8 pieces
USB Interface	Y	Y	Y	Y
Drying Chamber(standard)	Transparent acrylic
Vacuum Pump	Speed: 2L/S
Control System	Microprocessor, touch screen
Power supply (V/Hz)	220V/50Hz,60Hz
Exterior dimension (WxDxH mm)	582*541*374/684
Penicillin bottle Φ22	260	195
Penicillin bottle Φ16	480	360
Penicillin bottle Φ12	920	690

LTDG-10S LTDG-10T LTDG-10P LTDG-10PT

Model	LTDG-12S	LTDG-12T	LTDG-12P	LTDG-12PT
Type	Standard chamber	Stoppering chamber	Standard chamber with 8 port manifold	Standard stoppering
				chamber with 8 port manifold
Final condenser temp (ºC)	-55 OR -80
Vacuum Degree (Pa)	<10
Condenser volume (L)	9
Freeze drying area (m2)	0.12-0.18	0.09	0.12-0.18	0.09
Ice condenser capacity (Kg/24h)	4
Qty of shelf	4	3	4	3
Material loading capacity/shelf (ml)	300
Material loading capacity (ml)	1200	900	1200	900
Freeze drying time (h)	24
Manifold	/	/	8 pieces	8 pieces
USB Interface	Y
Drying Chamber(standard)	Transparent acrylic
Vacuum Pump	Speed: 2L/S
Control System	Microprocessor, touch screen
Power supply (V/Hz)	220V/50Hz,60Hz
Exterior dimension (WxDxH mm)	582*541*374/684
Penicillin bottle Φ22	260	195
Penicillin bottle Φ16	480	360
Penicillin bottle Φ12	920	690

LTDG-12S LTDG-12T LTDG-12P LTDG-12PT

Model	LTDG-18S	LTDG-18T	LTDG-18P	LTDG-18PT
Type	Standard chamber	Stoppering chamber	Standard chamber with 8 port manifold	Standard stoppering
				chamber with 8 port manifold
Final condenser temp (ºC)	-55 OR -80
Vacuum Degree (Pa)	<10
Condenser volume (L)	23
Freeze drying area (m2)	0.18-0.27	0.135	0.18-0.27	0.135
Ice condenser capacity (Kg/24h)	6
Qty of shelf	4	3	4	3
Material loading capacity/shelf (ml)	450
Material loading capacity (ml)	1800	1350	1800	1350
Freeze drying time (h)	24
Manifold	/	/	8 pieces	8 pieces
USB Interface	Y
Drying Chamber(standard)	Transparent acrylic
Vacuum Pump	Speed: 2L/S
Control System	Microprocessor, touch screen
Power supply (V/Hz)	220V/50Hz,60Hz
Exterior dimension (WxDxH mm)	582*541*374/684
Penicillin bottle Φ22	350	270
Penicillin bottle Φ16	740	555
Penicillin bottle Φ12	1320	990

LTDG-18S LTDG-18T LTDG-18P LTDG-18PT If you have other models that need to be consulted, you can send an inquiry to us!
Product Highlights
Humanized Design
7" colorful touch panel, can display the product samples temperature, cold trap temperature and vacuum etc in digital and curve.
Touch panel with tilt design conforms to ergonomics and operate more comfortably.
Optional for gas interface: can inject inert gas
Optional for Cold trap electrical heating defrost function Optional for rack heating which is help to test in production Eutectic point testing, it can have sublimation temperature
Accessories
Company Introduction Our Company
Zhejiang LeadTop Pharmaceutical Machinery Co.,ltd well known as LTPM China. Since year 1996, we are start manufacturing Oral Solid Dosage Pharmaceutical Machinery includes Mixing Machine, Drying Equipment, granulation line, IBC Bin and Bin Washing Machine. As year passed, LTPM China absorb advanced domestic and abroad technology, we export machinery to more than 30 countries all over the world.
LTPM China is considered one of the major Pharmaceutical Machinery Supplier and exporter in China mainland. Professional, Enthusiasm, Service and Team Work has been always our value to create for our Staff and customers. As year 2012 we position our value as "A Pharma Machinery Division, For A Better Life", creating a Win-Win Platform for our clients and staff for a better life is our vision. Our Machinery Manufacturing Workshop
Imported CNC Machining Centre makes all parts process accurate. Own R&D team with more than 20 years engineering expereince, can customize the equipment and packaging line to your satisfaction. Professional Business Team
Warm, professional business team, careful response to your inquiry, timely response rate of more than 93%, higher than the average level of the industry.
Our Certificates
ISO, CE, SGS, BV Certified Company. Packing & Shipping
All machine delivery with anti rust spray, film wrapping and Sea shipping affordable wooden box.
FAQ
Q: What price terms you offer?
A: We can offer FOB, FCA, CFR, CIF, EXW and other price terms based on your request.
Q: What payment terms you take?
A: TT, LC, other terms are also workable.
Q: Will you help with installation and stuff training? A: Yes, we can send our engineers to your place to guide the installation and train your workers if you need, but the buyer should bear our technician's round tickets, accomodation, food and subsidiary USD100/day.
Q: How can I visit your factory? A: Our factory is located in Ruian city Zhejiang Province. Just let us know your schedule in advance and we will arrange everything for you!
Any other doubts about our machine, please feel easy to contact with us.
