Pig Cow Sheep Chicken etc Blood Cell Separation Tubular Centrifuge

Product Description

Product Description
Pig cow sheep chicken etc blood cell separation tubular centrifuge

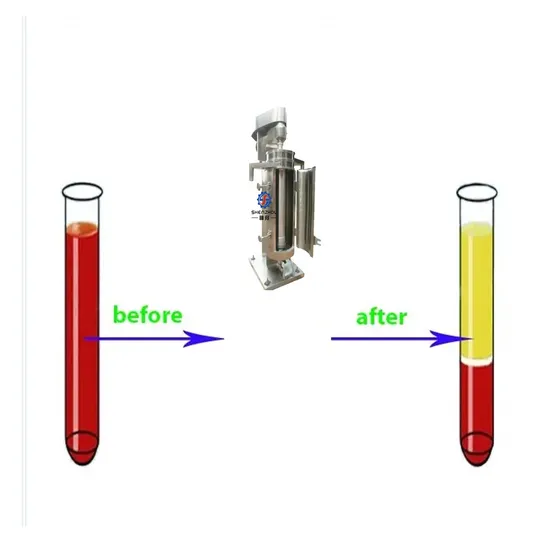

Blood tubular centrifuge: This tubular centrifuge is the improved one on the base of the original separator and through experiment again and again, it can be extensively used in separating blood plasma and cell of people, pig, cow, sheep and chicken etc. This centrifuge with high the features of its high yield and the rate of broken blood cell can be reduced to the lowest extent, the contact part with the blood is made of stainless steel which can meet the requitments of GMP in medicine making industry.

It can be widely used for plasma power(additive of drink and food) thrombin(biochemical mixture), albumin, immunoglobulin, red cell powder(additive of drink and food) SOD(biochemical mixture, cosmetic), hemachrome(biochemical mixture) additive of paint and so on.

This centrifuge separator consists of machine body, driving part, bowl, liquid collecting pan and liquid-in bearing set etc. when works, the material is sprayed onto the bowl from the inlet on the bottom and strong centrifuge force is formed when the bowl rotates with the material and that makes the material flow upper along the wall of the bowl and then separated because of the different gravity by the centrifuge force.

We have two different modes of Tubular Centrifuge, one is Two-phase solid-liquid separation, the other is Three-phase solid-liquid-liquid separation, which can be selected according to your material characteristics and separation requirements. GQ Model-Two Phase: Used to separate various suspensions that are difficult to separate. Especially suitable for solid-liquid separation with low concentration, high viscosity, small solid particles, and small solid-liquid gravity difference. For example, clarification of various mixed solutions, coal tar, graphite residue removal, protein, algal zone, pectin extraction; molasses refining; blood separation, paint, dye, resin, rubber solution purification, separation and clarification of plant extracts. GF Model-Three Phase: Used for separation of various kinds of emulsions, especially for liquid-liquid separation with little difference in weight between two phases and liquid-liquid-solid separation containing a small amount of impurities. For example, transformer oil, turbine oil, lubricating oil, fuel oil, dye, grease, saponification. separation of plasma from animal blood, purification of edible oil, soaking solution, soybean phospholipid concentrate, oil-water separation and sewage treatment, etc.
Product Paramenters

Type	GFX105	GFX112
Diameter (mm)	105	112
Bowl Speed (r/min)	16300	15500
Bowl Volume (L)	6	7
Separating Factors (ω2.r/g)	15700	15000
Though output Capacity (L/h)	1200	1600
Motor Power (kw)	2~2.2	3
Weight (kg)	450	650
Dimension(mm) L×W×H	840×450×1600	900×550×1700

Model	GF/Q45	GF/Q75	GF/Q105	GQY125	GQ150
Bowl diameter	45 mm	75 mm	105 mm	125 mm	142mm
Effective height in bowl	280 mm	430 mm	730 mm	735 mm	700 mm
Settling volume in bowl	0.45 L	2 L	5.5 L	7.4 L	10 L
Bowl speed	0-28000 r/min	16770 r/min	16000 r/min	15000 r/min	14000 r/min
Max separation factors	0-19800	20000	15025	15500	15570
Nozzle diameter	2.3 mm	2.3.5 mm	4.6.8.10 mm	6.8.10 mm	8.10.12 mm
Inlet pressure	>0.05 Mpa	>0.05 Mpa	>0.05 Mpa	>0.05 Mpa	>0.05 Mpa
Throughput	≈100 kg/h	≈500 kg/h	≈1200 kg/h	≈2000 kg/h	≈3000 kg/h
Motor type	Series motor	Y90S-2	Y90S-2	Y90L-2	Y100L-2
Motor power	0.6 kw	1.5kw	2.2 kw	3.0 kw	3.0 kw
Motor speed	0-4500 r/min	2840 r/min	2880 r/min	2880 r/min	2880 r/min
Size	580*650*750mm	800*400*1200 mm	800*700*1400 mm	850*500*1600 mm	800*700*1600 mm
Weight	120Kg	300Kg	400Kg	610Kg	520Kg

In the above parameter lists, the bowl solid volume is smaller than bowl volume. And the actual throughput is lower than parameter lists. Different feeding is with different throughput capacity which is based on the property of feeding, and requirement from users. We will offer you the professional technology guidance for choosing the right machines.
Details Images
Application:
Tubular Separator is mainly used for separating all kinds of suspension which is difficult to be separated, especially suitable for separation of solid-liquid suspension with light concentration, heavy viscosity, fine particles and very small differential gravity of the two phases. such as clarification of herbs plants extracts, various liquor, liquid , oral liquid, the extraction of paint, dye, as well as various proteins, alga, fruit gels, and purification of rubber solution, coal tar, graphite, saponin, pectin, sirup, vaccine mycelia and all kinds of glucose; refining resin, and latex solution, enzyme (SOD) of oxide, various kinds of albumens, the glucoside of the soap, etc.
