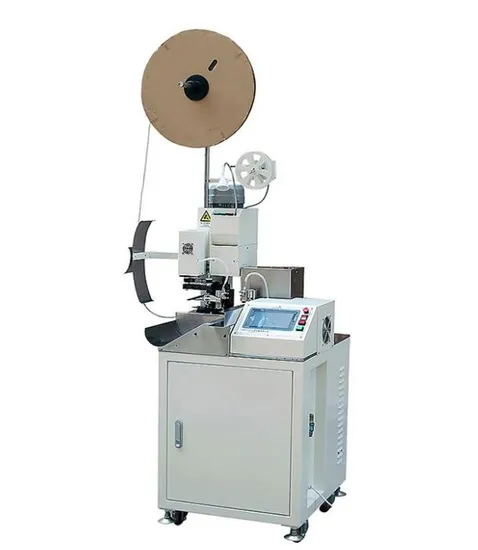

Fully Automatic Single Terminal Cutting Stripping and Crimping Machine

Product Description

Fully automatic single terminal cutting stripping and crimping machine X-2000


Detailed Photos


Product Description

Type	Automatic computer single head terminal crimping machine X-2000
Power	AC220V 50 / 60HZ ( single phase ) or 110V ,60HZ
Function	Wire cutting, both side stripping, single side stripping, single side crimping.
Capacity	4500 strip/h (within 300mm length)
Speed	>3000pcs/hours
Wire Processing range	AWG # 30 - AWG # 14
Wire Length	35mm-8meter
Cutting length	35mm-9999mm.
Cutting fine	Change range:1mm+ below cutting length 0.1%)
stripping length	1mm-30mm
Air pressure	0.5Mpa(5kgf/cm) About 200NL/Min
Detection device	It will alarm downtime when appears lack of abnormal, insufficient air pressure.
Pressure capacity	19600N(2T)
Twisting length	AWG # 20-AWG # 30 (4mm-8mm)
Machine size	530 * 530 * 1480(mm)
Machine weight	About 150kg

It can apply terminal model
