Hot Sale Stone Engraving Machine in China for Marble Cutting with CE

Product Description

Product Description

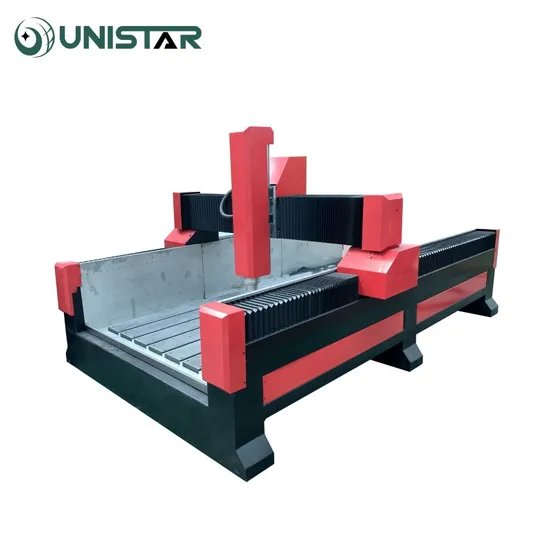

hot sale stone engraving machine in China for marble cutting with CE
The Stone CNC Router is mainly used to process the marble,granite and so on.It also can process the wood and metal materials.
It may take half a month to carve a stone manually, but with this machine, it can be completed in a few hours, which can greatly shorten the processing time and improve production efficiency.
Main Features
★Heavy machine structure, good bearing capacity, not easy to deformation. Special machine bed design allows it to carry more than 2000kg of materials.
★ The specially designed Z-axis can increase the unloading accuracy and completely solve the problem of Z-axis ball screw fracture.
★ X, Y, Z axis is equipped with waterproof and dust-proof system, which can protect all components, reduce the probability of machine failure, and extend the service life of the machine.
★ We use high-performance drive motors to ensure high speed and precision.
★The use of domestic well-known brand water-cooled spindle, low noise, good cooling effect, can adapt to long-term work.
★ High quality Taiwan HIWIN square rail, low wear, high precision.
★ Easy to use Mach 3 controller works with all industry standard CAD/CAM software
★ Z axis high-precision TBI ball screw, good transmission effect.
Product Parameters

Item	Standard Specifications USM1325
X,Y,Z Working Area for Panel	2500*1300*300mm
Spindle Power	5.5KW Powerful Water Cooling Spindle
X,Y,Z Traveling Positioning Accuracy	±0.025mm
Table Surface	Aluminum T-slot table
X,Y,Z Rail and Transmission	X/Y rack and pinion Z High precision TBI ball screw
Max. Rapid Travel Rate	30,000mm/min
Max. Working Speed	20,000mm/min
Drive Motors	Yako stepper motor and drivers
Working Voltage	380V 3 phase or custom made.
Command Language	G code
Operating System	Shanghai Weihong NC-Studio
Interface	USB
Software Capabilities	Vectric Aspire, Type3, Ucancam, Artcam, AlphaCam, Powermill,etc.
Running Environment	Temperature: 0ºC~45ºC Relative Humidity: 30%~75%

Detailed Photos
5.5KW High Frequency Water Cooling Spindle(7.5kw For Option) The M Series machine comes standard with a 5.5kw high frequency water cooling spindle. And is fully programmable with speeds from 6000 to 24000 RPM.
Rail and Transmission

The machine adopts Taiwan Hiwin square rail, which is more than twice durable. X and Y axis is drivern by rack and pinion. The Z axis is drivern by ball screw.
The Electronics Of The CNC Router All the electrical components are housed and wired in a electrical enclosure. This allows for easy access and service when needed. All wiring is tagged so that when service is required, the customer can easily navigate the cabinet. In addition, the cabinet serves as a work bench for the tools required.
Inverter

Shanghai Fuling inverter
Reliable quality, even in harsh environments can also work stably for a long time.
Machine Structure

Machine Structure is welded by thick steel tube , through special fine processing , whole-structure stable combined and good rigid, guarantee the carving accuracy, make sure no deformation after long time using.
Motor And Drivers

YAKO stepper motor and drivers
It has overheat protection and is safer. And it has low noise and high performance.
samples

Packaging & Shipping
Customer With Us
Many customers from all over the world come to visit our factory and cooperate with us. Our customers all over the world, Europe, Asia, America, Africa have our customers. If you have time, you are welcome to visit our factory, we will make your visit worthwhile.

Certifications

Why Choose Us

Jinan Unistar Machinery Co., Ltd is not only a company that sells Woodworking Cnc Router Machines, Fiber Laser Cutting Machine , CO2 Laser Engraving Machine , but also a production company that provides customers with excellent quality solutions. We take the interests of customers as the premise, customize and create the most suitable products for them, and provide the most satisfactory service. When working with us you'll find that we're pretty much Professional .Whether in machine quality assurance, business communication, or team after-sales service, you will enjoy the best treatment and service . Because we focus on results. For us, it's all about what adds value for you and your business. Above all, Trusted tech solutions

FAQ
Q: This is the first time I buy the machine, is it easy to operate?
A: We can provide the operation manual or video for guiding. If it is hard for you learning, we can also help you by "Team viewer"online, with telephone or Skype explain.
Q: How to choose a suitable machine?
A: You can tell us the working piece material, size, and the request of machine function. We can recommend the most suitable machine according to our experience. Q:How can I trust your company and your products?
A: The whole production procedure will be under regular inspection and strict quality control. The complete machine will be tested to make sure they can work very well before being out of factory. The testing video and pictures will be available before delivery.
Q: If machine have any problem after I ordered it, what could I do?
A: Free parts send to you in machine warranty period if machine have any problem. Free after-sales service life for machine, please feel free contact us if your machine have any problem. We will give you 24hours service from phone and skype. Q: Can I visit your factory?
A: Yes! We greatly welcome customers to visit our factory!
Q: What's your date of delivery?
A: For standard machine, about 15 working days; For customized machine, about 20 working day.
Q: MOQ?
A: Our MOQ is 1 set machine. We could send machine to your country port directly, please tell us your port name. There will be best shipping freight and machine price send to you.
