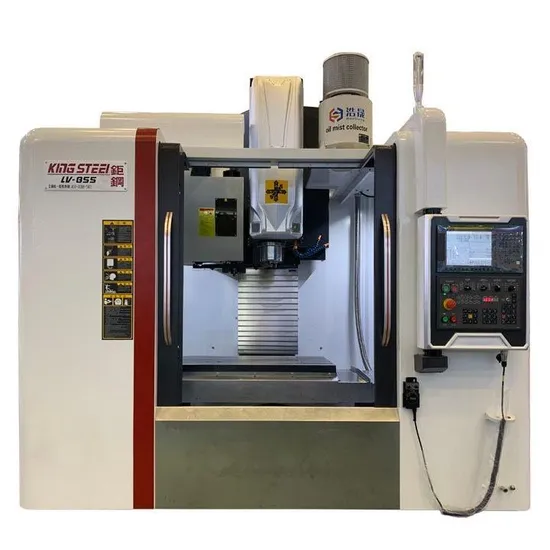

Taiwan Jugang M80A High Precision CNC Vertical Machining Center with CE

Product Description

Product Parameters

Model	LV-855A CNC machining center	MITSUBISHI M80A
Worktable	T-slot (Width x No. x Distance)	18mmx5pcsx90mm
	Max. loading weight	600kgs
Travel	X axis travel	850mm
	Y axis travel	550mm
	Z axis travel	550mm
	Spindle nose to worktable	105-655mm
Guide ways (HIWIN)	X linear wide/numbers/blocks	35mm roller/2pcs/4pcs P4 grade
	Y linear wide/numbers/blocks	35mm roller/2pcs/4pcs P4 grade
	Z linear wide/numbers/blocks	35mm roller/2pcs/4pcs P4 grade
Screws(HIWIN)	X/Y/Z screw specific	4016/4016/4016 C3 grade
Spindle (JUGANG cooperation with Taiwan ROYAL/KENTURN)	Direct spindle speed	12000rpm
	Spindle motor power	7.5/11KW
	Spindle taper	BT40
	No. of front bearings	NSK 4 pcs
	No. of rear bearings	NSK 2 pcs
3 Axes	X/Y/Z motor power	2/2/3KW
Feed	X/Y/Z feed speeds	48/48/48m/min
	X/Y/Z cutting feed	1-10000mm/min
Accuracy	Positioning accuracy	0.006mm Acc. VDI 3441 Std.
	Repeatability	0.003mm Acc. VDI 3441 Std.
Tool magazine	Tool quantity	24T
	Max. tool dia. (Full)	80mm
	Max. tool dia. (Empty)	150mm
	Max. tool length	300mm
	Max. tool weight	8kgs
	T-T time	1.8sec
Working conditions	Electricity	3Ф380V,50HZ,20KVA
	Temperature	0-40ºC
	Relative humidity	≤90%
	Air pressure	5-6 bar and 0.2m³/min
Dimension& Weight	Approx. outer dimensions	2600x2550x2650mm
	Approx. weight	5000kgs

We also have other models, such as LV-866,LV-1160, LV-1160,LV-1270,LV-1370,LV1380, LV-1580,LV-1690. You can choose different CNC control system with different price : Siemens, Fanuc,TAIWAN SYNTEC or others. Standard configration

Standard configuration

1. Spindle oil chiller

2. Rigid Tapping

3. Automatic power off switch

4. 3 colors alarm light

5. LED working lamps *2pcs

6. Cooling system (cooling pump*2)

7. Automatic micro lubrication for linears and screws

8. Separate hand wheel (MPG)

9. Electric box heat exchanger

10. Fully enclosed sheet metal

11. BT40-24T arm type tool magazine

12. Tool kit

13. Around spindle coolant and compressed air

14. Leveling screws and pads

15. Compressed air blow out through spindle

16. Chips disc and water tank

17. Back flush chip conveying

18. Water gun and compressed air gun

19. Standard packing

20. 3 Axes screw and linear covers

21. Ethernet interface

22. USB and CF card interface

23. Transformer(Specification as requirement)

24. 10.4'' screen LCD

25. Oil skimmer

Our Advantages
Spindle
JUGANG cooperation with TAIWAN ROYAL/KENTURN

TAIWAN HIWIN linear guide ways and ball screws

TOOL MAGAZINE
OKADA/JUGANG cooperation with TAIWAN AIMACH
The castings are made of HT300 cast iron material and MEEHANITE processing method with strong shock absorption ability.
It has gone through processes such as artificial aging, vibration treatment, annealing treatment, and natural aging (at least 6 months).
CNC controller systems available: FANUC, SIEMENS, MITSUBISHI, SYNTEC.
The accuracy of KING STEEL machines reaches Acc. VDI 3441 Std.
Through three-coordinate detection, it can be seen that every detail is accurate.
KING STEEL welcomes customers to visit our factory
Standard packaging
ISO & CE certificates
FAQ

Q1: How long is the warranty?A1: 12months for mechanical parts and 24 month for NC controller since customer receive the machine.Q2: Can we visit your factory before order?A2: Sure. You are very welcome to visit our factory. Besides, we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking. Q3: Can you provide training and on-site installation service?A3: Of course, but the travel expenses are provided by the customers.Q4: How about your quality?A4: KING STEEL began in Taichung City, Taiwan,all our parts come from Taiwan or other well-known brands. Our R&D center is in Taiwan and the machines are also developed by Taiwanese engineers. And we have ISO certificate, CE certificate. The quality of our machines has been recognized by many customers.
Q5: Can you provide customized machines?A5: Yes, we can design and manufacture according to your specific requirements. And we can also provide OEM services.
