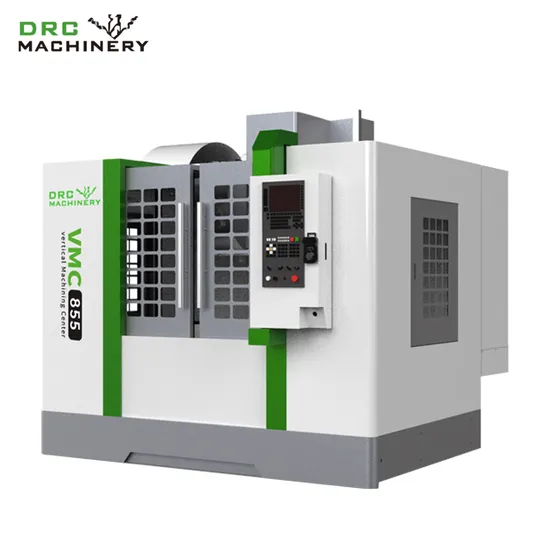

5 Axis Machine Center Vmc850 Vertical Milling Machine Taiwan CNC Machining Center
Basic Info.
Model NO.
VMC855
Application
Metal
Process Usage
Metal-Cutting CNC Machine Tools, CNC Non-Conventional Machine Tools, Metal-Forming CNC Machine Tools
Movement Method
Linear Control
Control Method
Closed-Loop Control
Numerical Control
CNC/MNC
Processing Precision
0.04~0.05(mm)
Performance Classification
High-End CNC Machine Tools
Certification
CE
Condition
New
X /Y/Z Axis Travel
800/500/500mm
Spindle Nose to Table Surface
120-620mm
X/Y/Z Axis AC Servo Motor
Torque N.M 15/15/22
Spindle Center to Column Surface
550mm
Table Size
1000×550mm
Transport Package
Packing in Seaworthy Wooden Cases
Specification
Dimension(L*W*H): 2800*2360*2450mm
Trademark
DRC
Origin
China
Production Capacity
500
Packaging & Delivery
Package Size
245.00cm * 210.00cm * 230.00cm
Package Gross Weight
420.000kg
Product Description
4 axis 5 axis metal cnc milling machine for metalVMC Machine Center Features: High quality resin sand Taiwan spindle Taiwan ball screw and locking nut Taiwan pressure cylinder Taiwan linear railway Japanese NSK bearing germany R+W coupling Automatic lubrication system Chip conveyor at optional
Machine Center Application: This VMC is suitable for mechanical processing and mold making .And it can adapt to the processing requirement from rough machining to finish machining .It can also finish many working procedures like milling ,drilling ,tapping ,boring ,etc.
| Specification | Unit | VMC855 | VMC1055 |
| Processing range | |||
| X axis travel | mm | 800 | 1000 |
| Yaxis travel | mm | 550 | 550 |
| Zaxis travel | mm | 550 | 550 |
| Spindle face to table distance | mm | 120-670 | 120-670 |
| Distance between spindle center | |||
| and column guide surface | mm | 613 | 613 |
| Worktable parameters | |||
| Worktable size (X) | mm | 1000 | 1000 |
| Worktable size (Y) | mm | 550 | 550 |
| Maximum load bearing of worktable | kg | 550 | 550 |
| Spindle parameters | |||
| Spindle speed | rpm | 10000/12000 | 10000/12000 |
| Feeding parameters | |||
| X/Y/Z axis rapid movement rate | m/min | 36/36/36 | 36/36/36 |
| Feed moving velocity X,Y,Z | mm/min | 1-10000 | 1-10000 |
| Servo motor specification | kw | 3*3*3 | 3*3*3 |
| ATC paremeters | |||
| ATC capacity | pcs | Knife wall type 24 | Knife wall type 24 |
| Machine size | |||
| Length of machine | mm | 2400 | 2400 |
| Width of machine | mm | 2050 | 2050 |
| Height of machine | mm | 2250 | 2250 |
| Weight of machine | kg | 4060 | 4060 |
