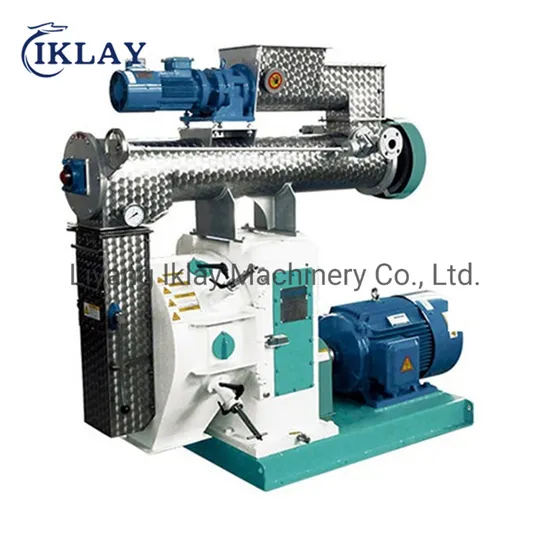

5tph Szlh350 Animal Feed Pellet Mill Chicken Feed Pellet Mills Poultry& Livestock Feed Pelleting Machines

Product Description

1. Technical Parameter

Item		Technical parameters and performance index
		SZLH250	SZLH320	SZLH350	SZLH400	SZLH420	SZLH508	SZLH558	SZLH678	SZLH768
Capacity(t)		1-1.5	2-5	2-7	3-12	3-14	4-20	4-22	8-28	10-35
Power(kw)	Main machine	15	37	55	75/90	90/110	110/132/160	132/160/200	200/220/250	250/280/315
	Screw feeder	0.55	0.75	0.75	1.5	1.5	2.2	2.2	2.2	2.2
	Conditioner	2.2	2.2	3	5.5	5.5	7.5	7.5	11	11
Inner diameter of die(mm)		250mm	320mm	350mm	400mm	420mm	508mm	572mm	678mm	768mm
Effective width of die(mm)		120mm	120mm	120mm	120mm	120mm	150mm	200mm	180mm	210mm
Pellet size(mm)		1-12mm	1-12mm	1-12mm	1-12mm	1-12mm	1-12mm	1-12mm	1-12mm	1-12mm
No. Of press roll		2	2	2	2	2	2	2	2	2

2. Features 2.1.Screw feeder,Conditioner, Chute and Pressing door of this feed pellet machine are full polished stainless steel, more durable and corrosion resistant.

2.2.Screw feeder is controlled by frequency conversion inverter to control feeding speed& capacity and ensure feeds quality, and equipped with permanent magnet to remove iron impurities.

2.3. Applicable for all kinds of poultry feeds/ livestock feeds/ high grade aqua feeds. Single, double or three layers of conditioners are optional. Conditioners with several steam adding inlets, to ensure fully ripening and gelatinization, with good conditioning effect.

2.4.Adopting high accurate and efficient gear drive,with an output of about 20% higher than belt drive,and ring die adopts the quick removing clamps.

2.5. Big gear and pinion shaft adopt the carbonizing quenching with high accuracy, to ensure smooth driving, low noise and long service life.

2.6. Main spare parts, such as ring dies& rollers etc. are produced strictly according to high quality standard. Ring dies are produced by automatic CNC gun drill machine&coutersinking machine, heat treatment by vacuum furnace, with long service life and making good feeds.

2.7.Configurable oil circulating cooling system, in order to enhance the cooling and lubrication effect of the main drive system of bearing. The device can work smoothly for a long time.
3. Photos of feed pellet mills and feed plant
4. Delivery
Liyang Iklay Machinery Co., Ltd. is a professional manufacturer and supplier specialized in designing, manufacturing, installing and commissioning: Poultry&livestock&aqua feed production line, Biomass pellet production line, Cat litter production line; Spare parts for hammer mill& pellet mill, such as ring dies, rollers, hammer blades and screens.
Our main products include precleaner, hammer mill, mixer, pellet mill, cooler, screener, automatic packing machine other auxililary equipments and spare parts etc. We have more than 10 years rich experience in the field.
We have been committed to providing customers with valuable services and high-quality products to satisfy your needs. It is for this reason that we have become a reliable and long time partner for our customer. Looking forward to our cooperation and realize win-win.
