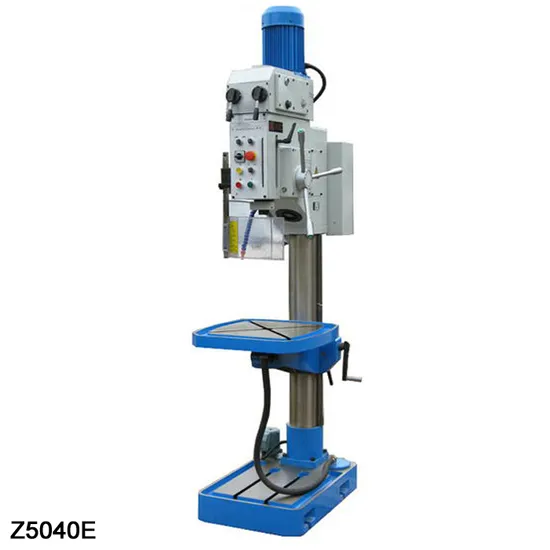

New Metal Vertical Drilling Machine Price (Z5040E)

Product Description

New Metal Vertical Drilling machine Price (Z5040E) Product Description

Feature:
·2 speed strong power motor
·Automatic take out tools
·2 steps power feed 0.1-0.2mm/rev
Drilling,tapping

Product Parameters

Model	Z5040	Z5040E
	FEED BY MANUAL	Electronic power feed
Max.drilling capacity	40
Threading in steel & last iron	M20&M24
Spindle travel	180mm
Spindle taper	MT4
Spindle power feed	2steps/0.1-0.2mm/rev
Spindle speed	50-1450rpm
Width of T-slot	18mm
Max.distance from spindle axis to surface of column	350mm
Max.distance from spindle end to surface of table	770mm
Max.distance from spindle end to surface of base	1210
Table size	560×560
Base size	730×500
Motor power	0.85/1.5kw
NW/GW	465kg/615kg
Packing size (L x W x H)	2270×690×1100mm

Standard accessories: Free
spindle speed:50-1450RPM
2 speed strong power motor
Automatic tools ejectors
2 steps power feed 0.1-0.2 mm/rev
Driling and Tapping fuction
Square Worktable 560*560mm
with Coolant and work light Optional accessories:Extra
L- type worktable
Detailed Photos

Warranty:
What about the spare part if the machine break down?
==about the machine break down, normally our policy will be as the under way
1) Our quality guarantee time is 12 months since the machine on board
2) During this period, if the machine break down owing our machine itself quality problem, we will prepare the spare parts and send to you by free within 5 days. all these will be by free.
3) If the break down is caused by the mis operation, we of course will supply you the spare parts, but we have to charge you the costs prices.
