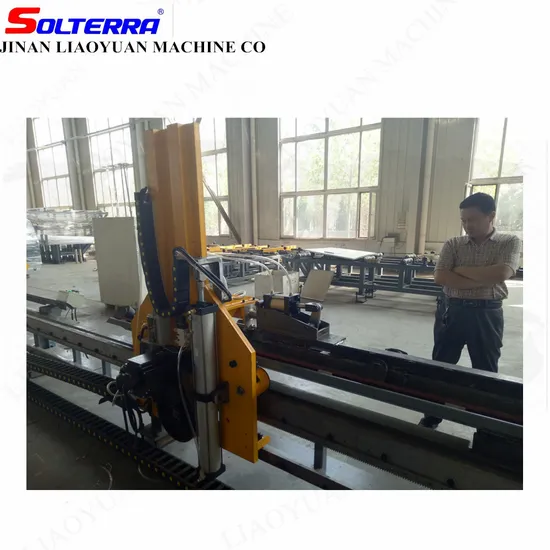

CNC Angle Steel Drilling Marking Cutting Machine for High Voltage Tower

Product Description

CNC Angle Steel Drilling Marking Cutting Machine for High Voltage Tower
MACHINE APPLICATION

1. The production line is professional automatic equipment for the marking and drilling of angle steel for power and telecommunication angle steel towers.
2. Max Main Shaft speed can be 6000(r/min)
3. Angle size can be 140x140x10-250x250x32

TECHNICAL PARAMETERS

Model	APLH-2532
Function	Marking, Drilling
Angle Size	140 x 140 x 10 ~ 250 x250 x 32mm
Material	Q235 Q345, Q420
Nominal marking force	1030KN
Number of character group	1
Dimensions of character	14 x 10x 19
Drill number of each side (PCS)	3
Main shaft speed	6000 (r/min)
Diameter of drilling hole	Φ17.5-Φ40(mm) High-speed steel twist drill φ17.5-φ26(mm) Carbide drill
Taper of drilling spindle(mm)	BT40
Range of Stadia	50-220mm(stepless adjustment)
Number of CNC axis	9
Overall dimensions	30 x9.5 x3.2(m)
Net weight (KG)	Apr. 32000

MACHINE FEATURES

1.This Machine has 9 CNC Axes, and all the key parts are all imported famous brand, thus ensuring good reliability and positioning accuracy. The movement-oriented linear guides of the drilling head use the Roller linear guides, features of good rigidity, good capacity of dynamic and static load capacity. Thus improving the the life of workpiece and the drilling tools.
2.Adopting Taiwan high-speed drilling spindle, equipped with 6 pics of special inverter motor of strong overload capacity,. The drilling speed can be 200m/min, Having a disc spring automatic broach mechanism, hydraulic cylinder loose knife, very easy to replace the handles.
3.The Drilling spindle is driven by Servo motors, Transform of the rapid feeding, working feeding and rapid withdrawing of the spindles can be finished automatically.
Pre-Sales Service After-Sales Service
* Inquiry and consulting support. * Training how to instal the machine,
* 24 Hours on services Phone, email and in person support training how to use the machine.
* View our Factory. * Stay in touch with the customers even after
* Electrical & mechanical technical support the deal. never ignore their calls.
* Parts ordering * Engineers available to service machinery
overseas.
We have professional after-sales service engineers provide the perfect service for the installation, testing, training for the customers. Also if the customer need help,we could provide timely online service, our professional engineer can help customer solve the problem by remote control.


JINAN LIAOYUAN MACHINE COMPANY INFORMATION
Jinan Liaoyuan Machine Co is located in Jinan, Shandong province of China. Our company is a one of the world leader Manufacturers in CNC machine tools. Jinan Liaoyuan has focused on top quality CNC machine products for over 20 years in China. We started as a small operation, but now have become one of the leading suppliers in the CNC machine industry in Shandong. We are a manufacturer and trader specialized in the research, development and production of all kinds of CNC machine, such as: CNC Angle Steel Punching machine, CNC Angle Steel drilling machine, CNC Plate Drilling Cutting machine, CNC Beam Drlling Marking Beveling machine, CNC Band Saw Cutting Machine and all kinds of CNC machine center and so on. Jinan Liaoyuan Machine provide turkey solution and perfect service to satisfy your production needs.
JINAN LIAOYUAN CNC HISTORY * Founding period (1991-2008)
* Continuous growth (2008-2013)
* Innovation expansion (2013-2017)
Today Jinan Liaoyuan Machine is an international company that applies innovative technology solutions for sustainability in the energy and environment sectors, generating electricity from renewable resources. We create long term value for our shareholders through management that is characterized by the promotion of entrepreneurship, social responsibility, transparency and management diligence.

The machines manufactured by JINAN LIAOYUAN are being used in the fields from steel structure to angle towers, metal construction, pipe, pressure vessels, ship construction, bridge construction, wind-energy, heat exchanger industry fields, and they are also offered for usage in many other different fields.



CUSTOMER FEEDBACK

FAQ

Question 1. Are you a Manufacturer or a trading company?
Answer 1. We are not a trading company,We are the top Machine Manufacturer,Which involves Raw materail casting,Machine body processing,Machine assembling,Painting,Machine quality Inspecting and etc.
Q 2. What is the minimum quantity for order ?
A2: Normaly One Set.
Q3. Do you have stock product ready to deliver?
A 3. We have many machines in stock, So We can guarantee the fast delivery time and make sure you can check the machine on LIVE-DEMONSTRATION at any time.
Q4. How do you deliver the finished products?
A 4, For FCL, We delivered by Sea
For LCL, We delivered by Sea and by Plane for only urgent requirement
For Spare Parts,We delivered by Courier,TNT, FEDEX,DHL,and Etc.
Q5,How can you guarantee the after-sales service?
A 5, We have a first-class engineers for the machine installation, tranining, and after-sales, we also have branch office in ovesea to keep the good after-sales service,They have a professional work team with exquisite experience.
