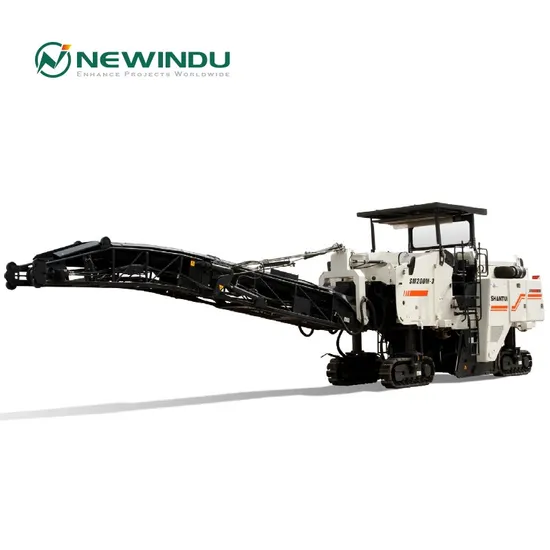

2020 New Product Large Asphalt Pavement Maintenance Crawler Milling Machine Sm100t-3

Product Description

Large Asphalt Pavement Maintenance Crawler Milling Machine Shantui road milling machine is one large-sized crawler road milling machine that integrates the mechanical, electric, and hydraulic technologies to well meet all kinds of needs in road maintenance and cater to the development trend of modern road milling machine towards large-scale in terms of specification and automation and intelligence in terms of control. This product is applicable for the large-area removal and stripping operations of pavement diseases, including expressways, asphalt roads of various grades, airport runways, and harbors and ports, as well as the texturing of cement roads and is one indispensable large-size road maintenance machine in modern mature road maintenance processes.
Out products:
1) ALL kinds of agricultural machinery
(road roller: single drum vibratory roller, tandem drum vibratory roller, pneumatic roller, light compactor, static three-drum
roller. motor grader. asphalt concrete paver. cold mining machine. soil stabilizer. asphalt mixing plant. stabilized soil mixing plant , etc)
2) All kinds of construction machinery
(Wheel loader, excavator, truck, folklift, cranes, paver, road roller etc.)

Parameter name	SM100T-3 (Standard version)
Performance parameters
Operating weight (Kg)	15200
Transport weight(Kg)	14500
Maximum milling width (mm)	1000
Maximum milling depth (mm)	200
Engine
Engine model	SC9D
Rated power/rated speed (kW/rpm)	160/2200
Overall dimensions
Overall dimensions of machine (mm)	12210*2385*2545
Driving performance
Traveling speed (km/h)	0-8
Working speed (m/min)	0-30
Conveyor System
Width of conveyor belt (mm)	500
Swing angle of conveyer (Rightward/leftward) (°)	25/20
Tank capacity
Fuel tank (L)	540
Working device
Number of milling cutters (Piece)	81

Drive system ♦ SD-EC electronically controlled engine conforms to the China-III non-road machinery emission regulation, featuring high intelligence and efficiency, high parts universality, and low maintenance cost. ♦ The energy-saving technologies, including automatic idling of engine, are utilized to realize better fuel economy, low emission load, and high working efficiency for the whole machine. ♦ The hydraulically-driven milling drum features simple structure and high reliability. Milling rotor assembly ♦ The new milling rotor is equipped with highly wear-resistant quick change cutter holder to realize high operating capability, with the milling depth up to 200mm. ♦ A powerful sprinkling system is installed at the milling rotor. ♦ The side plates on two sides are hydraulically lifted. ♦ The optional economic and finish milling drums are offered to meet diversified operation requirements. Traveling system ♦ The traveling system adopts full-hydraulic four-wheel drive to achieve powerful gradeability and drive onto and from the flat-bed transport vehicle by self-propelling more safely. ♦ The working pressure of traveling system is >375bar, featuring powerful traction capability. ♦ The traveling system incorporates the forced distribution function to effectively prevent slip. ♦ The traveling speed is up to 8km/h. ♦ The right rear column is capable of 180º rotation for curb operations. Easy maintenances ♦ The structural parts inherit the excellent quality of Shantui's mature products. ♦ The large opening design for engine hood and side doors provides a spacious room for maintenances. ♦ The core electric and hydraulic parts adopt imported products, featuring stable and reliable quality and extremely high reliability. ♦ The external fuel/oil filter and grease nozzles are installed in hanging manner to ease the maintenances and replacement. High intelligence ♦ The CAN bus digital network control mode is applied to effectively guarantee the automatic control and protection for all motions of the machine. ♦ The installed human-machine interfaces can centrally display the digital working parameters of the machine. ♦ The malfunction self-diagnostic information and the warning and prompt information realize safer and more efficient operations of the machine.
