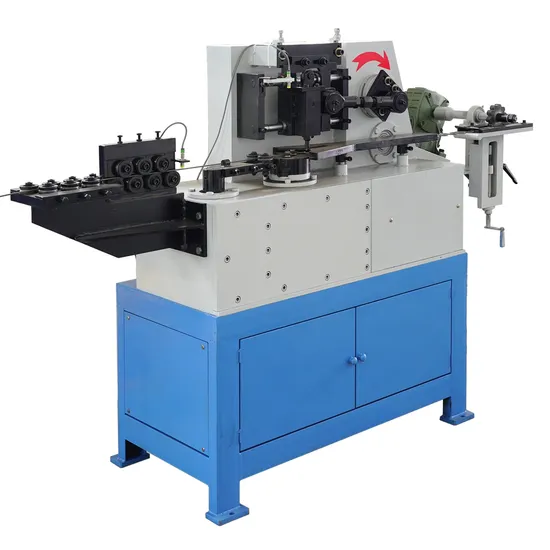

Zig Zag Sofa Spring Making Machine

Product Description

Product Description
This line is for producing zig zag springs for sofa, car chair and other S shaped springs manufacture.
Features: easy and convenient operation, stable production and high efficiency.
we have 2 lines for option, one is to produce zig zag springs and winding to coils fully automatically. Another is to produce zig zag springs, cutting to length , bending the arc and punch to pieces fully automatically in line.
Product Parameters

Model	GT-ZM50	GT-ZMPL-50	GT-SMPL-50	GT-SMPW-50
Name	snake spring machine	forming &winding line	Flat snake spring line	Arc snake spring line
Wire size	1.5-4.5mm	1.5-4.5mm	1.5-4.5mm	1.5-4.5mm
Feeding length	unlimited	unlimited	unlimited	unlimited
Production rate	(1-10m/ min) 310 wave crest /min	(1-10m/ min) 310 wave crest /min	(1-10m/ min) 310 wave crest /min	(1-10m/ min) 310 wave crest /min
Forming motor	1.2Kw 2.2KW	1.2Kw 2.2KW	forming1.2+2.2 KW punching1.5 KW flat 1.1KW	forming1.2+2.2 KW punching1.5 KW arc 1.1KW
Wave Peak	28mm-50mm	28mm-50mm	28mm-50mm	28mm-50mm
Wave Width	16mm-60mm	16mm-60mm	16mm-60mm	16mm-60mm
Dimensions (LxWxH)	220*67*136cm	270*71*161cm	220*67*136cm 120*105*197 130*121*145	220*71*136cm 120*105*197 130*121*145
Weight	920kg	1400kg	2100kg	2100kg

Detailed Photos
Hot products
After Sales Service
Service:★★★★★
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to install the machine, training how to use the machine.
* Engineers available to service machinery overseas. Packaging & Shipping
