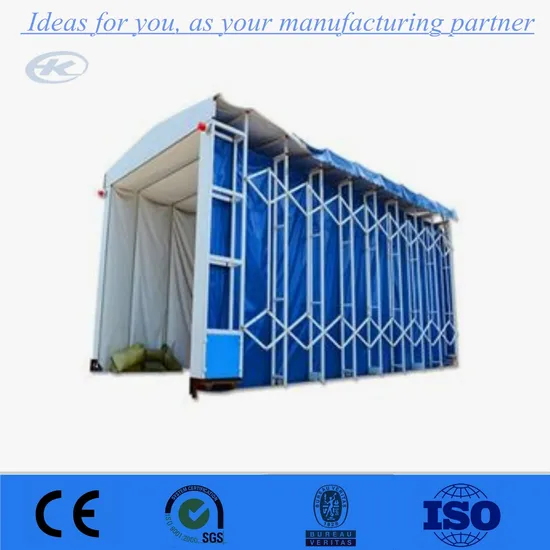

Auto Paint Oven Telescopic Room Removable Retractable Paint Room Mobile Spray Booth

Product Description

Product Description Retractable painting booth
Retractable painting booth is a special booth device which can be spread as enclosed or semi-enclosed working room when painting, while it can also be retracted to save footprint when not painting. For large and heavy work-piece that is difficult to be conveyed, retractable spray booth is a good choice to solve this problem. It can greatly simplify the production process of using cranes to convey large and heavy work-pieces back and forth. Its dimensions can be adjusted according to the work-piece sizes, which helps fully utilize the production site and operation areas.
Advantages Of Retractable Painting Booth
1. Nylon fiber mat,durable,non-deformable,waterproof and anti-corrosion,anti-exposure.
2. Double-side double motor,equipped with reducer,smooth expansion and contraction.
3. Interior equipped with water curtain cabinet, effectively purify paint mist.
4. The use of high-quality square steel pipe expansion joints,strong bearing capacity,structural stability
5. Size.color can be customized
6. Explosion-proof lighting system
7. Voltmeter.push button switch,emergency stop,multiple circuit protection.
Product Parameters

FOLDABLE PAINTING BOOTH

Outside dimension:22100×8500×8750MM including front inlet fan height 0.6m

Inside dimension:20000×8000×7200MM

1: Main door: ROLLING DOOR, 8000X7850mm(WXH)

2: Exhaust system: 1 set 22KW 4-72 fan, motor outside, air capacity: 29720m3/H

3: Heating system: NONE

4: Lighting system: Ceiling light 3ROWS 18W LED LAMP, 24SETS.

5: Rectangular tubes: 80*40*2MM The Parallelogram mechanism 3 sets

6. Parallelogram slide slot: 50*25*2MM

7. Tent fabric : > 0.4mm thickness Flame retardant cloth

8. The motor for rolling door: 1kw. Speed: 1:120; control way: Manual + wireless remote control, the walking unit mechanism that can be controlled manually and also by remote, if in case there is an obstacle in its way it will give an alarm. The Rail of the walking mechanism have it in ground, will provide civil work drawings.

9. Dual drive walking reducer: 2.2kw/set, speed: 1:60, 8-12m/min. control way: Manual + wireless remote control

10: Exhaust pipe 10M, Rainproof pipe 1pcs, 1pcs bend

11: Total current: about 100A, total power 48.5kw

12: Back wall and the filtration units plus the filter material in use. Paper filter.

13: The color of these links and mechanisms, they are galvanized steel tubes, will powder coated for color, can choose different color for the parallelogram and the straight pillars.

14: Inlet fan: 3 sets WQ-1500 fan, each set 1.5kw, 24000m3/h, total 4.5kw, 72000m3/h.

Application Area
(1) Closed or semi-closed spray booth and spray paint drying spray booth (2) Polishing room (3) Clean assembly room (4) Clean spray booth (5) Vehicle and equipment maintenance room (6) drying room, telescopic mobile roof (7) Treasury (goods, vehicles, aircraft, etc.) (8) Other workplaces that require temporary closure or semi-enclosure, such as rainproof work rooms (9) Auxiliary configuration includes: lighting fixtures, emergency exits, warning safety devices, exhaust devices, dust exhaust gas purification devices, hot and cold air supply devices, air conditioning devices, and the like. Applications for telescopic mobile paint booths include machinery, electronics, ceramics, furniture, construction, marine, aerospace,and more. Product Photo Show
Packaging & Shipping
Company Profile Qingdao Evertech Industry Co., Ltd. is a professional pressure vessel designer, manufacturer and exporter. We have manufacturing licenses for ASME U, ASME U2,NB,PED, D1, D2 and A2 pressure vessels. Composed of more than 20 senior experts and professional engineers, the research and development team, with more than 20 years of professional experience, is committed to product design, development and program optimization, and can provide high-quality solutions according to users' requirements in different operating conditions. Company has cover an area of 70000 manufacturing base and 15000 modern manufacturing plants, can provide customers both at home and abroad with composite autoclave, high pressure autoclave, high pressure reactor, AAC autoclave, deaerator, pouring tank pressure vessel products such as more than 800 sets, pressure vessel head more than 20000 sets high quality products and services, won widespread praise.
100% Real ManufacturerMarkets:Mainly sold to Europe, America, South America, India and other countries.
Factory and certificates:
FAQ1. Are you manufacture or trading company?
We are manufacture; our factory is located in Qingdao.

2. How much capacity can you treat per booth at a time?
It is up to the diameter and length of the equipment designed by your demands.

3. Is the control system manual, semi-automatic or full-automatic?
Our control system is full-automatic operation system.

4. Can we install the equipment by ourselves?
Of course, we will provide you with detailed installation information.
