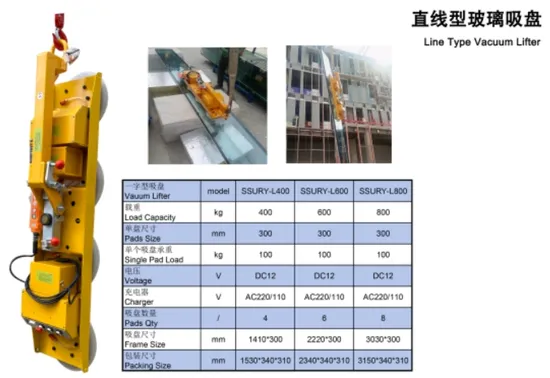

Line Type Vacuum Lifter Peumatic Electric Suction Sucker 600kgs

Product Description

1. Sealed cover for components protection, safe and reliable. Usually cooperated with bridge crane to use in glass deep processing and handling job, or with cantilever crane to use in glass curtain wall installation job;
2. Adopt DC type vacuum pump and high quality maintenance-free battery, no need the air source or power supply during use;
3. Panasonic digital display vacuum pressure switch, battery fuel gauge, clearly monitor the safety use;
4. With vacuum pressure auto supply system, during handling glass, ensure the whole vacuum system maintained at a relatively constant safety pressure value;
5. Equipped with the power-cut but pressure-keeping device and alarm device. If power failure accidently, the pressure-keeping function can extend the handling time and make the use safer;
6. Equipped with 12V backup battery, can be replaced in time to ensure the progress of the project.
It's a very compact vacuum lifter for the installation of glass and sandwich wall panels in a fast and efficient way. For fast, easy and hassle-free installation of horizontal and vertical wall panels. This handy lifter can be used both indoors and outdoors, and is easily transported in a passenger car.
Features: rotatable through 360 degrees with locking facility at each 90 degree; tiltable through 90 degrees.
Fork mounted vacuum lifting attachments
Battery self powered vacuum lifting attachments can safely and easily be attached directly to the end of the fork, to make a practical installation device for glass, metal, concrete slabs, plastics and laminates etc., widely used in the factory, warehouse or on site to allow for safe and efficient glazing of glass and windows weighing upto 800kgs.
Battery self powered, fully integrated and independent power supply to drive the equipment;
Electric floor crane combines the advantages of a stationary crane and propelled truck, providing the economy and efficiency of material handling.
This equipment with following features: low noise and no pullution, with adjustable support legs, comfortable operation and convenient charge, flexible, reliable operation, big wheels design, easy for outdoor use.
*Double sstem control, one vacuum system for working and one for alternate;
*American Thomas vacuum pump, Italy Metalrota heavy type driving wheel, Swiss Bucher power unit and also the intelligent maintenance-free battery for optional. Without air source or power supply, it can achieve electric walking, lifting, lowering, taking and releasing air by electrical. Manually rotated 360 degrees in the vertical side, and manually rotated 90 degrees in the horizontal side. Electrical roatating, side turning and remote control for optional.
*with Japan Panasonic digital display vaccum pressure switch and battery fuel gauge, clearly monitor the safe operation of the equipment.
*With vacuum pressure auto supply system to ensure the whole vaccum system maintained at a relatively constant safety pressure value, if catch the unexpected power failure, the pressure holding function can extend the emergency handling time, safer to use.
*Adjustable design, can be changed the poistion of the suction cups and assembled in various ways according to needs, each suction cup equipped with a seperate control valve, can handle glass of different shapes and sizes.
*Suitable for curtain wall, doors, windows installation jobs.
*Electric glass stacker combines the advantages of a forklift and vacuum lifter. The namipulator adopts the principle of vacuum suction, which indludes the functions of electrical lifting and falling, electrical suction and release, electrical tilting. Also the functions of electrical side shipt, electrical rotation and remote control for optional. It can easily realize the moving and handling of glass.
*The machine is light and flexible in operation, and it is a new type of glass handling machinery with energy saving, ghigh efficiency and environmental protection. it is widely used in glass door and window factories, curtain wall glass installation and glass sheet transportation, fully reflects its excellent flexibility, stability and environmental protection performance.
