High Speed Automatic Wood Stringer Pallet Notching Machine for Pallet Factory

Product Description

SF7011 High quality cnc notching machine Product Description
Feature SF7011 single head wood pallet notching machine machine is used for making notching for American stringer pallet, so that let forklift insert easily. Max. notching width can be 304.8mm, normal notching width in market is 228.6mm, we will change cutter quantity to change the notching width.
Notching depth Max. 60mm, we use different depth backing plate to adjust the notching depth.
Our cutter is indexable spiral cutter, every cutter have 4 heads, every head have 2 blades, can use two times, cutter no need change, just change the cutter head, thus to save cost during longtime working. Advantages
Easy to operate, high efficiency, safety for worker Product Parameters

Model	SF7011
Operator	1 person
Power	1 motor 15kw
Voltage	380v 50Hz 3Phase
Working length	800-1350mm
Working thickness	Max. 150mm
Notching depth	Max. 60mm
Notching width	Max. 228.6mm
Cutter quantity	2pc side cutter + 14pc middle cutter
Cutter width	Side cutter 25.4mm Middle cutter 12.7mm
Cutter head quantity	4pc in each cutter (Each cutter head have 2 cutting edges)
Productivity	About 600pc/hour
Air pressure	0.6-0.7Mpa
Machine dimension	2370*1140*1155mm (Working) 1420*1170*1330mm (Packing)
Machine Weight	675kg
Control system	Siemens PLC
Exhaust duct	1pc diameter 150mm
Cutter type	Indexable
Cutting radius	25.4mm

Detailed Photos
Control panel

Button control, simple and convenient
Start button Control the notching cycle, double hand control.

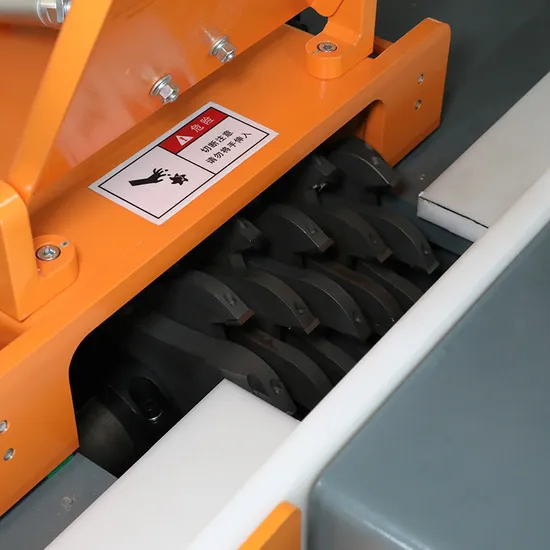

Cutter head

Side cutter and middle cutter, both with 4pc cutter head.
Cutter spindle
Change cutter width to adjust notching width
Standard notch
With round corner
Special notch
With straight corner
Safety cover
To protect operator and the machine
S chneider electric parts
longer life, better quality

150mm diameter dust collection port.

Related Products

SF7011	Single Head Notcher
SF7013	Double Heads Notcher
SF7013S	Double Heads Notcher & In-feeder
SF7030	Wood Pallet Chamfer
SF7041	Pallet Corner Rounder
SF6060	Automatic Cross Cut Saw

Packaging & Shipping
1) The whole machine will be disassembled into main three packages.
2) Machine packed with wrapping film and fixed by plastic belt.3) Packing the machine in 1 plywood box.
Company Profile
Our Company
HICAS group is one leading manufacturing and exporting company of wood working machine in China. We are committed to provide one-stop service to our customers all over the world.
HICAS was established in 2003 with two manufacturing centers in Foshan and Qingdao, covering about 40,000 square meter.
1.Founded in 2003.
2.Owns 2 factories manufacturing nailess plywood box machine, wood pallet machine,wood crate machine, nailless plywood box.
3.Owns 70% Market Share(Nailless plywood box machine) in China.
4.Expertized in R&D, Manufacturing, Marketing,Training, and Service.
5.Professional in consultation of Factory construction and Processing Technology, and Technical Improvement Training.
6.Supply Technical Solution base on Cost Analysis and Optimal Allocation.
7.Customer and feedback.
FAQ
Q, What's the cutter size
A, diameter 254mm, thickness 12.7mm and 25.4mm.Q, SF7011 is single head, do you have double head notching machine?A, Yes in below related machines you can find model SF7013 double heads notching machine.Q, We want to have automatic feeding tableA, Can't at present.Q, How long time for the machine production?A, Normally 30-50 working daysQ, Can you customize?A, Can customize voltage standard, others welcome discuss with us.
