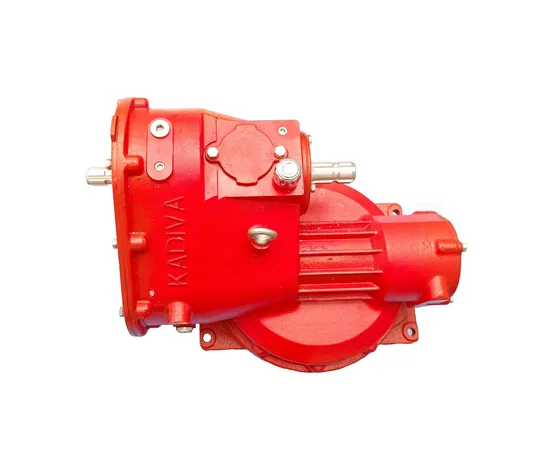

Agricultural Power Harrow Factory Customized Klf-Dx300 Driven Rakes Machine Vertical Blade Rotary Tiller Gearbox
| US$200.00-500.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
KLF-DX300
Application Field
Agriculture, Livestock, Aquaculture, Forestry
Farming Policy
Dry Cultivating Machinery
Power Source
Tractor
Operation
Soil Preparation Machinery, Continuous Running Operation
Traction Type
Traction
Drive Type
Gear Drive
Arbor Configuration
Horizontal Axis
Certification
ISO
Color
Red
Warranty
Warranty
OEM
Available
Ratio
2.47:1/2.63:1
Input
200HP
Input r.p.m
1000
Output r.p.m
405/380
Input N.M
1404
Output N.M
3500/3700
Kw
147
Transport Package
Crate
Specification
Cast iron
Trademark
KADIVA
Origin
Zhejiang China
HS Code
8483409090
Production Capacity
50000PCS/Month
Product Description
Agricultural Power Harrow Factory Customized KLF-DX300 Driven Rakes Machine Vertical Blade Rotary Tiller Gearbox Product DescriptionKLF-DX300 vertical blade rotation Power driven rake Gearbox
This product is used in the power-driven rake main transmission gearbox. It is derived from European and American design concepts. The main transmission box drives the transfer case gear and rotates the rake blade for operation. Power-driven rake uses vertical blade rotation to effectively protect the soil from nutrient loss. The design range of KLF-DX300 is 3.5 meters to 4.5 meters. It adopts a manual shifting method and is suitable for tractors with different speeds. This design can switch between 4-6 output speeds and has a wider range. Product Parameters
Detailed Photos
