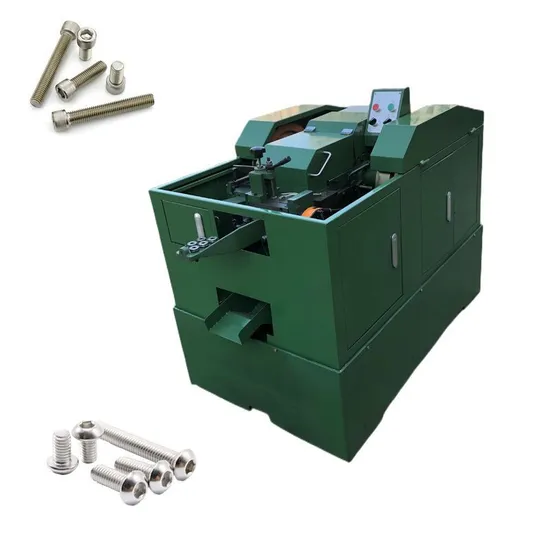

Advanced Sensing Technology Pre-Programmed Settings Drywall/Slotted Head/Self Tapping Screw Making Machine Cold Heading Machine

Product Description

Product Description

Functions
This equipment adopts cold heading way to make the wire rod upsetting by double-click the whole mould form. Finished Feeding, straightening, cutting material, forming, discharging by one machine.
Application of equipment
It is used for chipboard screws, drywall screws, self drilling screws, self tapping screws, wood screws, machine screws, furniture screws, electronic screws, precision screws, fasten piece used for car and motor car, nuts, spring washer, rivets, pin bolt and split pin, steel structure used rivets and fasten pieces, kinds of metal special-shaped pieces etc products' upsetting and forming.

Technical Parameters

Modle	X15-30G	X15-37G	X15-50G	X15-63G	X15-76G	X15-100G	Z32G-51
Main Motor KW(4HP)	3	3	3	3	3	3	5.5
Diameter (mm)	2.3-5	2.3-5	2.3-5	2.3-5	2.3-5	2.3-5	2.3-5
Length (mm)	6-30	6-37	6-50	6-63	6-76	75-100	Max.15
Main Die (mm)	Φ34.5*50	Φ34.5*55	Φ34.5*67	Φ34.5*80	Φ34.5*100	Φ34.5*115
1stPunch (mm)	Φ31*73	Φ31*73	Φ31*73	Φ31*73	Φ31*73	Φ31*73
2rdPunch (mm)	Φ31*73	Φ31*73	Φ31*73	Φ31*73	Φ31*73	Φ31*73
Cutting Die (mm)	Φ19*35	Φ19*35	Φ19*35	Φ19*35	Φ19*35	Φ19*35
Cutter (mm)	10*32*63	10*32*63	10*32*63	10*32*63	10*32*63	10*32*63
Speed (pcs/min.)	260-300	190-215	180-195	130-150	120-135	85-100	Max.800 adjustable
Weight(kg)	2300	2300	2300	2300	2300	2300	4200

Modle	X065	X0685	X06127	X0860	X08100
Main Motor KW(4HP)	4	4	5.5	7.5	7.5
Diameter (mm)	Max.6	Max.6	Max.6	Max.8	Max.8
Length (mm)	Max.50	Max.85	Max.127	Max.60	Max.100
MainDie (mm)	Φ45*108	Φ45*108	Φ45*150	Φ60*128	Φ60*128
1stPunch (mm)	Φ36*94	Φ36*94	Φ36*94	Φ38*107	Φ38*107
2rdPunch (mm)	Φ36*60	Φ36*60	Φ36*60	Φ38*107	Φ38*107
Cutter (mm)	10*25	10*25	10*25	12*28	12*28
Speed (pcs/min.)	130	80	70	60-100	60-80
Weight(kg)	2200	2200	2500	4000	4200

Processes and Machines Needed
Products Show


Finished Products



Company Profile
Ronen expertise can be found in the most varied
Fastener Equipment end products.
We reliably accompany you through everyday life. Mostly unnoticed. After all, our precision-Fastener parts and Cold Forging Technology are embedded into the products of our customers and, although not always visible,they fulfil mission-critical functions there.



FAQ

1. who are we?
We are based in Hebei, China, start from 2018,sell to Domestic Market(53.00%),Eastern Europe(10.00%),Eastern Asia(6.00%),Mid East(6.00%),Southeast Asia(5.00%),Western Europe(5.00%),Africa(5.00%),South America(3.00%),Southern Europe(2.00%),Northern Europe(2.00%),North America(2.00%),Central America(1.00%). There are total about 201-300 people in our office.2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
cold heading machine,cold forging machine,bolts nuts machine,screws machine,threading machine
4. why should you buy from us not from other suppliers?
Over 20 years of experiences in designing and manufacturing high level of metal forming machines
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,DDP,DDU,Express Delivery;
Accepted Payment Currency:USD,EUR,JPY,CNY;
Accepted Payment Type: T/T,L/C,Western Union;
Language Spoken:English,Chinese,Spanish,Portuguese,French,Russian
