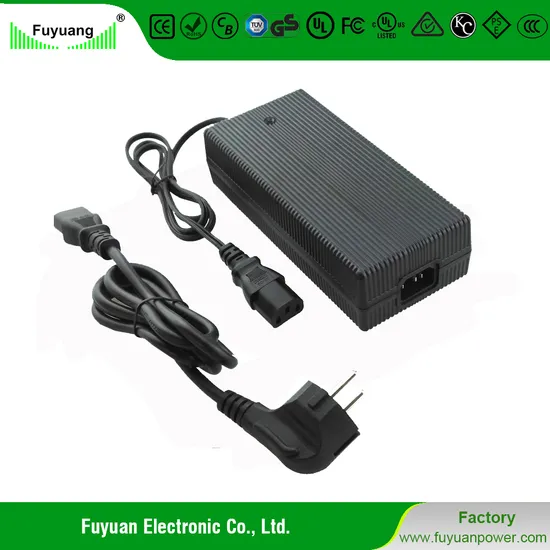

UL Approved Electric Bike Electric Scooter Charger 48V 4A

Product Description

UL approved electric bike electric scooter charger 48v 4a
Advantage: *Global certificates: CE,GS,CB,UL,CUL,FCC,PSE,SAA,C-TICK,RCM,KC,CCC,ROSH,REACH,ERP,MEPS,NRcan.
*All power supply,battery chargers and power adapters are 100% burn-in tested and inspected with automatic test equipmrnt(ATE).
*100% inspection: no load voltage, load voltage,short circuit, OCP,OVP, Ripple Voltage, Primary, HIPOT test and general appearance.
*Safety standard: UL60950,EN55022,EN55015,EN61547,EN61000,EN60335,EN61558,EN61347-1,EN61347-2 -13,EN62233,EN60529,GB4943.1,GB9254,GB17625,J60950,J55022,J3000,J61347-1,J61347-2-13,J55015,J55014,J61558,K00022,K00024.
*We back our items with three-year guarantees.
*Key components made by ourselves, such as Transformer, case, and DC cord.
*Lead by general engineer of 25 years experience.
*Both OEM and ODM are vailable
Specification :

Item	Parameter
Part name:	UL approved electric bike electric scooter charger 48v 4a
Model No.	FY4804000
AC Input:	100-240V,50/60HZ
Max charging voltage:	48V
Max charging current:	4A
Inrush current:	Limited 15A when cold starting
Protection:	short circuit, over current and over voltage protection.
Efficiency:	88%
Power factor:	0.89
HIPOT testing:	3000-3700V
Drop testing:	meet UL standard.
Temperature:	Case 65 ºC Max.
Operating temperature	-29ºC~ +45.5ºC
Storage temperature:	-40ºC~ +75ºC
MTBF:	30000 hours full rated load at 25ºC
Energy Efficiency:	Level VI( DOE or COC)
AQL:	MIL-STD-105E II CRI 0; MAJ 0.25; NIN 1.0

More Pictures:
Battery Charger Connectors:
Port and Pin Numbers: The port and pin numbers are usually embossed or imprinted on the plug-in end of the battery charger connector.
2-Port Inline - 2-port inline connectors are used on some versions of Rad-2-Go and Zappy scooters plus a handful of other Chinese-made electric scooter brands.
3-Port Inline - 3-port inline connectors are by far the most common type of battery charger connectors used on electric scooters. They are used on most Chinese-made electric scooters and bikes including the following brands: Razor, Rad-2-Go, Boreem, E-Scooter, Scoot-N-Go, Sunl, Terminator, X-Treme, plus many others.
3-Pin XLR - 3-pin XLR connectors are commonly used on 12 Volt, 24 Volt, and 36 Volt electric scooters. They are used on the following scooter brands: eZip, IZIP, Currie, Schwinn, GT, Mongoose, Lashout, Xcaliber, Bladez, E-Boarder, Tomb Raider plus many others.
4-Pin XLR - 4-pin XLR connectors are used on newer models of eZip and IZIP 24 Volt and 36 Volt electric scooters and bicycles.
3-Port House - 3-port house connectors are used on a large number of 36 Volt, 48 Volt, and 60 Volts electric scooters including Electra® Voy, Tao Tao, Baja, X-Treme, Rad-2-Go, EVT, and E-Road plus many other brands.
3-Port House for Panterra and Gio - 3-port house connectors for Panterra and Gio electric scooters have reverse polarity from standard electric scooters.
3-Pin House - 3-pin house connectors are used on HCF Cute 002, Cute 301, and Cute 302 and electric scooters.
Polarized C7 - Polarized C7 connectors are used on the City Bug E2 and Razor 132E electric scooters.
Coaxial - Coaxial connectors are most commonly used on smaller child-sized 12 Volt and 24 Volt scooters including Pulse, Razor, E-Scooter plus many others.
RCA - RCA connectors are commonly used on 24 Volt, 36 Volt, and 48 Volt electric scooters and bicycles. They are used on both lead acid battery and lithium battery chargers however the trend is for them to be used primarily on lithium battery
Company Introduction:
Fuyuang is the Chinese famous switching power supply brand, product line include Battery Charger, Power Adapter and LED Driver. Located in Dongguan of China, the company is integrated with product design, R&D and production as a whole. Established in 2005, Fuyuang has 8,000 sq.m. self-built garden-like factory buildings and 200 staff members. With 26-year senior engineer team personally led by the founder Mr. Huang Shaocheng, the company has mastered core technologies, adhered to the enterprise's concept of "seeking greater perfection and giving top priority to quality", upheld the pioneering and progressive spirits that "we have what others don't have and ours are better than others", built the leading brand in the battery charger and adapter manufacture industry, and enjoyed good reputation at home and abroad.
Fuyuang products range 0.9W~500W and cover over 1,000 models, all products have passed quality certification UL,FCC,cUL,CE,RoHs,CB,TUV/GS,SAA,RCM,PSE,KC,CCC ,currently, its 60W~400W large-capacity products take the leading position in the power supply industry. Fuyuang is the preferred supplier for such industries as electric motor car, battery, electric tool, LED lamp, security, acoustic equipment, massaging machine, beauty apparatus and robot.
Producttion dept consist of coiling team, DIP team, injection, rework, assembling, packing, wire processing etc.
Certifications File No: UL file No.:Power Supply: E304160 ; Waterproof LED driver -E343215 Check here:fuyuang.en.made-in-china.com TUV/GS file No.:S1 50224721& S150205925 & S150203696 & S1 50272098& S1 50278124& S1 50270517 Check here:fuyuang.en.made-in-china.com SAA file No.:ESO110651(replace of Q061232)& SAA131909EA & SAA130561 & EAE1308371 Check here https://equipment.erac.gov.au/Public/ C-tick file No.:N17653 & N136, Check here: http://www.cotek.sg/approval.html PSE file No.:JD50195547 & JD50248227 & JD 50287481 Check here: http://fuyuang.en.made-in-china.com EK file No.:HU10419-7001A Check here: www.ktc.re.kr, KC file No.:HU10419-9002A Check here: www.ktc.re.kr CE file No.:E0604412-01&S1403017 Check here:fuyuang.en.made-in-china.com RoHS file No.:CANEC1313005401 Check here: http://fuyuang.en.made-in-china.com CCC file No.:2014010907681379 Check here: http://fuyuang.en.made-in-china.com CB Certification No.:JPTUV-042130&JPTUV-037849&DE 2-014922&DE 2-017489 Check here:fuyuang.en.made-in-china.com Recommended Charging Rates for Electric Scooter Battery Pack:

12 Volt 5-8 Ah Pack	12 Volt 9-12 Ah Pack	12 Volt 17-20 AhPack	24 Volt 5-8 AhPack	24 Volt 9-12 AhPack	24 Volt 17-20 AhPack
slow rate: 12V 1A quick rate: 12V 2A	slow rate: 12V 1.5A quick rate: 12V 3A	slow rate: 12V 3A quick rate: 12V 6A	slow rate: 24V 1A quick rate: 24V 2A	slow rate: 24V 1.5A quick rate: 24V 3A	slow rate: 24V 3A quick rate: 24V 6A

36 Volt 5-8 Ah Pack	36 Volt 9-12 AhPack	36 Volt 17-20 AhPack	48 Volt 5-8 AhPack	48 Volt 9-12 AhPack	48 Volt 17-20 AhPack
slow rate: 36V 1A quick rate: 36V 2A	slow rate: 36V 1.5A quick rate: 36V 3A	slow rate: 36V 3A quick rate: 36V 6A	slow rate: 48V 1A quick rate: 48V 2A	slow rate: 48V 1.5A quick rate: 48V 3A	slow rate: 48V 3A quick rate: 48V 6A
