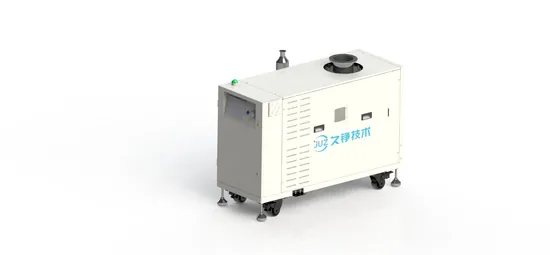

Dry Screw Vacuum Pump Vacuum Unit Equipment

Product Description

Company Profile HangZhou Jiuzheng Technology Co., LTD(refered to as "yuztech"" was established in 2018, located in the beautiful "Paradise onEarth" - Hangzhou. Juztech is a high-tech enterprise that integrates R&D, intelligent manufacturing, sales services, and applicatiorcustomization of vacuum equipment. Adhering to the product and service philosophy of "Energy Saving & Environmental, Efficientand Stable", Juztech is committed to becoming the world's leading vacuum solution provider.
Juztech products focus on dry oil-free vacuum equipment and are widely applied in industries such as semiconductors, photovoltaic solar energy,lithium new energy, chemicals, bio-pharmaceuticals, experimental research, etc. We have a production base oover 30,000 square meters, and have also introduced advanced processing equipment such as the world's leading Austrian Wflmachining center and German KAPp CNC lathe."Precision Design, Advanced Customization" is our R&D philosophy, and we gathevarious professionaltalents from international platforms, forming an efficient R&D, sales and management team, Currently, we ownover 50 invention and design patents
Juztech always adheres to the corporate spirit of "Strict, Eficient, Co-creative, Sharing", with the development goal of "Createextraordinary value for customers by artwork in the fluid industry". We wilalways use technology to assist industry progress, andprovide high-quality products and first-class services to our customers. Let's set sail, and open up an infinite future!
Product Description Jiuzheng Company focuses on the research and production of dry oil-free vacuum equipment products and systems. The products are widely used in industries such as photovoltaic solar energy, lithium-ion new energy, chemical, biopharmaceutical, and experimental research, providing a stable vacuum environment guarantee for strict process requirements. SV series: mainly suitable for industries such as semiconductors, photovoltaic solar energy, lithium new energy, etc. Its characteristics include fast pumping speed at the high-voltage end and low operating power during operation.
Product Parameters

SDR/SVR/SVH series vacuum unit equipment quotation

Applicable industry scenarios

Mode

Unit

982

1382

1682

2202

4202

4952

6002

6302

7202

Semiconductor Photovoltaic Solar Lithium New Energy

Pumping Speed

m'/h

860

1200

1500

2100

4200

4500

5400

6300

7200

Adopting a three-level evacuation system design, the maximum pumping speed of the pump body is higher, and the flow rate changes are more stable and controllable

Uitimate Pressure

Torr

≤7.5×10-4

mbar

≤1×10-³

Pa

≤0.1

Water Codling Motar

Frequency

Hz

50/60

Independently developed three-level frequency conversion linkage and adaptive control program for working conditions to meet different pumping speed requirements

Voltag

V

220~380

Rated Power

kW

4.5+4.5

4.5+4.5

4.5+4.5

6+4.5

6+6

15+7.5

22+15

22+15

22+15

Connection

Inlet

ISO160

ISO200

ISO250

The lower pump adopts an integrated structural design, which is compact in structure and has better adaptability to installation space

Exhaust port

KF40

ISO63

ISO80

Coollng Water

Pressure

bar

2~4

How

L/min

3~8

6~10

10~15

Temperature

ºC

18~30

Connection

RC 1/2"

NZ

Pressure

bar

1.5-2.0

Gas town flow rate

L/min

0~60

Sealing Flow

L/min

0~20

Connection

Swagelok 1/4"

Dimension(L*w*H)

mm

1100*420*996

1280*720*1105

1370*600*1100

1360*720*1100

1360*750*1020

1560*1420*789

1560*1420*789

1560*1420*789

1560*1420*789

Weigh

kg

600

660

685

720

830

1100

1200

1300

1300

Noig

dB(A)

<70

<72

<75

<80

<80

<80

MLP

Pa.m³/s

1×10-5

Operating Temperature

ºC

5~40

Price Note: 1.The quotation is based on EXW 2. The configuration can be customized according to the requirement, the price can update based on the requirement
