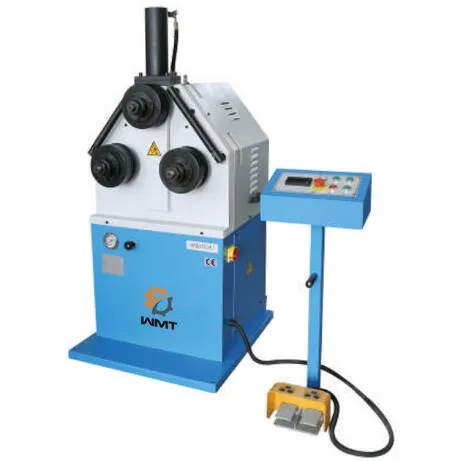

Hydraulic Round Bending Machine (Round Bender HRBM50HV)
| US$3,500.00-3,650.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
HRBM50HV
Condition
New
Certification
RoHS, ISO 9001:2008, CE, CS
Automation
Semi-Automatic
Suitable for
Copper, Aluminum, Alloy, Carbon Steel, Stainless Steel
Type
Roller-Bending Machine
Dia. of Roller
50mm
Power
Electrical
Machine
Metal Sheet Forming
Application
Machinery & Hardware
Type for Pipe and Tube Bending Machine
Multifunction Rolling Pipe Bender
Type for Fold-Bending Machine
Electrical Bending Machine
Transport Package
Fumigated Exporting Standard Wooden Case
Specification
CE, SGS, ISO9001: 2000
Trademark
WMT or customized logo
Origin
Chizhou, Anhui, China
HS Code
84622990
Production Capacity
100 Sets Monthly
Product Description
Features:1.The Round bending machine features an electric three-roller-wheel structure.
2.It has the advantage of a two-axis drive. The upper axis can be moved up and down to adjust the diameter of the processed work piece.
3. It can conduct round bending processing for plates, T-shaped materials and so on.
4. Round bending machine has a standard roller wheel, of which the front two types of roller wheel can be used both vertically and horizontally.
5.The reversible pedal switch facilitates the operation.
| Model | HRBM50HV | HRBM65HV |
| Dia .Of roller(mm) | 50 | 65 |
| Power | 2.2kw/3HP | 2.25kw |
| Spindle speed | 13r/min | 9.3r/min |
| Packing Size | 150x95x134cm | 125x115x180cm |
| N.W./G.W. | 515/647KGS | 720/920KGS |
| Capacity | Size | Min Dia.(mm) | Size(mm) | Min Dia.(mm) |
| 60x10 40x10 | 500 650 | 80x25 40x10 | 600 500 | |
| 100x15 60x10 | 920 1150 | 120x25 50x10 | 600 400 | |
| 35x35 20x20 | 600 780 | 50 20 | 600 400 | |
| 60x7 50x5 | 750 700 | 80x40x7 40x40x5 | 500 400 | |
| 60x7 50x5 | 750 700 | 80x40x7 40x40x5 | 400 360 | |
| 80x45x6 65x40x5 | 600 550 | 100x50x6 50x40x5 | 600 500 | |
| 80x45x6 65x40x5 | 650 550 | 100x50x6 50x40x5 | 600 500 | |
| 60x5 50x5 | 500 500 | 70x6 40x5 | 500 400 | |
| 60x5 50x5 | 700 700 | 70x6 40x5 | 600 500 | |
| 35 30 | 600 650 | 50 20 | 600 400 | |
| 60x60x3 40x40x3 | 600 500 | 70x70x3 30x30x3 | 900 500 | |
| 70x50x3 50x40x3 | 1200 800 | 80x40x3 50x30x2 | 800 500 |
