Precision CNC Thread Grinder for High-Quality Screw Manufacturing

Product Description

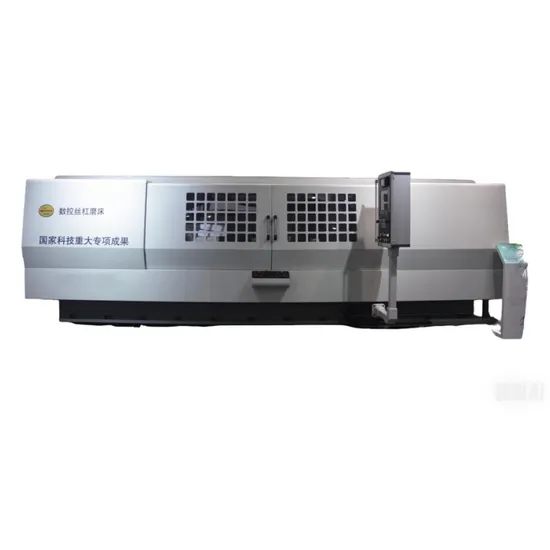

Machine Picture
Machine Introduction
The machine tool adopts a horizontal layout and an integrated bed. The configured CNC system can control six axes and three linkage to achieve the machining motion of the machine tool: the C-axis (head frame spindle rotation motion) is equipped with an internal torque motor combined with a high-precision angle encoder to achieve full closed-loop control, the Z-axis (worktable axial movement), the C-axis rotation and Z-axis movement, and the two-axis linkage to achieve the machining motion of threads. The radial (X-axis) cutting depth feed of the workpiece (when grinding tapered and other shaped threads, the X-axis, Z-axis, and C-axis three-axis linkage), the grinding wheel frame rotation (A-axis), and the grinding wheel shaping axis U and W-axis feed motion.
Machine Applications
This machine tool is controlled by CNC and is mainly used for grinding external threads of arc ball spindles and other thread tooth shapes, which can achieve high-precision ball spindle grinding.
Machine Features
Bed
The bed body is cast as a whole, with front and back layout, and the bed body is arranged with flushing pipelines. The oil return layout is reasonable, and it has good vibration resistance and thermal stability.
Using low stress, high strength cast iron, with high overall stiffness and surface wear resistance and seismic capacity, and after reasonable aging treatment, the contact surface of the guide rail adopts manual scraping process.
Meet the requirements of efficient and high-precision equipment basic components.
Optional artificial marble integrated bed.
Workbench
The longitudinal movement of the workbench is directly driven by an AC servo motor through a pre-loaded high-precision imported ball spindle. The motion guide rail is a flat and V guide rail with a roller frame for movement. Both ends are equipped with organ protective covers.
Headstock
The head frame is directly driven by an internal torque motor to achieve stepless speed change for workpiece grinding and ensure constant torque output within the speed range. The support of the spindle system adopts the form of front and rear rolling bearings.
The head frame is equipped with a high-precision angle encoder to achieve full closed-loop control.
Adopt Mohs #5 top-notch.
Optional self-centering chuck for automatic clamping.
Tailstock
The shell is divided into two layers for micro-adjustment of the center connection between the head and tail frames.
The top sleeve of the tailstock is an equilateral Mitsubishi column with a special-shaped surface, which is installed in the tailstock shell. The sleeve is stretched and contracted by spring preloading and rotating the handle, and moves with a fixed top.
The tailstock is equipped with a high-precision length gauge to monitor the thermal elongation of the workpiece in real time; equipped with an air flotation device to facilitate the movement of the tailstock.
Adopt Mohs #5 top-notch.
Machine Specifications
Maximum rotation diameter 480mm
Maximum grinding diameter 200mm
Minimum grinding diameter 16mm
Maximum grinding thread length 2000mm
Maximum workpiece weight 150kg
Grinding wheel specification Phi 500 × 10, 15, 24 × Phi 305mm
Workpiece speed (stepless) 0.5~ 75rpm
Grinding maximum helix angle ± 30 °
Grinding thread head number 1-99
Maximum lead of grindable thread 300mm
Correction range of double arc grinding wheel R1.7~ 13mm
Workbench longitudinal movement speed 0.1~ 4000mm/min
Grinding wheel frame lateral movement speed 0.1~ 4000mm/min
Lateral movement of grinding wheel frame ≥ 195mm
Grinding wheel spindle speed 1720~ 2150r/min
Maximum grinding wheel line speed 45m/s
Machine Configuration
Machine tool linear and rotary numerical control accuracy:
X-axis positioning accuracy 0.004mm
X-axis repeat positioning accuracy 0.002mm
Z-axis positioning accuracy 0.004mm
Z-axis repeat positioning accuracy 0.002mm
C-axis positioning accuracy 3 "
C-axis repeat positioning accuracy 2 "
A-axis repeat positioning accuracy ≤ 0.005 °
