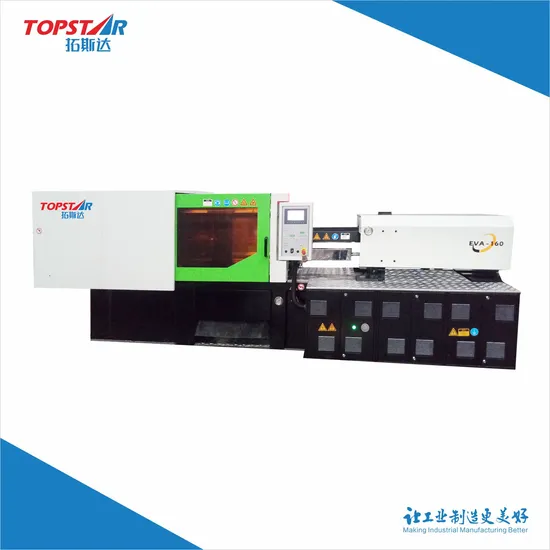

210 Ton Topstar Plastic Servo Motor Injection Molding Machine for Plastic ABS

210 Ton Topstar Plastic Servo Motor Injection Molding Machine for Plastic ABS

US$50,200.00-90,800.00 1 Piece (MOQ)

Basic Info.

Model NO.
EVA210
Type
Preform Injection
Structure
Horizontal
Plastic Type
Thermoplastic
Plasticizing Way
Screw Type
Clamping Way
Hydraulic & Mechanical
Automation
Automatic
Computerized
Computerized
Certification
CE, ISO9001:2008, GMP, QS
Clamping Force
80~600 Ton
Clamping Stroke
300~900mm
Max Platen Distance
660~1820mm
Transport Package
Wooden Box or Customized
Specification
5.8*1.4*1.85m
Trademark
Elite/customized
Origin
Mainland China
HS Code
8477101090
Production Capacity
3000 Units Per Year

Product Description

80~600ton Topstar EVA Series Toggle Clamping Injection Molding Machine
Accessory Introduction
1. European KEBA brand controller, high speed response, precision control.
2. Rexroth or Yuken solenoid directional valve for precise metering.
3. Phase, Inovance, Modrol servo motor, energy saving more than 50%.
4. Inovance, Modrol, Techmation servo motor driver, to achieve accurate control.
5. INTERMOT, STAFFA brand melt motor, torque, overload capacity, long life.
6. Sealtech, NOK brand oil seal, durable, sealed well.
7. Germany imports Eckerle gear pump.
Injection Unit
International Designation UNIT EVA210
Screw Code -- A B C
Screw Diameter mm 50 55 60
Injection Pressure kg/cm*2 1750 1446 1215
Shot Weight(PS) g 429 519 617
oz 15.1 18.3 21.8
Screw L:D -- 20 20 18.3
Screw Stroke mm 240
Theoretical Injection Speed mm/s 96
Screw Speed r.p.m 159
Nozzie Contact Force ton 5.1
Theoretical Injection Rate cc/sec 188 228 272
Plasticizing Capacity g/sec 19.8 26 31.5

Clamping Unit
Type of Clamping Unit Toggle Clamping
Clamping Force ton 210
Clamping Stroke mm 460
Max Daylight Opening mm 1000
Mould Thickness mm 230-540
Space Between Tie Bars mm 520*450
Platen Dimensions mm 770*700
Hydraulic Ejection Force ton 4.4
Hyfraulic Ejcetion Stoke mm 130
No.of Ejector Pins unit 9

General
System Pressure kg/cm*2 140
Pump Driving Motor kw 29
Heater Capacity kw 18
Power Requirement A 75
Temperature Control Zones -- 5
Tank Capacity L 450
Machine Weight ton 6.2
Machine Dimensions m*m*m 5.8*1.4*1.85
