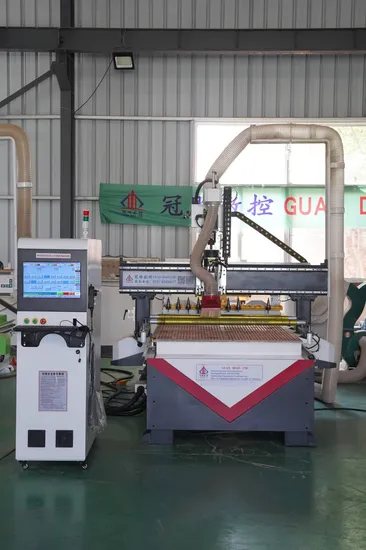

Atc CNC Router with Drilling Box and Auto Tool Disc 12/16/24 Tools

Product Description

Product Parameters

Model	GD-1325A/GD-1325B
Working area	1300*2500mm
Table size	1740*3100mm
Z-axis working area	200-300mm(optional)
Resolution	+/- 0.01mm
Max Cutting Speed	70m/min
X and Y axis transmission	Germany Herion 1.5MRack and Pinion
Z-axis transmission	Germany TBI Ball Screw
Guide rail	Taiwan Hiwin 25mm Linear rail
Spindle	9.0KW, air-cooling ATC SPINDLE
Working Mode	1.5KW Servo motor
XY Transmission	Imported Rack
Z transmission	Taiwan TBI Ball screw
Reudcer	Japan Shimpo
Auto Tool Change	Yes, Linear type
Dust-collection function	Yes
Working table	T slot Vacuum table 6 And T clamp combination
Air pump	7.5KW
Dust collector	4KW,double bags
Inverter	HPMANT 11KW
Software	Artcam
Command	G code, HPGL,U00, mmg, plt
Lathe Structure	Seamless welded steel, trapezoidal stable and strong lathe bed
Auto Lubrication	Yes
Operating System	Taiwan JINKE Control System(Support multilingual)
Standard power	3P 380V,50Hz
Package	Plywood case
Warranty for the spindle	Half a year
Warranty for the machine	One year
Delivery time	10 working days
Packing size	4.6*2*2.21m

Detailed Photos
WORKING TABLE CONTROL VALVE Vacuum+T-slot table 6 valves repectively control 6 zones of the vacuum table
work table is divided into 6 partitions,are controlled separately Pressure can be adjusted separately.
SERVO MOTOR 9KW ATC SPINDLE 1.5KW LEADSHIN Servo motor 9KW ATC Air Cooling Spindle
Can bereplaced with Japanese Yasukawa Servo motor Can bereplaced with HSD ,Fast Speed and High efficiency
FREQUENCY CONVERTER CONTROL SYSTEM
HPMOT 11KW Frequency Converter TAIWAN JINKE Large Screen Operating System
Stable and efficient work Support English, Spanish, Japanese, Vietnamese
Multifunctional Pressure Roller Tools Magazine Knife Holder Auxiliary fixing materials 8/10/12/16 Linear toolsmagazine can choose Humanized design,Easy to change tools
TOOLS SETTERS AUTOMATIC OILING AUXILIARY PUTTER
Application
* Furniture: wooden doors, cabinets, plate, office and wood furniture, tables, chair, doors and windows.
* The wood products: voice box, game cabinets, computer tables, sewing machines table, instruments.
* Plate processing: insulation part, plastic chemical components, PCB, inner body of car, bowling tracks, stairs, anti-Bate board, epoxy resin, ABS, PP, PE, PEHD and other carbon mixed compounds.
* Decorate industry: Acrylic, PVC,MDF, artificial stone, organic glass, plastic and soft metals such as copper, aluminum plate engraving and milling process.
