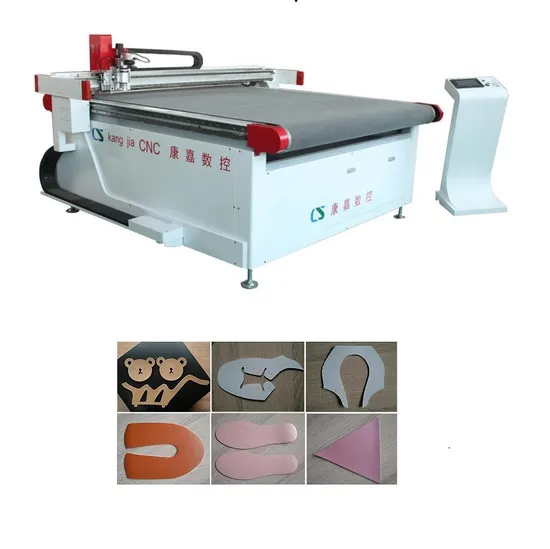

Footwear Shoe Cutting Knife CNC Shoe Leather Cutting Machine Price

Product Description

Footwear Shoe Cutting Knife CNC Shoe Leather Cutting Machine Price
Characteristics:
1. Oscillating knife cutting. It cuts with knife, so there is no burning or smell. Instead, the sample edge is smooth and the speed is fast.
2. Recognizing system. With a camera and projector the system can recognize the outline of each different leather, and it can also recognizing the flaws and dirty parts on the leather.
3. Auto nesting(Optional). Computer counts the best nesting, layout of each piece of pattern on the leather for cutting. Therefore, the material utilization will be improved to the maxmum. Saving material by 3%-8%.
4. Conveyor table(Optional). Both conveyor table, and static table are optional. With a conveyor table, material feeding, cutting, nesting and patterns picking can be finished continuously without stopping. Therefore. The effiency improves.
5. User friendly. This cutting machine was designed easy to install, set-up and operate. Within a 3-day training, a new operator can master the machine quite well.
6. Compatible. The plotter supports any design software which can output files in DXF or PLT formats (Such as AutoCAD, AI, CorelDraw)
7. Safety. Special safety sensory device meets the European standard.
Product Details:
Technical Data:

Model	1625/1630/1830/2030 optional
Working area	1600*2500mm /1600*3000mm/1800*3000mm/2000*3000mm
Rated power	7-11KW
Fixed mode	Flat table /auto feeding table optional , table structure: whole welding process
Multifunctional heads optonal	Vibration knife (oscillatory knife)
	Circular knife (round knife / rotary knife)
	Oblique knife (V-cut)
	Marking pen
	Punching roller (round punching/v-punching/optional)
	Milling knife
	Drag knife
	Pneumatic knife
	Projector and camera optional
Safety device	Using infrared sensors, mechanical safty device, Intelligent anti-collision device responsive, safe and reliable.
Material feeding type	Auto feeding or manual feeding
Material fixed type	Vac-sorb (vacuum absorption), suction fan power: 2.2kw / 7.5kw / 9kw
Translational velocity	800-1500mm/s
Cutting speed	Max. 1500mm/s (according to different cutting materials)
Cutting thickess	≤60mm (according to different cutting materials)
Cutting material	Fabric, all kinds of clothing flexible material, Sponge leather, PVC, soft glass, Silicon, rubber, cardboard etc.
Repated accuracy	≤0.1mm
Cutting type	Mechanical vibration physical cutting
Transmission / driving system	Motor brand Panasonic, YASKAWA, Fuji, Delta
Transmission type / Guide rail	Digital servo motor, linear guide, synchronous belt, rack/spline, ball screw
Instruction system	HP-GL compatible format
Control system	LCD touch screem ( custom made)
Voltage	220V / 380V±10%; 50HZ, 60HZ
Other configuration	Germany imported conveyor belt, vacuum table, Taiwan Hiwin rail, vacuum pump

Packaging Information:
1. Machine packed with film;
2. Fixed machine in the wooden box.
3. Wooden box size: 3.52m *2.25m * 1.57m
Cutting material display:
Company information:
Jinan Kangjia CNC Equipment Co., Ltd is located in Jinan city of China and built in year 2016. It is a comprehensive service company specializing in the production, sales and technical service of knife cutting machine and laser cutting machine. It covers multiple fields and industries, such as automotive decoration, toys, garment, leather product, furniture etc. Its R&D level and production capacity has always been in the leading position in the same industry.
The factory covers 10000 square meters, with 150 staffs in total. The production capacity is about 100 unit / month.
Kangjia main products are oscillating knife cutting machine, laser cutting machine, CNC router and metal cutting machine. With the development of these years, we have built a complete sales and after-sales market service system in China. And our equipment have been exported to many countries of the world. The east Asia, south east Asia, Middle east, USA and Europe.
Our company takes "professional, honest, efficient, meticulous, thoughtful and conscientious" as the company's philosophy and the principle of "quality first, customer first". Strict quality control, continuous innovation, and provide Chinese and foreign customers with high-quality products and meticulous services.
Exhibition:
FAQ:
Q: 1. How can I choose a suitable Knife cutting machine?
A: Please provide us some info, then we can recommend you the suitable machine:
1)What materials are going to cut? Are they rolled or not? Breathable or not?
2)What's the largest size of original materials?
3)What's the thickness of materials?
4)Excepting for cutting, do you need more functions, like drawing, punching holes, scanning, feeding, CCD camera, etc.?
Q: 2. Can you design a machine for me depending on my requirements?
A: Of course, we will give our professional suggest and discuss details with you for the machine which matches all the requests with best cost performance.
Q: 3. What should I do if the machine has any problem in future?
A: We supply online/phone technical support and door to door service. Anything confuse or not goes well, pls contact us in the first time.
Q: 4. What's the warranty policy?
A:Standard warranty is 12 months upon delivery.
Main parts are free of charge(except consumable parts) when problems happened because of quality problem during this period.
Problems caused by wrong operate will also well-solved, but not for free.
We also supply life long after-sales service. No matter when, you can count on our best service for your machine.
Q: 5. If I don't know this machine before, how can I operate it?
A: We supply face to face training and provide operating video, user manual, and telephone calls to help.
It's easy to learn, one inexperience people can learn it within one day.
