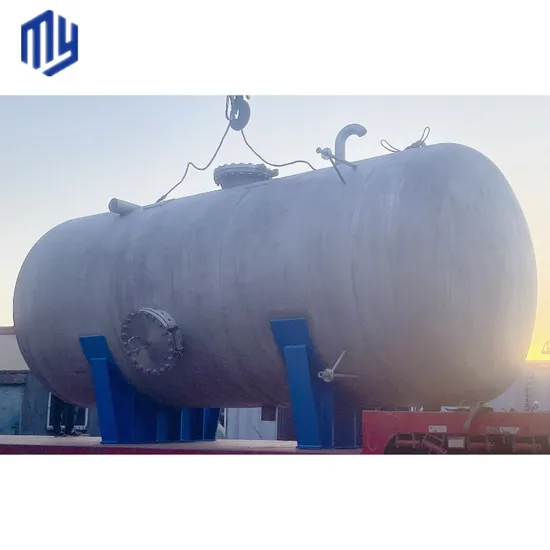

Customized ASME Pressure Vessel Underground Fuel Storage Tank for Gas Station

Product Description

Stainless Steel Chemical Water Storage Tank for Liquids/Gas/Mixing Tank Water Separation Pressure Vessel
Mingyi can produce various of gelatin equipment and aerogel equipment and other customized industrial product, including gas liquid separator, refiner, gelatin votator, band dryer, multi-effect evaporator, storage tank, pressure vessel, etc Product Description
Steel storage tank projects are used in petroleum, chemical, grain and oil, food, fire protection, transportation, metallurgy, national defense and other industries. With the continuous development of the storage tank industry, more and more industries and enterprises have used storage tanks, and more and more enterprises have entered the storage tank industry. Steel storage tanks are used to store various liquid (or gas) raw materials and Special equipment for finished products cannot be produced normally without storage tanks for many enterprises, especially the national strategic material reserves are inseparable from storage tanks of various capacities and types. my country's oil storage facilities are mostly above ground storage tanks, and most of them are metal structures.
Gas Storage Tank.Cryogenic vacuum storage tank for double cylinder structure, inner tube and pipe made of stainless steel S30408 shell made ofalloy steel Q245R (carbon dioxide for 16 MNDR inner pressure vessel materials manufacturing, shell made of alloy steel Q345R).Cryogenic tanks commonly used structure: vertical tanks, horizontal tanks.Adiabatic method: powder adiabaticWorking pressure: 0.2-3.0mpaEffective volume: 5m3-200m3The design temperature: - 196 ° C - 50 ° CFilling rate: 95%
We offer a range of tank sizes from 5000 liters to 200,000 liters and in both horizontal and vertical vessels.

Colour	White
Size	Customized
Texture	Inner SS304 Outer Q245R
Logo	Accept Customized Logo
Standard	GB150/ASME
Design Pressure(MPa):	0.8/1.6
Condition	New
Brand name	SHD
Service life	20years
Place of Origin	China
Application	Food freezing/fish pond/metal/gas cylinder filling

Specifications

The effective volume (m3)	Maximum working pressure (MPa)	Empty container (kg)	Outline dimension (Diameter * height)
5	0.2	3623	1916x5260
	0.8	3825
	1.6	5118
10	0.2	5790	2316x5970
	0.8	6235
	1.6	10710
	2.0	13200
30	0.2	13527	2720x10230
	0.8	15100
	1.6	18110
50	0.2	18650	3020x12670
	0.8	21565
	1.6	26740
100	0.2	36570	3524x17040
	0.8	44595
	1.6	53550
200	0.2	76838	4724x19192
	0.8	92143
	1.6	108440
Remarks:1 materials used: Q345R/304 stainless steel 2 use: industrial, medical, civil natural gas, oxygen, argon, carbon dioxide, nitrogen gas units centralized gas supply

Multi Function Mixing Tank is suitable for manufacturing various liquid products (such as detergent, shampoo, shower gel etc). It integrates mixing, homogenizing, heating, cooling, pump discharge finished products and defoaming (optional) functions. It is the ideal equipment for liquid products in domestic and international factories.
1. It can treatment lots of material . And can heating or cooling the material that inside the tank .
2.The top head or bottom tank can be up and down by cylinder .
3. High corrosion resistance PH:1-13, the material can be stainless steel 304,316L and titanium. And also can be PTFE coating inside

	200L	500L	1000L	2000L	10000L	20000L
Diameter(mm)	500	700	900	1200	1800	2300
Heigh(mm)	2300	2650	2900	3800	5250	6550
Inner pressure(Mpa)	0.2MPA
Layer pressure(Mpa)	0.3MPA
Stirring paddle No.	1-3 pcs
Stirring speed(r/min)	40-2990rpm
Motor power(kw)	0.75	1.1	1.5	3	7.5	12

Detailed Photos
Our Services
1.Pre-sales Service
Offering comprehensive technical and business consultation services; Proposing the most suitable scheme and equipment for our clients; Designing and fabricating targeted products according to the special requirements of clients; Training periodically high qualified service technician. 2.After-sales Service
Highly inspecting equipments in every working procedure, quality comes first; Fast & Safe Delivery; Assisting our clients for foundation construction of equipments; Dispatching engineers to install and debug equipments; Training the first-line operators on site; Regularly visit clients to solve production problems; Providing life-long maintenance service; Providing technical exchanging. Company Profile
Mingyi Intelligent Equipment ( Tianjin) Co., Ltd. is a leading producer that integrates the research, design and customized development, production and sales services of tank . We has been manufactured and exported in tank for more than 20 years, various types of products are made in different materials grades like Carbon Steel,Stainless Steel, Duplex, Super Duplex, Aluminum, Nickel and Nickel Alloys, Copper and Copper Alloys, Titanium.Our company is located in Tianjin, we have no limitation in transporting our finished product (even large items) to Tianjin sea port from where we can ship to our customers all over the world. Our team has good knowledge and expertise in forming all type of materials into different shapes, our hard working and flexible craftsmanship is ready non-stop to execute the orders within the shortest possible lead time and to maintain our commitments with our clients. We always provide the most economical and efficient solutions for clients to maintain a sustainable business for the long-term.
Our Advantages
With well-equipped professional engineers and strong technical ability, our company has been in machinery filed more than 20 years.
We cooperate with superior material suppliers to ensure the quality. We do lots of tests on machine to ensure the high quality of the equipment before packing. Engineers are always available to service for machinery commissioning overseas, which is not only after sales service support, but also technology support. " Keep Improving, Pursuing Excellence" is always kept forever. Lots of our products,such as vibrating screen, paper pulper, gas liquid separator and other papermaking machines have obtained patent certificates and they have been sold to Europe, Southeast Asia, Australia , USA, Chile, Russia and other countries.
Our products have good impression on all of customers, it helps client to save lots of manpower, improve efficiency. With good product quality and business reputation, we are deeply supported and loved by customers! Exhibition
Packaging & Shipping
FAQ
1. Is your company a factory or trading company?Mingyi is a highly professional manufacturing entity focusing on fabricating pressure vessel and tanks, integrated bioengineeringfermentation systems, cell culture systems, large infusion systems, fluid handling system, CIP/SIP systems.2. Can you product as specific size?Definitely we can. Our products are customized as per your requirements.3. Can I have samples to test? Yes, we are pleased to supply samples test report issued by renowned authority and ensure quality. Our products are fabricatedstringently in compliant with ISO, ASME BPE, cGMP international codes.4. Do you have any MQQ limitation?Our MQQ is 1 PC to supply new customers.5. How long is the lead time?Normally it takes 5-6 weeks for stainless steel tank, 7-10 weeks for integrate modular systems. 6. Do you provide after-sales service?Yes, we are committed to offering highly professional and real-time after-sales service. We have many professional and dedicatedengineers available ensuring a holistic service to our highly-respected customers.Contact us, let's discuss more!
