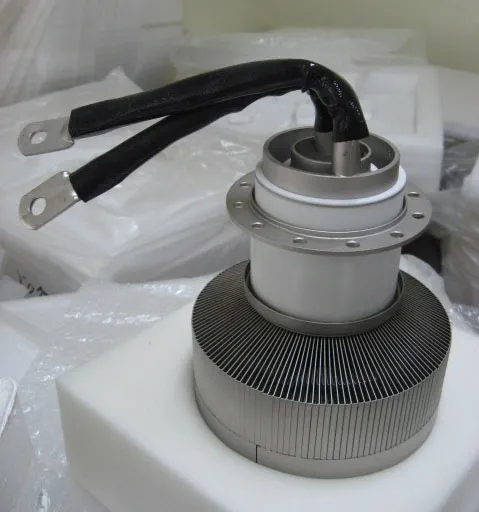

Power Triode 3cx15000h3 as Oscillator

Product Description

The 3CX15000H3 is a metal/ceramic, medium -mu, forced air cooled power triode, intended for use in radio frequency heating as oscillator. Max anode dissipation: 15KW, max frequency: 90MHZ, max grid dissipation: 1KW. Plentiful reserve emission is available from its 1000 watt filament. The grid structure is rated at 500 watts, making this tube an excellent choice for industrial service. The output power could be up to 40KW.
General Characteristic
Electrical

Filament voltage		6.3 V
Filament current		162±10 A
Amplification factor		20
Interelectrode capacitance	Grid - cathode	55 pF
	Anode - cathode	1.4 pF
	Anode - grid	34 pF
Max frequency		90 MHZ
Operating position Vertical		anode up or down
Cooling		Forced air
Max temp. at seal		250 ºC
Height max.		448mm
Diameter max		179mm
Weight		5.9 kg

MAXIMUM RATING ABSOLUTE
Class C RF industrial oscillator

Anode voltage	12000 Vdc
Anode current	6 Adc
Grid voltage	-1000 Vdc
Grid current	1.0 Adc
Anode Input power	60 kW
Anode dissipation power	15 kW
