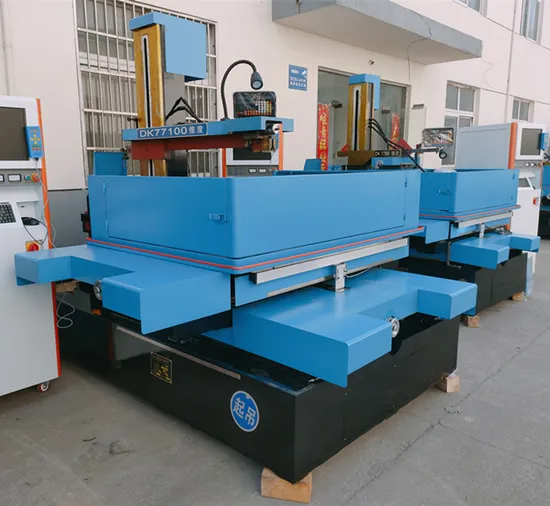

High Speed Wire Cutting EDM CNC Wire Multi Cut Machine Dk77100
Basic Info.
Model NO.
Dk77100
Application
Metal
Process Usage
Metal-Cutting CNC Machine Tools, Metal-Forming CNC Machine Tools
Movement Method
Linear Control
Control Method
Open-Loop Control
Numerical Control
CNC/MNC
Processing Precision
0.09~0.1(mm)
Performance Classification
Economical CNC Machine Tools
Certification
CE, ISO 9001
Condition
New
Transport Package
Wooden Case
Specification
DK77100
Trademark
Talent or OEM
Origin
China
HS Code
8501109101
Production Capacity
1200
Product Description
High Speed Moly Wire Cut EDM CNC Machine Dk77100
The WEDM is composed of main machine, electrical control system, software and cooling filter system. The main machine is mainly composed of fuselage, column, wire frame, workbench, etc. the structure of the machine tool is compact and the design is reasonable. It has five axes of X, y, u, V and Z, among which the four axes of X, y, u and V are linked and driven by step without resistance and constant current. The vertical cabinet dqe-ds-03 (full step type) of the electrical cabinet is made of cold-rolled steel plate, with electrostatic spray molding. The interior is equipped with computer and control software, high-frequency control module, driver, frequency converter, fan, etc. The cooling system includes water tank, cooling pump and filter screen. Long term normal working conditions of the machine:
| Working environment temperature | 5~40ºC |
| relative humidity | ≤85% |
| Working temperature of cooling water | ≤30ºC |
| Power Supply | 220V/380V/415V;50Hz/60Hz;One Phase/Three phase |
2.technical requirement
| S/N | Project | Parameters |
| 1 | Model | Dk77100; fast wire |
| 2 | Electrical cabinet form | Stepping type of vertical cabinet |
| 3 | Guide | V flat guide rail |
| 4 | Lead screw form | Ball screw |
| 5 | XY motion motor form | Stepper motor |
| 6 | Working mode of wire conveying motor | Frequency converter speed regulation 1 ~ 12m / S |
| 7 | Machine tool protection | Environmental protection cover |
| 8 | Resolution of motion axis | 0.001mm |
| 9 | Table size | 1150X1600mm |
| 10 | X. Y axial stroke | 1000X1200mm |
| 11 | U. V-axis stroke | ±35×±35mm |
| 12 | Machining taper / machining thickness | ±6°/80mm |
| 13 | Maximum straight cutting thickness | 1100mm(Z-axis electric lifting) |
| 14 | control mode | 4 axis linkage |
| 15 | Maximum load capacity | 1500kg |
| 16 | Maximum processing current | 5A |
| 17 | Maximum processing efficiency Cr12, H = 60mm | ≥180 mm²/m |
| 18 | Surface roughness (straight cutting, H ≤ 40mm) | Ra≤2.5μm |
| 19 | Cutting accuracy Cr12, H = 40mm | ≤0.015mm |
| 20 | Radial runout of wire storage cylinder | ≤0.02mm |
| 21 | Molybdenum wire diameter range | 0.12~0.22mm |
| 22 | Wire storage capacity of wire storage cylinder | 250m |
| 23 | Molybdenum wire loss Cr12, H = 40mm | ≤0.02mm /300000mm², |
| 24 | Cutting power supply | High frequency power supply system without resistance |
| 25 | operating system | Windows 98/XP(According to the control software) |
| 26 | Control system | StandardAUTOCUT |
| 27 | communication interface | LAN,RS232,USB |
| 28 | Operation function | Drawing or CAD drawing import |
| 29 | Working tank volume | 55L |
| 30 | Working fluid filtration mode | Filter screen filtration |
| 31 | Weight of whole machine | 6000 kg |
| 32 | Overall dimension of main engine | 2500x2300x2500mm |
| 33 | Cabinet size | 730×630×1820mm |
| 34 | Rated power of electric appliance | ≤ 2.7kW |
3.List of attached accessories
| S/N | Product name | Specifications | Free delivery |
| 1 | scissors | 3 | 1 |
2 | Hexagonal wrench | M4-M10(5) | 1 |
| 3 | Stiff hands | 14-17 | 1 |
4 | Wooden screwdriver | One type, cross type | 2 |
| 5 | Oil gun | Metal shell | 1 |
6 | Molybdenum wire calibrator | H80mm | 1 |
| 7 | Top wire wheel | 1 | |
| 8 | Working fluid | Water working fluid, Jiarun jr3a | 1 |
| 9 | Electrode wire | Recommended 0.18mm molybdenum wire | 500m |
| 10 | Guide wheel | Dia.49.5mm | 2 |
| 11 | Bearing | 625ZZ | 8 |
| 12 | Conductive block | 12mm×12mm | 2 |
13 | Reversing switch | NPN LJ186A3-8-Z BX | 2 |
14 | Silk conveyor belt | 110 | 1 |
