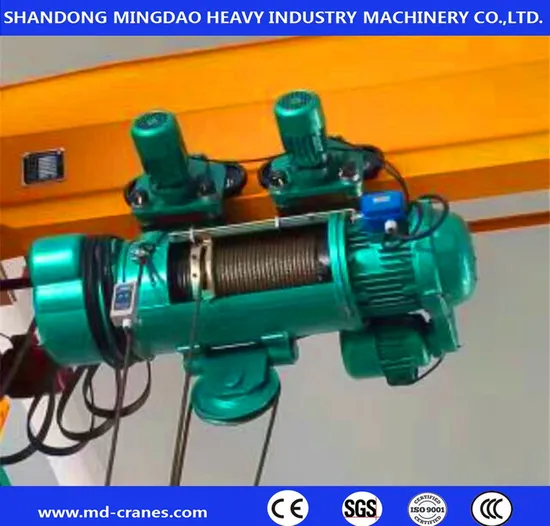

China 5t CD1 MD1 Wireless Remote Control Electric Hoist in High Quality by CE Certificate for Overhead Gantry Crane with Low Price

Product Description

PRODUCT DISPLAY
---------------
Rational Construction 5t Electric Hoist In High Quality

PRODUCT FEATURES
Brief Introduction:
CD or MD model electric hoist can be widely used to hoist heavy objects, or installed on the straight or curve I-section steel beam of single beam cranes. They can also be used together with Electric Hoist Double beam gantry cranes and jib cranes. All the above has made the electric hoists common in industrial and ore enterprises, railway, wharf and warehouses.
CD or MD model monorail wire rope electric hoist is a kind of light-duty lifting equipment with advantages of tight structure, light weight, small volume, wide common use and convenient operation etc.If reducers with hard gear surface are applied, it will have long life and high mechanical efficiency.
CD model electric hoist has one lifting speed. MD model electric hoist has normal lifting speed and slow lifting speed which make it lift steadily and accurately.
Application places:
1.Extensively used in factories, workshops, warehouses and many other occasions to hoist materials directly,
2.Installed on the straight or curve I-steel beam of Single-girder Cranes to lift goods.
3.It can also be used together with Electric Hoist Double-beam, gantry crane and slewing cranes to hoist different items and so on.

High configuration:
Motor: Motors are equipped which has safety limiter in both up and down directions. And the motor is Conic rotor brake motor, in order to adapt to the frequent direct start in the intermittent work.
Reducers: Its reducers with hard gear surface and adopt 3 level helical gears to slow down the speed, so it will have long life and high mechanical efficiency.
Main electric parts: adopts top quality and famous brand: Siemens brand.

Gear Box: Hoist Gear Box has specially treated gears for high wear resistance. Each Geared Shaft assembly is supported on ball or roller bearings, to ensure smooth, low-friction operation.
Rope Guide: Rope Guide is in two halves, ensuring easy accessibility. It encircles the Drum completely so that the rope may not uncoil even when the Hoist is in unloaded condition.

Hook: The hook is closed type with high safety; it wrought with special high quality steel.

Rope drum: It made of cast iron and seamless steel tube, its shell is welded with steel plate. The drum device is the central part of hoist.

Technical Parameters:

Model	0.25TON		0.5TON	1TON	2TON	3TON	5TON	10TON
Lifting capacity(t)	0.25		0.5	1	2	3	5	10
Lifting height(m)	3-9		6-12	6-30	6-30	6-30	6-30	6-30
Lifting speed m/min	8(8/0.8)		8(8/0.8)	8(8/0.8)	8(8/0.8)	8(8/0.8)	8(8/0.8)	7(7/0.7)
Running speed(m/min)	20(30)
Rope size	6×19-3.6	6×37-4.8-180		6×37-7.4-180	6×37-11-155	6×37-13-170	6×37-15-200	6×37-15-200
Rail beam	16-22b	16-28b		16-28b	20a-32c	20a-32c	25a-63c	28a-63c
Min.radius of ring rail (m)	0.8	1.5		1.5-4	2-4	2-4	2.5-5	3.5-9
Voltage (v)	380	380		380	380	380	380	380
Frequency (hz)	50	50		50	50	50	50	50
Phase	3	3		3	3	3	3	3

PRODUCT DETAILS
Advantage details
PRODUCT APPLICATION
-------------
♦ This product is widely used in plants, warehouse,steel plant,steel yard, material stocks etc to lift goods.It is prohibited to use the equipment in the combustible, explosive or corrosive environment(Need explosion proof type for this).

DELIVERY & PACKING

---------------
CUSTOMER FEEDBACK

Shipping way of MD Cranes:
♦ Electric parts are packed by high quality plywood crate, to reduce distortion in conveying.
♦ Main beams, end beams and trolly/winch are packed by plastic woven cloth.It can reduce
Abrasion during the transportation.
♦ If the size are suitable for container ship, usually by container.
♦ Big size, usually by bulk ship or by container after truncation.
♦ Transport ways are based on reducing cost & keep safety.
ABOUT US
-------------
Shandong Mingdao Heavy Industry Machinery Co., Ltd.Is located in Taian City,Shandong Province, China , it is near the China famous Mountain Taish, and also near Kongzi Temple.We are mainly engaged in the design, manufacture,installation and maintenance of single girder cranes(LD Models), Double Girder Cranes (LH,QD etc),gantry cranes(MH,MDG..),Jib cranes(BZ,QZ,MZ etc), variable frequency cranes, Explosion-proof series cranes(LB,QB etc), Cranes with grab bucket,Low headroom monorail Hoist, Electric Winches, scrapers and CD1 MD1 HC Electric Hoist, Hand Chain Hoist etc...
In the past 10 years, we are aiming at China domestic market and become a leading manufacturer in China.Also, with the help of China trading companies we have exported our products to many countries such as Vietnam, Philippines, Sri Lanka, Bangladesh, France, Dubai, Kazakhstan, Russia, Tanzania,Peru , New Zealand ,etc countries .We got 99% good feedback from the overseas customers.Now we are not only aiming at China domestic market growth ,but also to expand the international market with our quality and price advantages.Integrity, quality, customer satisfaction is the pursuit of Mingdao heavy workers!
CUSTOMER USE CASE
--------------
FAQ
------------------
Q1.Can the cranes be customized?
Yes,every customer's working condition is different, all of our products can be customized depend on customers' requirements.Please give us the information as clear as you can, so we can give our best design to suit for your demands.

Q2.How many operation methods for my selections?
We provide pendent controller with push button control type, remote control type or cabin control type.Please tell us what kind of operation way you need.

Q3.I have low headroom in my workshop, is it possible to install a crane in it?
We have special products for low headroom workshop, our engineer can give the best design according to your dimensions.

Q4.Do you supply lift tools?
Yes, we can provide any kind of lifting tools such as hook, electromagnetic, grab bucket etc...

Q5:In order to offer the most suitable design solution for you, it will be great helpful if you can offer us the following information to us:
1.Lifting capacity.
2.Span length.(rail center to rail center)
3.Lifting height.(hook center to ground)
4.Have you installed the rails?Do you need us to supply the rails?How long is it?5.Power supply:Voltage.
5.Working condition:What kind of material to lift?Temperature?
6.It would be much better if it is possible for you to offer the drawing photo of your workshop.
