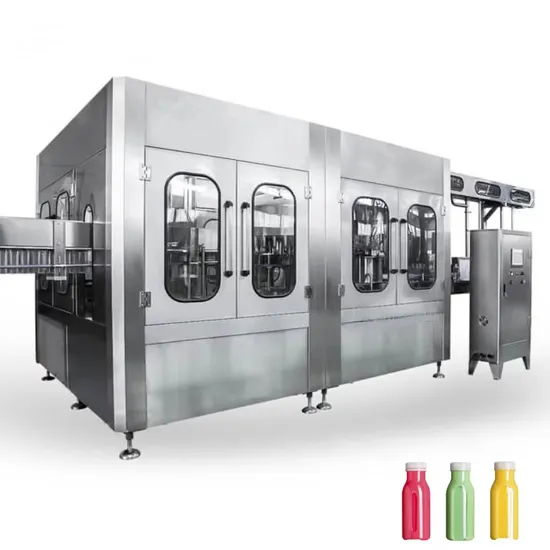

2500bph Automatic Juice Aluminum Can Mineral Drinking Pure Water Perfume Olive Oil Bottling Liquid Plant Production Line Filling Capping Packing Machine

Product Description

Product Description
Automatic juice filling line machine, beverage filling machine, bottled juice filling line 1. Model RCGF8-8-4
2.Capacity : 2500BPH (500ml)
3. Suitable : Plastic bottle 250ml-2000ml
4.Machine electric brand : SIEMENS , MITSUBISHI
5.Machine power : 5KW
6. Machine include function : Filling,Sealing.
7. Application: Beverage, water , juice , oil.

Model	RCGF 8-8-4	RCGF14-12-5	RCGF 18-18-6	RCGF 24-24-8	RCGF 32-32-10
Capacity	2500-3000BPH	3500~4000BPH	5000-6000BPH	8000-12000BPH	12000-15000BPH
Bottle	φ=50-110 H=170 volume=330-2250ml	φ=50-110 H=170 volume=330-2250ml	φ=50-110 H=170 volume=330-2250ml	φ=50-110 H=170 volume=330-2250ml	φ=50-110 H=170 volume=330-2250ml
Washing pressure	0.2~0.3Mpa	0.2~0.3Mpa	0.2~0.3Mpa	0.2~0.3Mpa	0.2~0.3Mpa
Machine power	1.5KW	1.5KW	2.2KW	3KW	5.5KW
Machine size	2100mm*1560mm*2100mm	2520mm*1800mm*2120mm	2500mm*2000mm*2200mm	2900mm*2250mm*2100mm	2950mm*2880*2100mm

Final Products

Equipment Type	Automatic
Bottle Type	PET Bottle/Glass Bottle φ=50-110mmH=170mm volume=330-2250ml
Output	2000~20000BPH
Your product	Beverage juice / Mineral water/Soda Drinks
Certificates	CE / ISO 9001

Machine DetailsAutomatic bottling filling machine mineral water filling line.Washing Parts-washing bottles- Into bottle way is air conveyor direct connection with bottle dial.
- All 304/316 stainless steel rinse heads, water spray style inject design, more save water consumption and more clean.
- 304/316 Stainless steel Gripper with plastic pad, ensure minimal bottle crash during washing.
- 304/316 stainless steel washing pump make the machine more durable.Automatic bottling filling machine mineral water filling line.Filling Parts-filling water into bottle- 304/316 Stainless steel high precision filling nozzle
- Filling volume adjustable in fine rank, same liquid level after filling
- All 304/316 stainless steel contact parts & liquid tank, fine polish, no death corner, easy to clean
- 304/316 stainless steel filling pump
- Efficient spray nozzle rinse thoroughly and save water for flushingAutomatic bottling filling machine mineral water filling line.Capping Parts-put caps on bottles- Place and capping system, electromagnetic capping heads, with burden discharge function, make sure minimum bottle crash during capping
- All 304/316 stainless steel construction
- No bottle no capping
- Automatic stop when lack of bottle
- Capping effect is stable and reliable, Defective rate ≤0.15%Industry-specific attributes
Machinery Capacity
4000BPH, 8000BPH, Other, 12000BPH, 6000BPH, 400BPH, 20000BPH, 16000BPH, 500BPH, 2000BPH, 1000BPH, 100BPH, 200BPHPackaging MaterialplasticFilling MaterialJuice, beverage, coffee, tea beverageFilling Accuracy99.8%Other attributes
Application
BeveragePackaging TypecaseAutomatic GradeAutomaticDriven TypeElectricWeight2500 KGWarranty1 YearMachinery Test ReportProvidedVideo outgoing-inspectionProvidedCore ComponentsMotor, Pressure vessel, Pump, PLC, Gear, Bearing, Gearbox, EngineVoltage220V/380VBrand NameU1Dimension(L*W*H)2400*1850*2400mmKey Selling PointsEasy to OperateProduct nameAutomatic Water Filling Machine Production LineFunctionBottle Washing Filling CappingProcessing TypeslinerUsageWater Filling MachineMaterialSUS304/316Filling materialFlowing LiquidPackaging and delivery
Packaging Details
Automatic Small Mango Grape Fresh Juice beverage Bottling Filling Capping Machine
1. film and wooden

Portshanghai or other port Certificates and partners
FAQ
Q: How long is your delivery cycle after you order the machinery? A: Generally it is 40 working days.
Q: Do you have a relevant after-sales system? A: We have a Perfect after-sales system. 1: 12 months warranty. 2: Many-to-one service, we will solve basic problems through phone, email, whatsapp, WeChat and video calls. The operation manual will be sent with the machine or via e-mail. 3: If conditions permit, the engineer will go to the buyer's factory to install and test the machine, and train the buyer's staff on how to operate and maintain the machine.
Q: If I want to buy a machine, what information do I need to tell you? A: 1: What liquid do you want to fill? 2: What is the capacity and height of the bottle? 3: What is the output in one hour? 4: Related water quality analysis reports, etc. 5: Required mechanical voltage
Q:How to ensure that you deliver goods on time and ensure the safety of my funds? 1:We guarantee the on-time delivery and quality of the equipment you purchase through the credit insurance service. 2:With the letter of credit, you can easily lock in the delivery time. 3:After visiting the factory/video watching the factory, you can ensure the authenticity of our bank account.
Q:How do you ensure the quality of the machine? 1:To ensure the accuracy of parts. We are equipped with a variety of professional processing equipment, plus professional processing methods accumulated over the years. 2:Before the machine is assembled, each part is inspected by the inspector. 3:Assemble machines, all with masters with more than 5 years of work experience to operate. 4:After all the equipment is completed, we will connect all the machines and allow at least 12 hours for a complete production line to test its stability.
