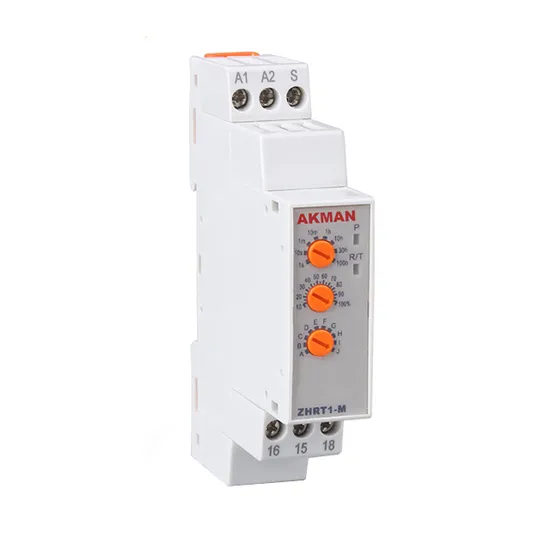

Time Delay Monitoring Relay 0.1s~100h
| US$10.73-11.29 | 10 Pieces (MOQ) |
Basic Info.
Model NO.
ZHRT1-M1
Phase
1
Electricity Type
DC12V, DC24V, AC/DV24~240V
Number of Pole
1
Load
Medium Power Relay
Protective Characteristics
Sealed Relay
Action Principle
Electronic Type
Size
Miniature
Type
Time Realy
Weight
0.1kg
Name
Zhrt1-M1/D12
Carton
100PCS
Carton Size
495*240*171mm
Transport Package
Carton Package
Specification
Size: 91*18*66mm
Trademark
AKMAN
Origin
Zhejiang China
HS Code
8536490000
Production Capacity
1000PCS/Week
Product Description
DC AC Time Delay Relay Monitoring RelayOperating Instructions for ZHRT1 Series Time Relay
Function Features
1.Compact in size, with a width of only 18mm that can be mounted onto 35mm symmetric DIN rail.
2.A wide time delay range of 0.1s... 100h. 3.Repeatable accuracy<=0.2% .
4.Built-in high-performance microcontroller with strong resistance to interference and high reliability.
5. Various rated supply voltage specifications available .
6.LED indicator lamp indicates "power ON" and "time delay"states .
Model and Connotation
Model Selection Table
| Model | Function | Rated supply voltage | Contact | Delay range |
| ZHRT1-M1 | A.Power on,relay off,delay on | DC12V DC24V AC110V AC220V AC380V AC/DC24V~240V | 1:1C/O, 2:2 C/O 2T:1C/O+1 instant C/O | 0.1s~100h |
| B.Power on,relay on,delay off | ||||
| C.Cycle delay OFF start | ||||
| D.Cycle delay ON start | ||||
| E.Signal on,relay on,signal off,relay delay off. | ||||
| F.Signal on,relay on,delay until off. | ||||
| H.Signal on,relay delay on,signal off.relay delay off. | ||||
| G.Signal off.relay on ,delay off. | ||||
| I.Signal off,relay status transition | ||||
| J.on power,relay delay to output 0.5 seconds pulse |
Technical Parameters
| Rated control supply voltage | DC12V,DC24V AC110V,AC220V,AC380V AC/DV 24V~240V 50/60Hz |
| Rated power consumption | AC:≤1.5VA DC: ≤1W |
| Delay range | 0.1s~100h |
| Setting accuracy | ≤5% |
| Repeat accuracy | ≤0.2% |
| Repeat power-on interval | ≥200ms |
| Electrical Life | 105 |
| Mechanical life | 106 |
| Altitube | ≤2000m |
| Contact configuration capacity(A) | 1C/0 8A;2 C/O 5A |
| IP Class | IP20 |
| Class of pollution | 3 |
| Use category | AC-15 |
| Contact capacity | Ue/le AC240V/1.5A,AC380V/0.95A |
| Output type | 1C/O;2C/O;1C/O+1 instant C/O |
| DIN rail Standard | Width:35mm(IEC/EN60715) |
Panel Diagram
Function diagramWiring Diagram
Diagram of Overall Dimensions Wiring Diagram
