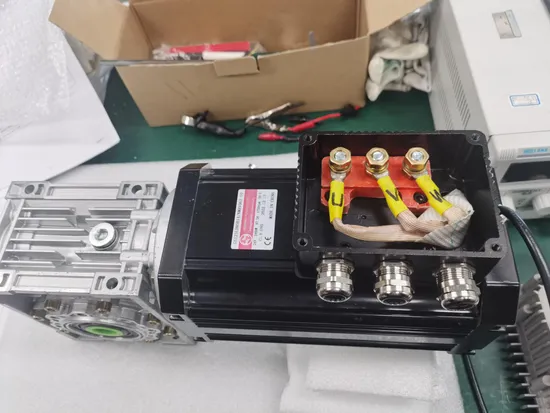

High Power 1800W-3000W BLDC Motor with Nmrv Worm Reducer Electric Vehicle Motors
Basic Info.
Model NO.
GS123L+NMRV063
Excitation Mode
Excited
Function
Control, Driving
Casing Protection
Protection Type
Number of Poles
2
Structure and Working Principle
Brushless
Type
ZSN
Certification
CE
Brand
GS
All Technical Data
Can Be Customized
Internal Drive
Yes
Motor Speed
1500-3000rpm
Rated Voltage
24-72V
Warranty
1 Year
Transport Package
Carton and Pallet
Specification
1800W-3000W
Trademark
GS
Origin
China
HS Code
85013100
Production Capacity
30000
Product Description
High Power 1800W-3000W BLDC Motor with NMRV Worm ReducerMotor Specification
| Motor Type | Rare-Earth PM Brushless DC Motor | |
| Model No. | GS123L | |
| Housing | 132×132mm | |
| Length | 240mm output shaft excluded | |
| Shaft | ≤25mm | |
| Voltage | DC:12V-300V AC:220/380V | |
| Speed | 800rpm-4000rpm | |
| Rated output power | Max 12N.m | |
| Peak Power | 36N.m | |
| Insulation Grade | F | |
| Ingress Protection | Max IP65 | |
| Phase | 3 Phase | |
| Hall angle | 120 Degree | |
| Standard Flange | IEC D80/90/100 B3/B5/B14 | |
| NMRV | PAM | N | M | P | D | |||||||||||
| IEC | 5 | 7.5 | 10 | 15 | 20 | 25 | 30 | 40 | 50 | 60 | 80 | 100 | ||||
| 025 | 56B14 | 50 | 65 | 80 | 9 | 9 | 9 | 9 | 9 | - | 9 | 9 | 9 | 9 | - | - |
| 030 | 63B5 | 95 | 115 | 140 | 11 | 11 | 11 | 11 | 11 | 11 | 11 | 11 | 11 | - | - | - |
| 63B14 | 60 | 75 | 90 | |||||||||||||
| 56B5 | 80 | 100 | 120 | 9 | 9 | 9 | 9 | 9 | 9 | 9 | 9 | 9 | 9 | 9 | - | |
| 56B14 | 50 | 65 | 80 | |||||||||||||
| 040 | 71B5 | 110 | 130 | 160 | 14 | 14 | 14 | 14 | 14 | 14 | 14 | 14 | - | - | - | - |
| 71B14 | 70 | 85 | 105 | |||||||||||||
| 63B5 | 95 | 115 | 140 | 11 | 11 | 11 | 11 | 11 | 11 | 11 | 11 | 11 | 11 | 11 | 11 | |
| 63B14 | 60 | 75 | 90 | |||||||||||||
| 56B5 | 80 | 100 | 120 | - | - | - | - | - | - | - | - | 9 | 9 | 9 | ||
| 050 | 80B5 | 130 | 165 | 200 | 19 | 19 | 19 | 19 | 19 | 19 | 19 | - | - | - | - | - |
| 80B14 | 80 | 100 | 120 | |||||||||||||
| 71B5 | 110 | 130 | 160 | 14 | 14 | 14 | 14 | 14 | 14 | 14 | 14 | 14 | 14 | 14 | - | |
| 71B14 | 70 | 85 | 105 | |||||||||||||
| 63B5 | 95 | 115 | 140 | - | - | - | - | - | - | - | 11 | 11 | 11 | 11 | 11 | |
| 063 | 90B5 | 130 | 165 | 200 | - | 24 | 24 | 24 | 24 | 24 | 24 | - | - | - | - | - |
| 90B14 | 95 | 115 | 140 | |||||||||||||
| 80B5 | 130 | 165 | 200 | - | 19 | 19 | 19 | 19 | 19 | 19 | 19 | 19 | 19 | - | - | |
| 80B14 | 80 | 100 | 120 | |||||||||||||
| 71B5 | 110 | 130 | 160 | - | - | - | - | - | - | - | 14 | 14 | 14 | 14 | 14 | |
| 71B14 | 70 | 85 | 105 | |||||||||||||
| 075 | 100/112B5 | 180 | 215 | 250 | - | 28 | 28 | 28 | - | - | - | - | - | - | - | - |
| 100/112B14 | 110 | 130 | 160 | |||||||||||||
| 90B5 | 130 | 165 | 200 | - | 24 | 24 | 24 | 24 | 24 | 24 | 24 | - | - | - | - | |
| 90B14 | 95 | 115 | 140 | |||||||||||||
| 80B5 | 130 | 165 | 200 | - | - | - | - | 19 | 19 | 19 | 19 | 19 | 19 | 19 | 19 | |
| 80B14 | 80 | 100 | 120 | |||||||||||||
| 71B5 | 110 | 130 | 160 | - | - | - | - | - | - | - | - | 14 | 14 | 14 | 14 | |
| 090 | 100/112B5 | 180 | 215 | 250 | - | 28 | 28 | 28 | 28 | 28 | 28 | - | - | - | - | - |
| 100/112B14 | 110 | 130 | 160 | |||||||||||||
| 90B5 | 130 | 165 | 200 | - | 24 | 24 | 24 | 24 | 24 | 24 | 24 | 24 | 24 | - | - | |
| 90B14 | 95 | 115 | 140 | |||||||||||||
| 80B5 | 130 | 165 | 200 | - | - | - | - | - | - | - | 19 | 19 | 19 | 19 | 19 | |
| 80B14 | 80 | 100 | 120 | |||||||||||||
If this model is not what you want, please freely tell us about your requirement. We will provide you with a suitable motor solution and price soon.
FAQ
1 Q: What's your MOQ?
A: 1unit is ok for different types.
2 Q: What about your warranty?
A: One year.
3 Q: Do you provide OEM service with customer-logo?
A: Yes, we could do OEM orders, but we mainly focus on our own brand.
4 Q: How about your payment terms ?
A: TT, western union and paypal. 100% payment in advanced for orders less $5,000. 30% deposit and balance before delivery for orders over $5,000.
5 Q: How about your packing ?
A: Carton, Plywood case. If you need more, we can pack all goods with pallet
6 Q: What information should be given, if I buy from you ?
A: Rated power, gearbox ratio, input speed, mounting position. More details, better!
7 Q: How do you deliver the order?
A: We will compare and choose the most suitable ways of delivery by sea, air or express courier.
Warmly welcome your inquiries !
