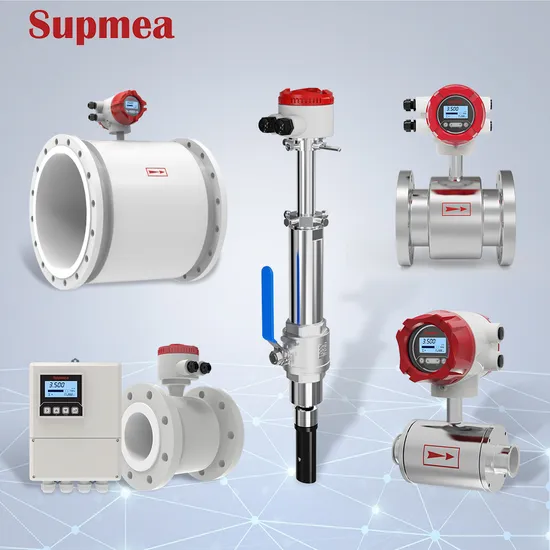

Liquid Sewage Water Electromagnetic Magnetic Flow Meter Flowmeter

Product Description

Product Description Accept OEM customization, Multi-language Flow meter customization.
Electromagnetic flow meter have been used throughout industries for more than 60 years. These meters are applicable for all
conductive liquids, such as:Domestic water, industrial water, raw water, ground water, urban sewage, industrial wastewater, the
processed neutral pulp, pulp slurry, etc

Name	magnetic Flow Meter
Nominal diameter	15-2000mm
Maximum flow speed	15m/s
Accuracy	±0.5%, ±0.2%
Medium conductivity	≥5uS/cm,Actual conductivity≥30uS/cm
Nominal pressure	4.0MPa(DN0-150)
	1.6MPa(DN200-600)
	1.0MPa(DN700-1200)
	0.6MPa(DN400-2000)
Output signal	4-20mA;Pulse
Supply voltage	110/220VAC(100-240VAC),50Hz/60Hz;24VDC ±10%
Electrode material	stainless steel coated with carbonized tungsten,
	stainless steel containing Mo
	Hastelloy C
	Hastelloy B
	Titanium
	Tantalum
	Platinum-iridium alloy.
Communication	RS-485,Support standard Modbus-RTU protocol;GPRS
Number of electrodes	Standard configuration 3-4 electrodes (two measuring electrodes plus a grounding electrode)
Grounding ring	Stainless steel
Flange material	Carbon steel
Flange material	Standard carbon steel and stainless steel are needed to be customized
Housing material	Standard carbon steel and stainless steel are needed to be customized
Level of protection	Remote type flow meter IP68
	Compact type flow meter IP65
Cable length	10m standard configuration connecting line, optional 15m, 20m, 25m, 30m. (Remote type)
Maximum fluid temperature:	Compact type: 60ºC
	Remote type: 150ºC
	Neoprene 80ºC; 120ºC
	Polyurethane 70ºC

Company Profile Packing & Delivery:
Electromagnetic flow meter is packed in cartons ,and wooden boxes (from DN80)
Lead time : Most products within 7 working days(if have stock, could be sent same day), customized product would be longer
Delivery process:
1.Use customer's own delivery account, or we help to choose a suitable one
(Usually use FedEx, Ups, DHL, TNT, EMS,etc)
2.Delivery time is 2-7 working days, some products have stock in Malaysia.
3.Help to do the destination customs clearance Overseas Service Center Address:
Singapore/ Philippines/ Malaysia/ Kroea/ Indonesia/ Germany/ India
FAQ FAQ:
Q: How long will you give me the reply?
A: we will contact you in 3 hours as soon as we can.
Q:Could I visit your factory?
A: Sincerely invite you to visit our factory,Our factory and office are all in Hangzhou,Zhejiang.
Q: Do you provide samples ?
A: Yes,we have materials in stock to help you to get the samples as soon as we can.
Q: How about the quality of the managements ?
A: We have a complete quality control system , all of our products will be fully pre-inspection by QC departments before shipping to you . We have the certification of ISO,CE we could send the certification test of our company to you.
Q: What is your terms of payment ?
A: We could accept T/T, Paypal, WU ,Credit Assurance
Q: What is the warranty for your product ?
A: Warranty: 2 years, Lifetime maintenance.
Q: How soon can you arrange the production?
A: Once getting your product confirmation and receiving your payment, we will arrange the production immediately. For some products we have it in stock.
Q: Could you provide me the shortest lead time?
A: For somre standard products we have it in stock . Pls tell me your detailed requirements, we will send to you as early as we can.
