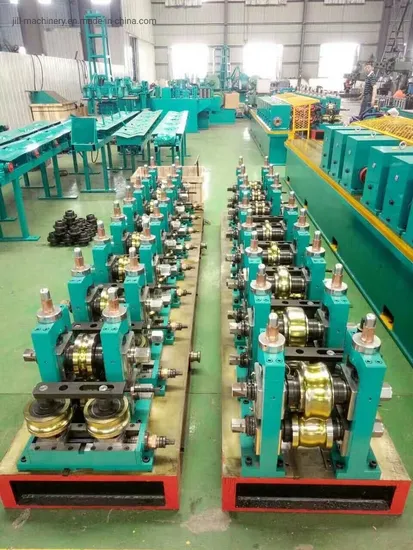

Refrigerator Condenser Zinc Cooper Coating Tube Making Machine

Product Description

Refrigerator Condenser Zinc Cooper Coating Tube Making Machine
Summary
16B portal precision high-frequency straight seam steel strip welded pipe making machine unit, is specialized equipment to produce small pore diameter high frequency straight seam welded pipe for refrigeration industry withΦ7.5-Φ25mm and wall thickness of δ0.3-1.0mm. Through design optimization, best materials choice, and accurately fabrication, the whole set of machine unit can reach same precision level as the foreign advanced ones. This machine unit configuration starts from decoiler and ends by winding up. Within suitable range of pipe diameter and wall thickness, pipe production speed can be adjusted accordingly
Applicable material
Low carbon content steel strip and low alloy steel strip with brand-name of SPCE, SPCD, St14, 08AL and so on of 0.002~0.08% carbon content.
The thickness of steel strip: 0.3-1.0mm
The width of steel strip: 23-78mm
I.D. of steel coil: Φ350-Φ450mm
O.D. of steel coil: Φ1400mm
Dimension range of processing steel pipe: O.D.: Φ7.5~Φ25mm
Wall thickness: δ0.3-1.0mm
Accuracy tolerance: ≤0.05 mm
Product (steel pipe) production process flow:
decoiling → shearing and butt welding → cleaning →accumulator → passively leveling → forming milling → high frequency welding(water cooling+nitrogen cooling) → remove burr outside welding seam→ cooling → sizing → winding up

Drawing Line (Double-head)

This machine adopts AC speed-adjusting control system, with stable electric current. By this machine, steel pipe can be drawn into small size one from big size one through drawing head unit, thus expected pipe diameter will be achieved. It's through the drawing head unit that 8 mm diameter steel pipe will be reduced in diameter via tungsten steel die of different diameter, and steel pipes with different diameter will be hereby obtained. No scratch on the pipe blank surface, checked by precision instrument.

Brief Introduction to WZT Industrial Frequency Annealing Line
This machine adopts microcomputer constant current to control the system, with stable electric current. It's suitable for annealing of Bundy steel pipes. (After Bundy pipe is drawn and changed in diameter by high frequency, there will be changes ocurred with the atomic arrangement, thus through annealing process, to increase the pipe temperature rapidly to around 723ºC, and keep this temperature for some time, then gradually water cool down, annealing result will be achieved.)
Our partners
Certificate display
Exhibition display
Packing and shipping
FAQ
1. Are you manufacturer or trading company?
We are manufacturer with 30 years experience , Which is located in the base place of this industry Yangzhou city Jiangsu Province ,China .
2. What shall we do if don't know how to operate your machine?
We can dispatch our engineers to your country and you can also send your engineers to our factory for learning operation. Besides, there are detailed installation and operating instructions attached, We have telephone and email support at 24 hours per day.
3. What are your payment terms?
We support T/T, L/C, D/P, D/A, Western Union and so on. TT, 30% in advance, 70% balance before the shipment.
4. How long is the warranty period of your machine?
1 year .
