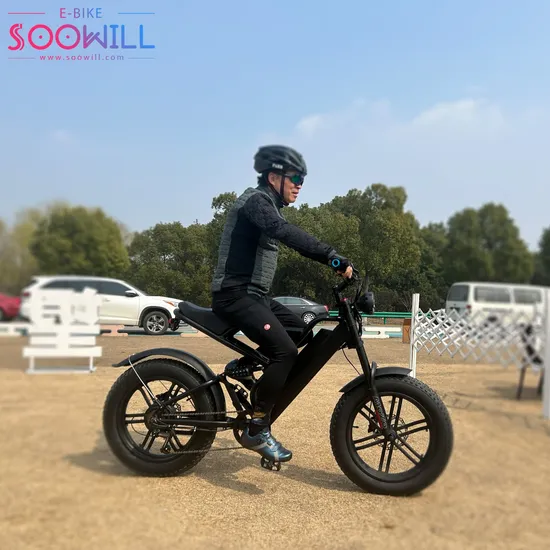

Aluminum Alloy Frame 48V13ah 8-Speed Gears Electric Bike 3 Shock Mitigation System
Basic Info.
Model NO.
SW-FT6-023
Wattage
500W
Battery Voltage
48V
Battery Type
Lithium Battery
Wheel Size
20"
Motor
48V 500W Rear Integrated Wheel Motor
Frame Material
Aluminum Alloy
Certification
ISO
Folded
Unfolded
Max Speed
40km/H
Range per Power
>80km by PAS
Useage
Mountain Bike;Daily Commuting;Trekking;Travelling
Frame
Aluminum Alloy
Front Fork
Mozo Double Shoulder Shock Absorber, Al-Alloy
Brake
Hydraulic Disc Brake with Power Cutout
Sensor
Torque Sensor
Shock Absorbers
Mechanical Shock Absorber
Controller
48V 6 Tube Foc Controller
Speed Gear
7-Speed Gears
Battery
48V13ah
Battery Casing
Aluminum Alloy
Power Supply
Lithium Battery
Charger
54.6V 2A European Standard/American Standard
Tire Width
20*4.0 Black off-Road Tire 30tpi
Max Load
120kg
OEM Service
Yes
Transport Package
Strong Mater Carton
Specification
1740*310*1000mm
Trademark
SOOWILL
Origin
China(Mainland) Jiangsu
HS Code
8711600010
Production Capacity
80000PCS/Year
Packaging & Delivery
Package Size
174.00cm * 31.00cm * 100.00cm
Package Gross Weight
45.000kg
Product Description
| New Arrival 48V 13AH Lithium battery power rides up to 80KM distance by PAS. Truckrun 48V500W rear integrated wheel motor |
| Product Name | 20*4 Fat Tire Electric Mountain Bike |
| Model | SW-FT6 |
| Main Components | |
| Motor | Truckrun 48V500W rear integrated wheel motor |
| Controller | 48V 6 tube FOC controller |
| Display | LCD display |
| Sensor | Torque sensor |
| Frame | Aluminum alloy |
| Aluminum alloy parts | Handle/Stem/Grips/Parking rack/Battery downtube/Battery casing |
| Front fork | MOZO Double shoulder shock absorber,aluminum front fork,hydraulic lock |
| Shock Absorbers | Mechanical shock absorber |
| Hydraulic disc brake | Hydraulic disc brake with power cutout |
| Tire | 20*4.0 black off-road tire 30TPI |
| Roulette crank | 42T aluminum alloy |
| Pedal | WELLGO aluminum alloy Pedal with reflector |
| Flywheel | TZ500-7 7-speed threaded flywheel 14-28T |
| Rear derailleur | Rear derailleur 7-speed TY21B |
| Right thumb shift | Thumb shifter SL-M3157RC,single 7 speed |
| Chain | KMC 7S, variable speed chain |
| Electronic handlebar | High sensitivity single speed thumb dial |
| Integrated parts | Rims/Spokes/Front hub |
| Mudguard | Adjustable |
| Saddle | Comfortable large saddle |
| Headlight | Antique LED headlights |
| Taillight | LED taillight |
| Battery | 48V13Ah |
| Charger | 54.6V 2A European standard/American standard two-core 100-240V DC2.1 |
| Charging time | 4-6hours |
| Performance | |
| Max Speed | 40Km/h |
| Range | >80Km by PAS |
| Max Load | 120Kg |
| N.W/G.W | 37Kg/45Kg |
| Carton Size | 1740*310*1000mm |
| Loading Q'ty | 40HQ FCL: 118pcs |
| Others | |
| HS CODE | 8711600010 |
| Quality Guarantee | 1.The guarantee for frame is 5 years. 2.Battery decay not less than 80% within 2 years;if damaged by water,no warranty. 3.other parts for 3 months,if damaged by people,no warranty. |
| Packing & Delivery |
| To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided. 1.Neutral Package 2.Inner package: high quality bubble film; 3.Outer package: strong mater carton with shipping marks for electric bike |
| Zhangjiagang Soowill International Co., Ltd Zhangjiagang Soowill International Co., Ltd was founded in 2020, located in Zhangjiagang, Suzhou City, Jiangsu Province, close to Shanghai Port and Ningbo Port. It mainly exports Electric bikes, Foldable electric bikes, Electric mountain bikes, Electric motorcycles, Portable electric scooters, Electric tricycles, Electric cargo bikes, and bike accessories to all over the world. We have our own factory located in Suzhou Industrial Park, and our professional design team keeps researching and developing new products to provide the best goods in this industry, ensuring our products can meet the ever-changing economic and social needs. Our R&D team, QC team, experienced technician and Sales & Service & logistics team can ensure the good quality of products and provide customers with best service. Soowill strives to build a multi-brand and multi-element E-commerce platform to meet the needs of customers of different countries and different consumer preferences. We are searching business cooperation partners from all over the world, if you have the willingness and ability please leave message to us, if you need some help from us for better business running in China, just contact us directly. We strive to make products, services, even our business partners all as stars! |
| FAQ 1.Q:Where are you? Can I visit you? A: We based in Suzhou city,Jiangsu province,China. Welcome to visit our factory at anytime. 2.Q:Why choose you? A: Strong quality control : All the components should be checked carefully before assembling, thus, we can make sure that the broken or deficient components will not be fixed to the electric bikes.Each electric bikes will be strictly inspected before packing and shipping out to insure that the could be satisfied with you. 3.Q: Can I get some samples? A:we offer sample for quality check. Considering electric bike as big item with certain value,we don't offer free sample and transportation fee is not contained in sample price.If you just need a sample first , we can make one for you and then send it by air. Only Express is acceptable, otherwise the battery can not to be sent by air. 4.Q:What's the delivery time? A: It usually takes about 15-35 working days But the exact delivery time might be different for different orders or at different time.Once we confirmed all details of order, we'll put all source into it. 5.Q:Can I mix different models in one container? A: Yes, different models can be mixed in one container. 6.Q:what kind of payment does your company support? A: T/T, 100% L/C at sight accepted if you have other payment,please contact me. 7.What's the advantage of electric bike? You can not only ride it as ordinary bike but also choose battery powered mode when you get tired, and you don't need to get a license and pay parking fee. Compared to automobiles or motorcycle engines, an electric bike is virtually silent. |
