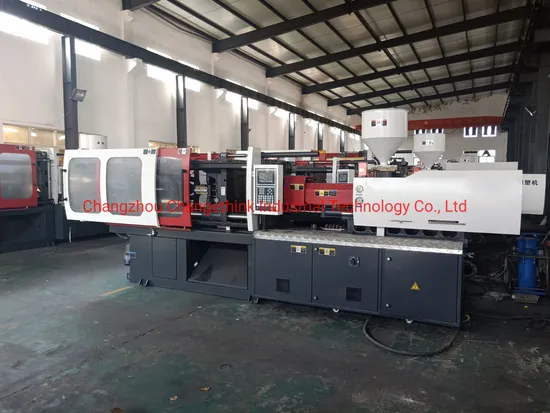

Lty2500 Pet Preform Plastic Injection Molding Machine
| US$35,000.00 | 1 SET (MOQ) |
Basic Info.
Model NO.
LTY-PET-2500
Type
Plastic Product Injection
Structure
Horizontal
Plastic Type
Thermoplastic
Plasticizing Way
Screw Type
Clamping Way
Hydraulic & Mechanical
Automation
Automatic
Computerized
Computerized
Certification
CE, ISO9001:2008, GMP, QS
Transport Package
Wrap Film Packing Into The Container
Specification
250T
Trademark
LOYALTY
Origin
China
HS Code
8477101090
Production Capacity
1000sets/Years
Product Description
| SPECIFICATION | LTY2500PET | ||||
| A | B | C | D | ||
| INJECTION UNIT | |||||
| SCREW DIAMETER | mm | 50 | 55 | 60 | |
| SCREW L/D RATIO | L/D | 25 | 25 | 25 | |
| SHOT VOLUME(THEORETICAL) | cm3 | 455 | 550 | 655 | |
| INJECTION WEIGHT(PS) | g | 416 | 503 | 600 | |
| INJECTION RATE | g/s | 187 | 227 | 270 | |
| INJECTION PRESSURE | MPa | 205 | 169 | 142 | |
| SCREW SPEED | rpm | 180 | |||
| CLAMPING UNIT | |||||
| CLAMP FORCE | KN | 2500 | |||
| OPEN STROKE | mm | 540 | |||
| SPACE BETWEEN TIE BARS(W*H) | mm | 580x580 | |||
| MAX.MOULD HEIGHT | mm | 550 | |||
| MIN.MOULD HEIGHT | mm | 200 | |||
| EJECTOR STROKE | mm | 150 | |||
| EJECTOR FORCE | KN | 70 | |||
| OTHER | |||||
| MAX.PUMP PRESSURE | MPa | 16 | |||
| PUMP MOTOR POWER | kW | 22 | |||
| HEATING POWER | kW | 15 | |||
| MACHINE DIMENSION(L*W*H) | m | 6.14x1.65x2.25 | |||
| OILTANK CUBAGE | L | 380 | |||
| MACHINE WEIGHT | t | 8.3 | |||
