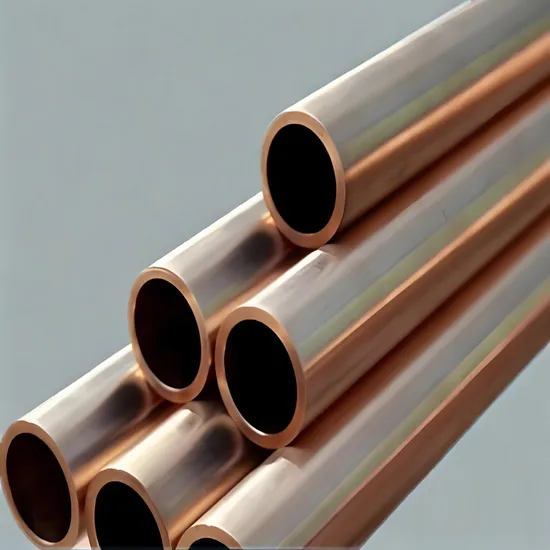

Best Quality Beryllium Copper Tube for Aerospace C17200/C17510/C17300

Product Description

Product Description Specification

Leaded Beryllium Copper (C17200)

Chemical composition(%)

Be	1.8-2.1
Co	0.3(min)
Si	0.2(max)
Al	0.2(max)
Cu	Balance

Typical applications

Oilfield tools

Aerospace land gears

Robotic welding

Spot weld

Mold making application

Electrical shafts

Nonsparking safety tools

Welding equipment, Flexible metal hose

Fabrication properties

Technique	Suitability
Soldering	Good
Brazing	Good
Oxyacetylene welding	Not recommended
Gas shielded Arc welding	Good
Coated metal Arc welding	Good
Spot weld	Good
Seam weld	Fair

Butt weld	Fair
Capacity for being cold-worked	Good
Capacity for being hot-formed	Excellent
Foreseeability rating	40
Machinability rating	20

Beryllium Copper or Copper Beryllium (CuBe2) introduction

Beryllium copper (BeCu), also known as copper beryllium (CuBe), beryllium bronze, and spring copper, is a copper alloy with 0.5-3% beryllium and sometimes with other alloying elements. Beryllium copper combines high strength with non-magnetic and non-sparking qualities. It has excellent metalworking, forming, and machining qualities. It has many specialized applications in tools for hazardous environments, musical instruments, precision measurement devices, bullets, and aerospace. Beryllium-containing alloys create an inhalation hazard during manufacturing due to their toxic properties. PROPERTIES : Beryllium copper is a ductile, weldable, and machinable alloy. It is resistant to non-oxidizing acids (for example, hydrochloric acid, or carbonic acid), to plastic decomposition products, to abrasive wear, and to galling. Furthermore, it can be heat-treated to improve its strength, durability, and electrical conductivity. Beryllium copper attains the highest strength (to 1,400 MPa (200,000 psi)) of any copper-based alloy ALLOYS: Alloy 25 beryllium copper (C17200 & C17300) is an age-hardening alloy that attains the highest strength of any copper base alloy. It may be age-hardened after forming into springs, intricate forms, or complex shapes. It has superb spring properties, corrosion resistance and stability as well as good conductivity and low creep. Tempered beryllium copper is Alloy 25 (C17200 & C17300) which has been age-hardened and cold-drawn. No further heat treatment is necessary except for a possible light stress relief. It is sufficiently ductile to wind on its own diameter and can be formed into springs and most shapes. Tempered wire is most useful where the properties of beryllium copper are desired, but age hardening of finished parts is not practical. Alloys 3 (C17510) and 10 (C17500) beryllium copper are age-hardenable and provide excellent electrical conductivity in combination with good physical properties and endurance strength. Provided in either the age-hardenable condition or as tempered ware, they are used in springs and wire forms which are electrical conductors, or where retention of properties at elevated temperatures is important. High-strength beryllium copper alloys contain up to 2.7% of beryllium (cast), or 1.6-2% of beryllium with about 0.3% cobalt (wrought). The high mechanical strength is achieved by precipitation hardening or age hardening. The thermal conductivity of these alloys lies between steel and aluminum. The cast alloys are frequently used as material for injection molds. The wrought alloys are designated by UNS as C17200 to C17400, the cast alloys are C82000 to C82800. The hardening process requires rapid cooling of the annealed metal, resulting in a solid-state solution of beryllium in copper, which is then kept at 200-460 °C for at least an hour, facilitating precipitation of metastable beryllide crystals in the copper matrix. Averaging is avoided, as an equilibrium phase forms that depletes the beryllide crystals and reduces the strength enhancement. The beryllides are similar in both cast and wrought alloys. High conductivity beryllium copper alloys contain up to 0.7% beryllium, together with some nickel and cobalt. Their thermal conductivity is better than of aluminium, only a bit less than pure copper. They are usually used as electric contacts in connectors.

Company Profile RICH BASE TECHNOLOGY Co., Limited was founded in 2007. We are a professional and forerunner in China's copper alloy
R&D and manufacturing. Our management team has nearly 20 year's experiences in the field of copper alloy manufacturing
and CNC machining.
The copper alloys we supply include
Chromium zirconium copper(C18150),
Chromium copper(C18200),
Nickel silicon chromium copper (C18000),
Nickel beryllium copper(C17510, C17500),
Beryllium copper(C17200, C17300),
Zirconium Copper(C15000, C15100),
Tellurium Copper (C14500),
Oxygen free copper (C10100/C10200),
copper nickel alloys(C79200/C79400) etc...The forms we manufacture include Round bars, square bars, rectangular bars, hexagonal bars, and different types of plates and sheets per customers' requirements. We not only manufacture different sizes/shapes of copper alloys, we also manufacture finished products namely cap tips/contact tips/seam wheels/resistant electrodes, and other customized products based on our alloy, please contact us for your requirements. With more than 20 years of copper alloy R&D and manufacturing experiences, coupled with a full range of manufacturing equipment. Our manufacturing process starts with raw materials and ends with customized shapes/forms of copper alloys. This enables us to supply high-quality copper alloys at very competitive prices. Over the past years, we have earned a worldwide reputation for high-quality materials at competitive prices, quick deliveries, and superior services. Our materials are being exported to Europe, North America, North-east Asia, South-east Asia etc. Quality is an essential part of our manufacturing operations, our highly trained quality assurance team will do all necessary testings and inspections to make sure that all materials meet customers' requirements and expectations before shipping the materials to our customers. Our copper alloys are mainly used in the automobile industry, aerospace industry, aircraft industry, appliance industry, consumer electronics, electronic equipment, electrical connectors, electrical equipment, foundry products, industrial machinery, machine tools, resistance welding industry, telecommunication industry, transportation (high-speed train), etc. Our materials are used by Volkswagon, Toyota, Hongda, Ford, China high-speed trains, etc. For any inquiry, please contact our sales representative.
