Da-750sqc CNC Engraving and Milling Machine

Product Description

Product Description
The DA-750SQC is a kind of CNC engraving and milling machine. It is a numerical control machine tool corresponding to the traditional engraving machine. Its' advantage is that it can be used for carving and also can be used for milling. It is a high efficiency and high precision CNC machine tool. CNC engraving and milling machine is on the basis of engraving machine to increase the spindle, servo motor powerand bed bearing force. The speed and the precision of this machine is very high. It generally known as high speed and precision machine with stronger cutting ability and very high processing accuracy. It can also directly process materials with hardness above HRC60 and form them once.

Main Features
Worktable size: 700*500mm Maximum load capability: 50kg X/Y/Z working stroke: 560*500*100mm Positioning accuracy: ±0.008/300mm Spindle speed range: 60000RPM Machine dimension: 1600*1460*1750mm Detailed Photos
Product Parameters

Model	unit	DA-750SQC
Worktable Size	mm	700*500
X/Y/Z Working Stroke	mm	560*500*100
Worktable Load Capability	kg	50
Spindle Nose To Worktable	mm	150/200(Optional)
Positioning Accuracy	mm	0.008/300
Repeatability Accuracy	mm	0.005
Spindle Power	KM	1.8Kw(Optional)
Spindle Speed Range	RPM	60000
Tools Change form		E-pneumatic(Manual mode [Optional])
Tools Specification		∅6,∅4,∅3.175 reducing sleeve
Max Rapid Traverse	m/min	15
Max Cutting Feed Rate	m/min	9
Total Power	KW	4.5
Machine Weight	kg	1600

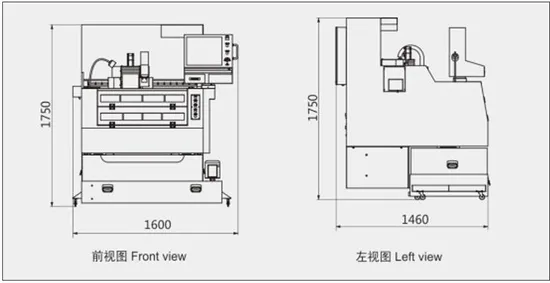

Machine Dimension	mm	1600*1460*1750
Workpiece Cooling Mode		Mist Spray

Company Profile

FAQ
1. Is it all right to make customer's own brand name?A: yes. we are available with OEM2. Are you a manufactuer or trading company?A:We are the manufacturer3. Can you do the design for us?A: yes. if you want a different control system design or higher column , we are available.4 . What is your terms of delivery?A: FOB shenzhen.5. What's your payment term?A: T/T OR L/C at sight.
